Apollo™ LD14103BE11A

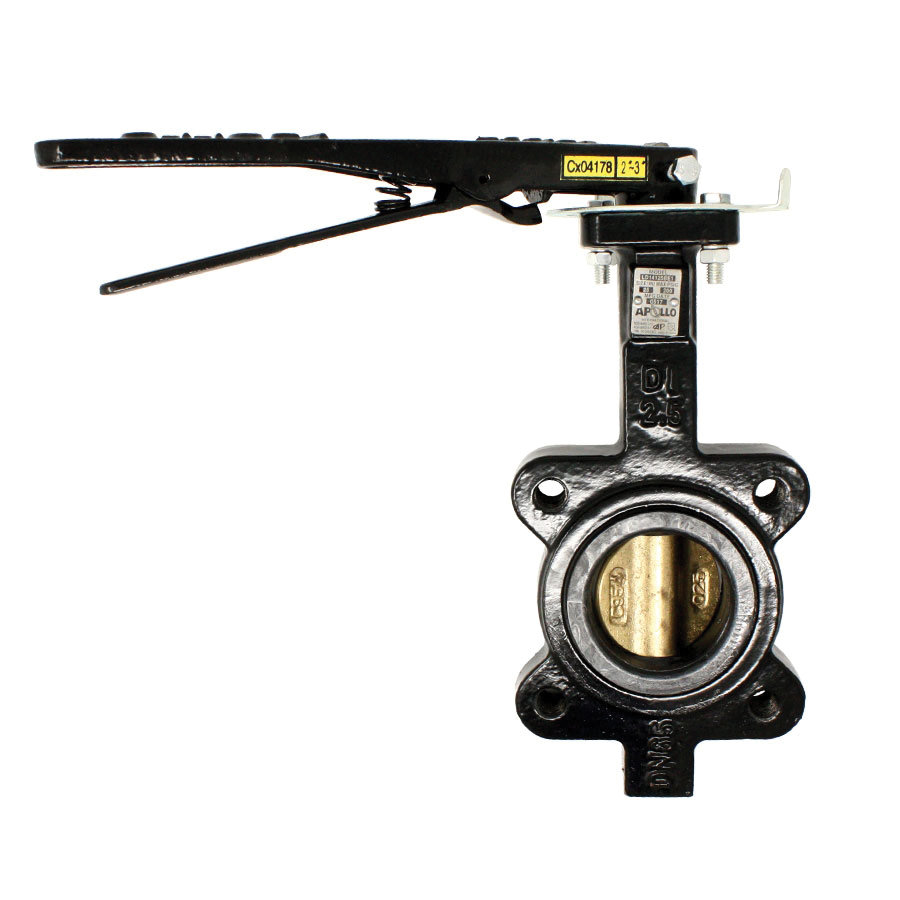

Apollo™ Apollo International™ LD-141-03-B-E-1-1-A LD141 Resilient Seated Lug Style Butterfly Valve, 3 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods

CBPN:166068

UPC:670750958618

MPN:LD14103BE11A

Price:
$169.36 / EA
Prop 65:

DESCRIPTION

Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 3 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.13 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM

Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.

Apollo™ Apollo International™ LD-141-03-B-E-1-1-A LD141 Resilient Seated Lug Style Butterfly Valve, 3 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, EPDM Softgoods

CBPN:166068

MPN:LD14103BE11A

UPC:670750958618

Price:
$169.36 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 3 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.13 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM

Apollo International™ LD141 series ductile iron butterfly valves are ideal for use in industrial and commercial/HVAC/mechanical applications. The LD141 series is a companion lug style.

Specifications

BrandApollo™
SeriesLD141
TypeResilient Seated Lug Style
Body MaterialDuctile Iron
Domestic/ImportImport
End StyleLug
Nominal Size3 in
Temperature Rating-20 to 250 deg F Intermittent/225 deg F Continuous
Actuator Type10-Position Handle
Pressure Class125/150 lb
Softgoods MaterialEPDM
Disc MaterialAluminum Bronze
Top to Inlet Center7.13 in
Weight12.85 lbs
Standards ApprovalsANSI Specified,API 609,ASTM A536 Body,AWWA C-504,CRN OC/2102CL,Federal Public Law 111-380,ANSI 3rd Party Approved,MSS SP67-2002a,NSF/ANSI 372 Lead-Free,NSF/ANSI 61

Item Features

  • Compatible with ANSI 125 lb and 150 lb flanges
  • ISO 5211 top plate allows choice of Apollo™ pneumatic actuators and gear operators
  • LD141 series Suitable for end of line service (bidirectional dead end service) to rated pressure (2 to 24 in)
  • 3 to 24 in meet performance requirements of AWWA C-504
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • ASTM A276 type 416 stainless steel standard shaft
  • Buna-N stem seal and glass reinforced epoxy resin bushing
  • Black EPDM seat
  • Valves are full lug with tapped lugs, to ANSI 125/150 drilling
  • The face-to-face dimensions were designed to comply with MSS SP-67 and API 609
  • Through shaft assures positive disc positioning and dependable performance
  • Weather seal shaft equipped with weather seal to prevent external media from entering the shaft bore
  • Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
  • Three bushings supports shaft at three locations to enhance shaft alignment and absorb actuator side thrusts
  • Factory tested to 110% of full rated pressure in both directions before shipping
  • Profiled disc design precision machined disc edge creates Bubble tight shut-off, primary seal
  • Shaft seal the shaft Dia is greater than the Dia of the seat's shaft hole creating a robust shaft seal
  • All valves are 100% factory tested before shipping
