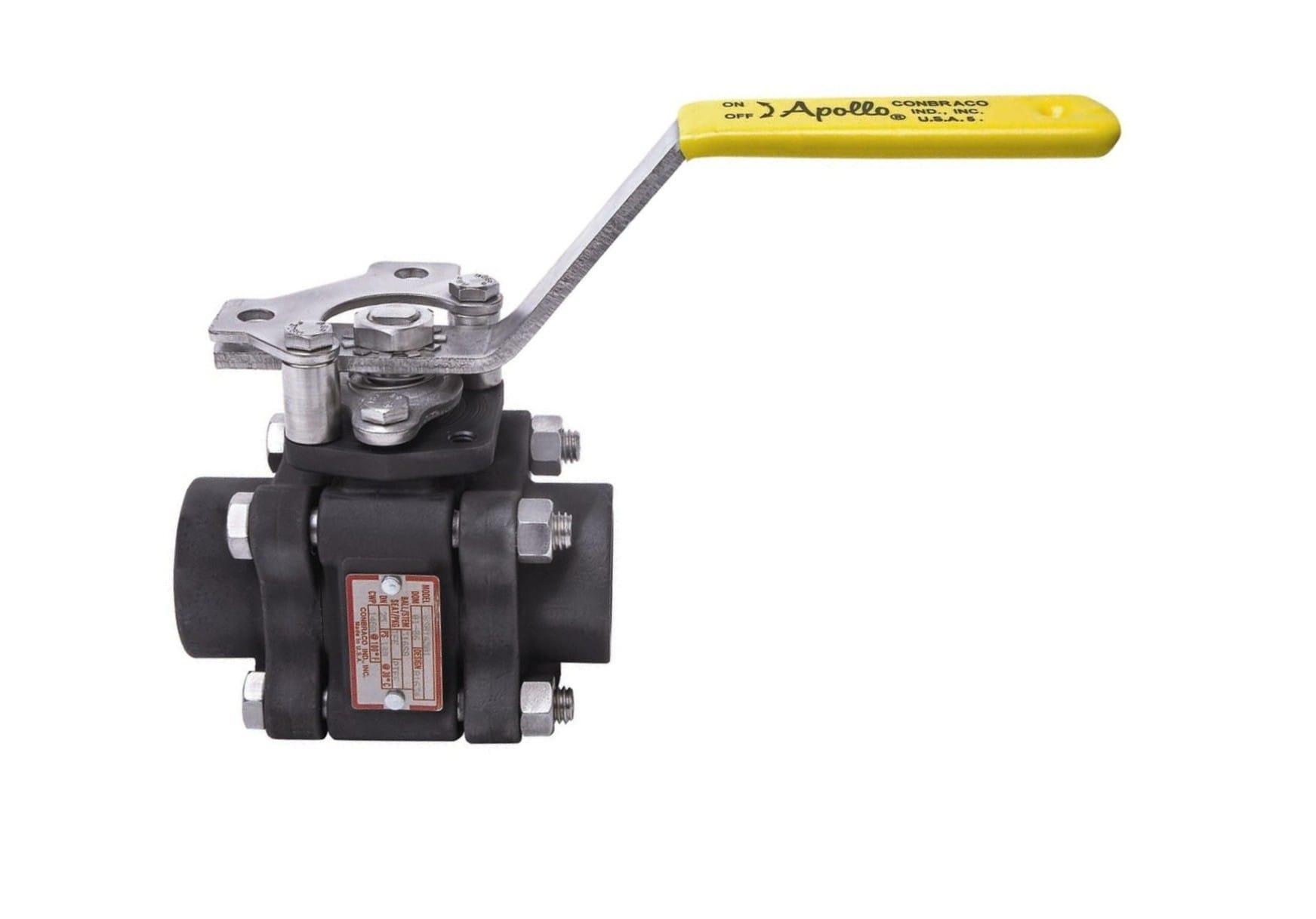

Apollo™ 83A14701 83A-140 3-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN: 30773
UPC:670750060892
MPN:83A-147-01
Price:
$601.65 / EA
Prop 65:
DESCRIPTION
Apollo™ 83A14701, Ball Valve, 3-Piece, Series: 83A-140, 1-1/2 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Full Port, Media: Gas/Water, 1-1/2 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.98 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 83A14701 83A-140 3-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Full Port, PTFE/RPTFE Softgoods, Domestic
CBPN: 30773
MPN:83A-147-01
UPC:670750060892
Price:
$601.65 / EA
Prop 65:
DESCRIPTION
Apollo™ 83A14701, Ball Valve, 3-Piece, Series: 83A-140, 1-1/2 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Full Port, Media: Gas/Water, 1-1/2 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.98 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 14.3 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Rating: 1500 psi CWP
Body Material: Carbon Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.98 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1-1/2 in
Series: 83A-140
Top to Inlet Center: 4.7 in
Trim Material: Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B1.20.1 | MSS SP-110 | MSS SP-25 | MR0103 (2012) | NACE MR0175 (2000) | PROP65: Cancer and Reproductive Harm
Item Features
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in hg
- 150 psig saturated steam
- PTFE packing and RPTFE body gasket
