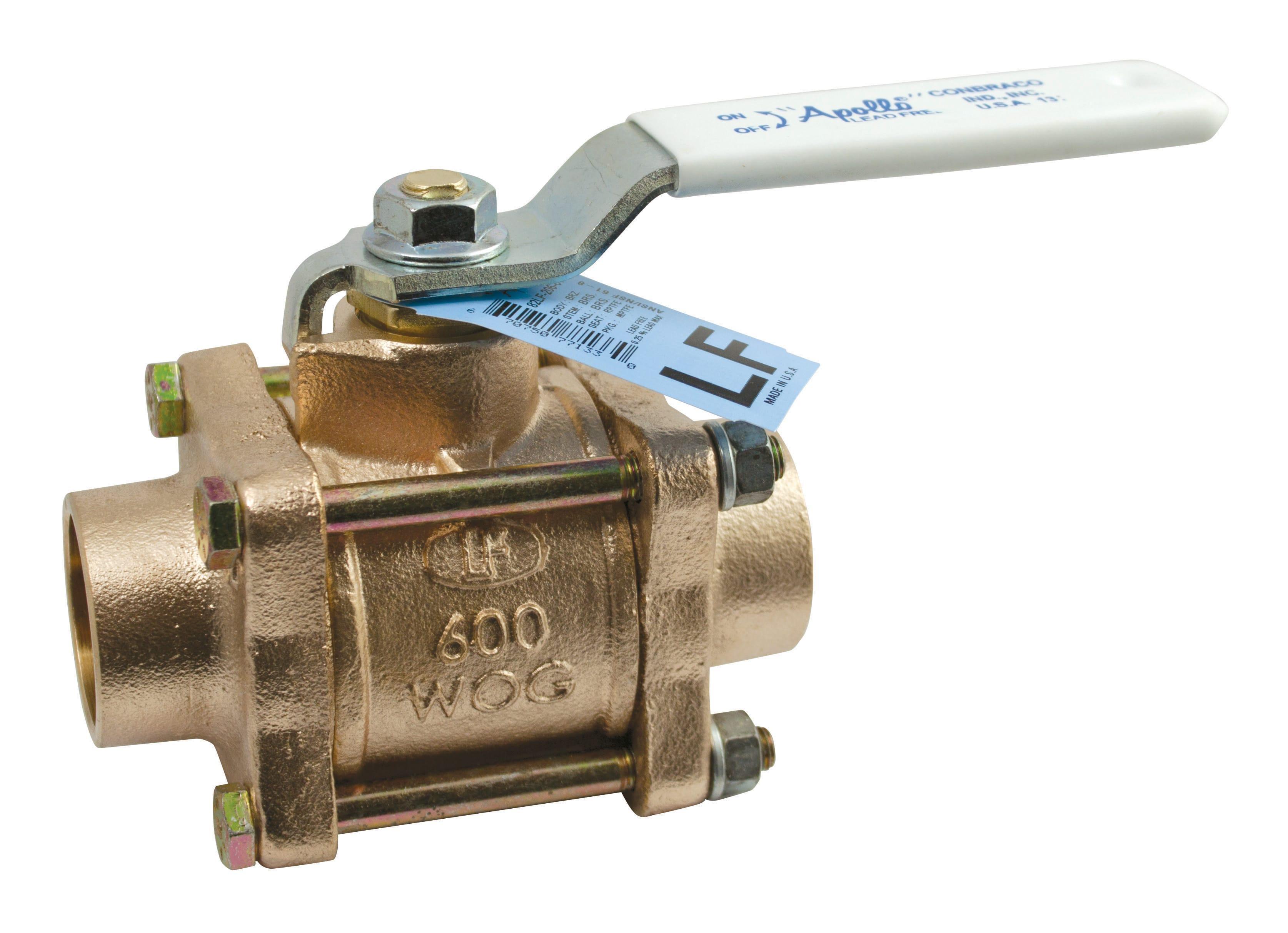

Apollo™ 82LF24601 82LF-240 3-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Lead Free Bronze Body, Full Port, MPTFE Softgoods, Domestic
CBPN: 179874
UPC:670750771453
MPN:82LF-246-01
Price:
$449.31 / EA
Prop 65:
DESCRIPTION
Apollo™ 82LF24601, Ball Valve, 3-Piece, Series: 82LF-240, 1-1/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 400 deg F, Full Port, Standard Lever Actuator, 316 Stainless Steel Ball, 4-3/4 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MPTFE Softgoods, Domestic
The Apollo™ 82LF solder series offers the same rugged features as the standard 82 series with the added advantage of lead free materials. Ideal for solder installations where ease of maintenance and in-line serviceability are required. SAE grade body bolts are standard. Not suitable for brazing.
Apollo™ 82LF24601 82LF-240 3-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Lead Free Bronze Body, Full Port, MPTFE Softgoods, Domestic
CBPN: 179874
MPN:82LF-246-01
UPC:670750771453
Price:
$449.31 / EA
Prop 65:
DESCRIPTION
Apollo™ 82LF24601, Ball Valve, 3-Piece, Series: 82LF-240, 1-1/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 400 deg F, Full Port, Standard Lever Actuator, 316 Stainless Steel Ball, 4-3/4 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MPTFE Softgoods, Domestic
The Apollo™ 82LF solder series offers the same rugged features as the standard 82 series with the added advantage of lead free materials. Ideal for solder installations where ease of maintenance and in-line serviceability are required. SAE grade body bolts are standard. Not suitable for brazing.
Specifications
Brand: Apollo™
Weight: 5.62 lbs
Nominal Size: 1-1/4 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Lead Free Bronze
Port Type: Full
Softgoods Material: MPTFE
Actuator Type: Standard Lever
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4-3/4 in
Manufacturer Name: Apollo Conbraco
Series: 82LF-240
Temperature Rating: 400 deg F
Top to Inlet Center: 2.87 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat
Type: 3-Piece
Application: Ideal for solder installations where ease of maintenance and in-line serviceability are required
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASTM B584 UNS C89836 Body | CRN OC10908.5C | CSA B51 | MSS SP-110 | NSF/ANSI 372 | UNS C27451 Ball/Stem | PROP65: Cancer and Reproductive Harm
Item Features
- EZ-Solder Lead free bronze materials
- Easily identifiable white handle grip and blue Lead free hang tag
- Full port ball configuration in all size
- 150 psi steam working pressure
- Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
