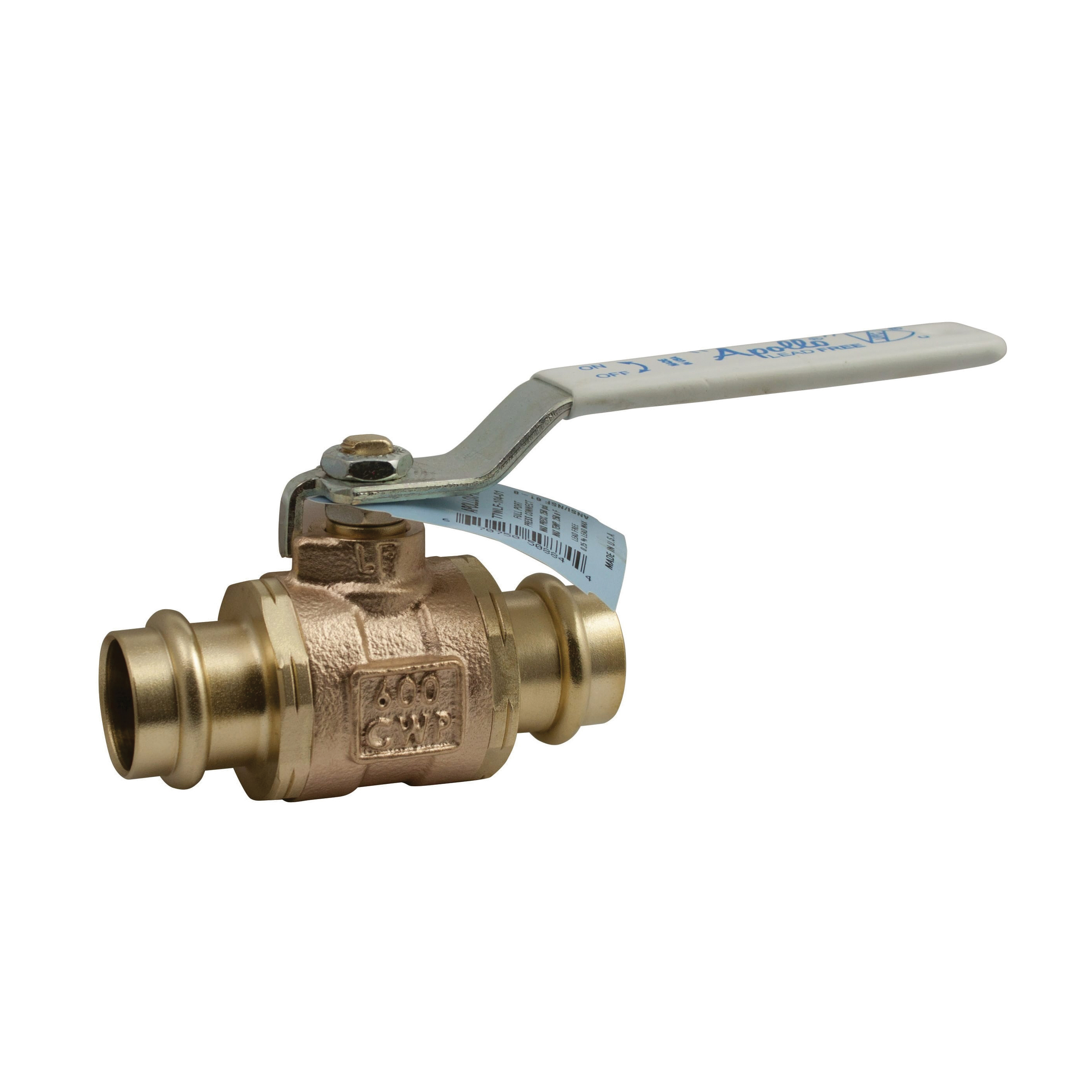

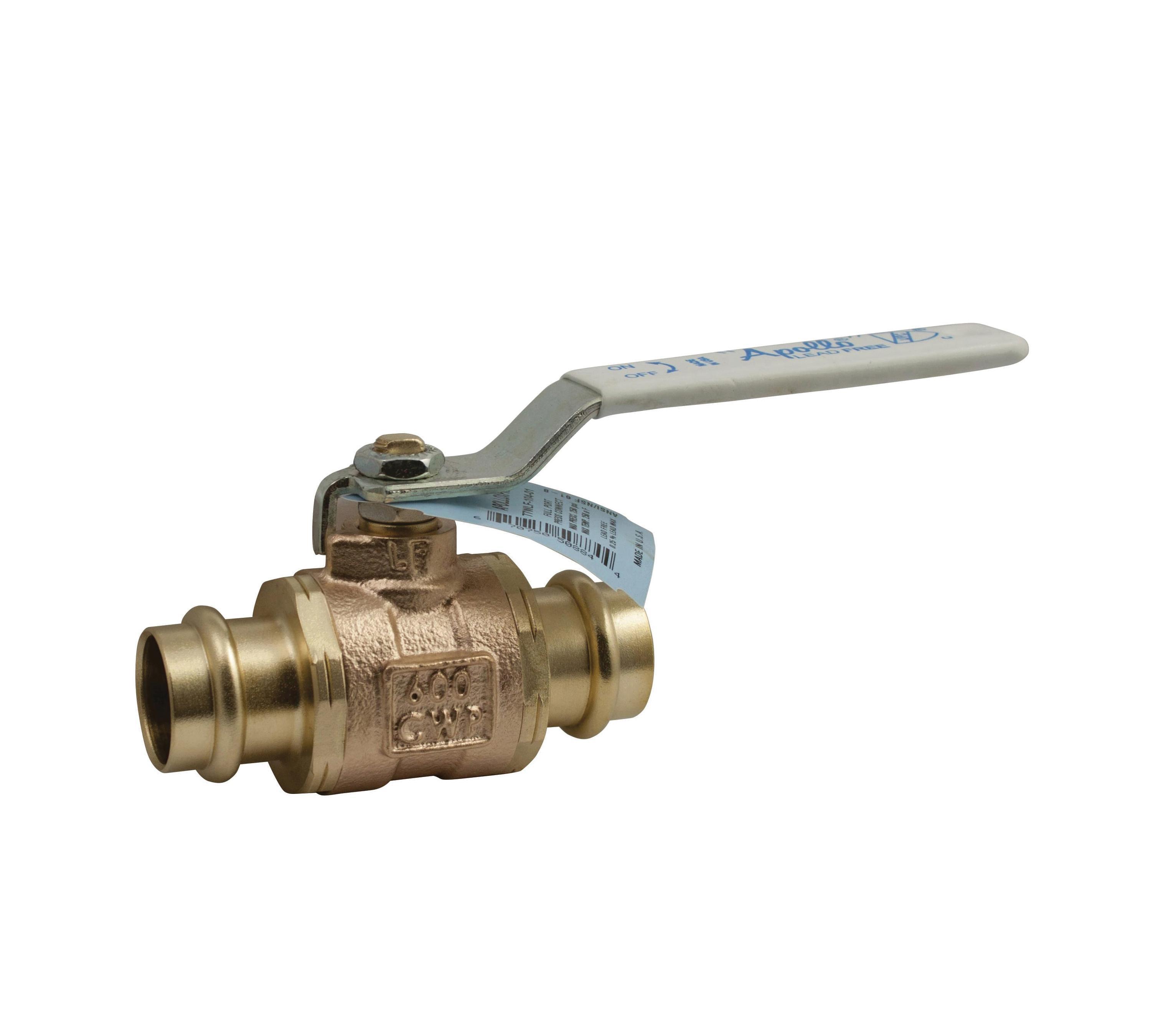

Apollo™ APOLLOPRESS® 77WLF-106-01A 77WLF-A Series Ball Valve, 1-1/4 in Nominal, Press End Style, Bronze Body, Full Port, EPDM/RPTFE Softgoods, Domestic
CBPN:172719
UPC:670750899355
MPN:77WLF-106-01A
Price:
$170.17 / EA
Prop 65:
DESCRIPTION
Apollo™ 77WLF10601A, Ball Valve, Series: 77WLF-A, 1-1/4 in Nominal, Press End Style, 300 psi Pressure, 0 to 250 deg F, Full Port, Media: Water, 1-1/4 in Orifice, Lever Handle Actuator, 4.8 in Inlet to Outlet Length, 2.46 in Top to Inlet Center, Bronze Body, DZR Brass Stem/RPTFE Seat Trim, EPDM/RPTFE Softgoods, Domestic
The lead-free APOLLOPRESS® 77WLF-A Series Ball Valve is ideal for installation in potable water systems requiring NSF 61 or lead-free approval. Now with Leak Before Press® feature and 300 psig maximum working pressure.
Apollo™ APOLLOPRESS® 77WLF-106-01A 77WLF-A Series Ball Valve, 1-1/4 in Nominal, Press End Style, Bronze Body, Full Port, EPDM/RPTFE Softgoods, Domestic
CBPN:172719
MPN:77WLF-106-01A
UPC:670750899355
Price:
$170.17 / EA
Prop 65:
DESCRIPTION
Apollo™ 77WLF10601A, Ball Valve, Series: 77WLF-A, 1-1/4 in Nominal, Press End Style, 300 psi Pressure, 0 to 250 deg F, Full Port, Media: Water, 1-1/4 in Orifice, Lever Handle Actuator, 4.8 in Inlet to Outlet Length, 2.46 in Top to Inlet Center, Bronze Body, DZR Brass Stem/RPTFE Seat Trim, EPDM/RPTFE Softgoods, Domestic
The lead-free APOLLOPRESS® 77WLF-A Series Ball Valve is ideal for installation in potable water systems requiring NSF 61 or lead-free approval. Now with Leak Before Press® feature and 300 psig maximum working pressure.
Specifications
Brand: Apollo™
Weight: 4.27 lbs
Nominal Size: 1-1/4 in
End Style: Press
Pressure Rating: 300 psi
Body Material: Bronze
Port Type: Full
Softgoods Material: EPDM/RPTFE
Actuator Type: Lever Handle
Ball Material: Chrome Plated DZR Brass
Inlet to Outlet Length: 4.8 in
Manufacturer Name: Apollo Conbraco
Media: Water
Orifice Size: 1-1/4 in
Series: 77WLF-A
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 2.46 in
Trim Material: DZR Brass Stem/RPTFE Seat
Application: Commercial and Potable Water Systems Applications
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B16/B584 | IAPMO/ANSI Z1157 | Lead-Free Compliant | MSS SP-110 | NSF/ANSI 372 | NSF/ANSI/CAN 61 | UNS C27451/C36000/C89836 | PROP65: Cancer and Reproductive Harm
Item Features
- Lead-free brass and bronze materials easily identifiable blue lead-free hang tag
- Adjustable stem packing
- Fast, reliable, economical press installation
- Leak Before Press technology
- Corrosion-resistant materials
- 100% factory tested
- Ridgid XL press tool compatible
