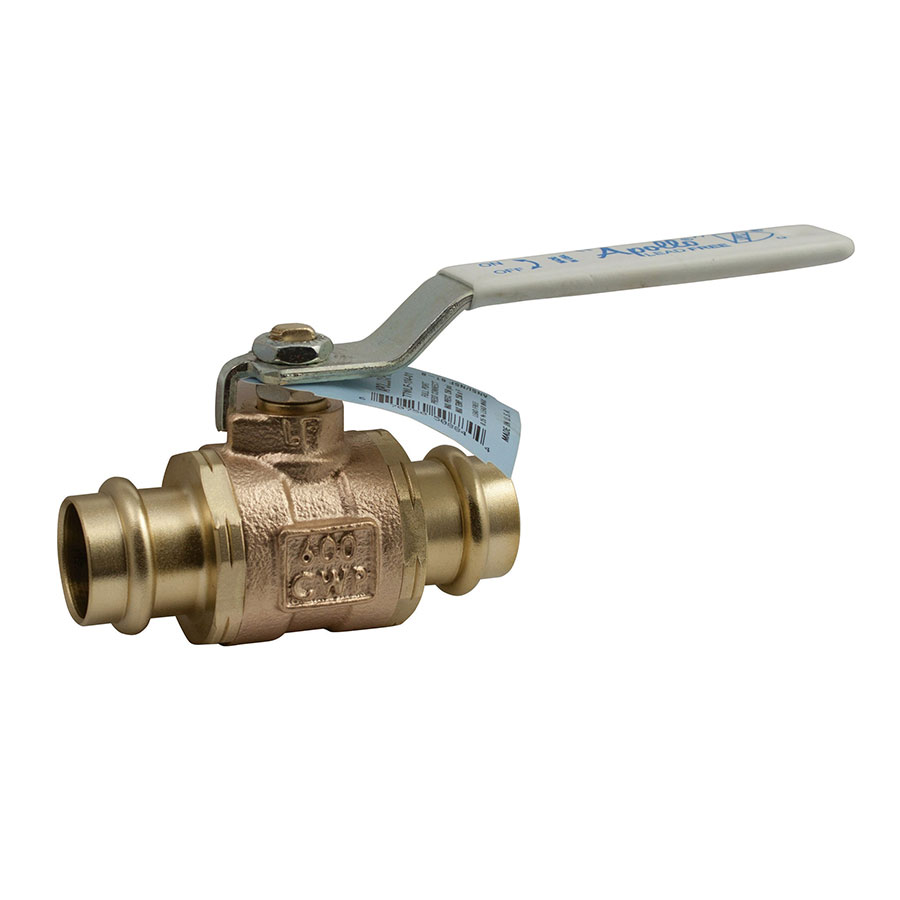

Apollo™ APOLLOXPRESS® 77WLF-105-01 2-Piece Ball Valve, 1 in Nominal, Press End Style, Bronze Body, Full Port, Multi-Fill PTFE/EPDM Softgoods, Domestic
CBPN:172718
UPC:670750508851
MPN:77WLF-105-01
Price:
$77.34 / EA
DESCRIPTION
Apollo™ APOLLOXPRESS® Ball Valve, 2-Piece, Series: 77WLF, 1 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3.86 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, Bronze Body, Brass Stem and Multi-Fill Seat Trim, Multi-Fill PTFE/EPDM, Domestic
The Lead Free APOLLOXPRESS® 77WLF ball valve is ideal for installation in potable water systems requiring NSF 61 or Lead Free approval. Now with Leak Before Press® feature and 250 psig maximum working pressure.
Apollo™ APOLLOXPRESS® 77WLF-105-01 2-Piece Ball Valve, 1 in Nominal, Press End Style, Bronze Body, Full Port, Multi-Fill PTFE/EPDM Softgoods, Domestic
CBPN:172718
MPN:77WLF-105-01
UPC:670750508851
Price:
$77.34 / EA
DESCRIPTION
Apollo™ APOLLOXPRESS® Ball Valve, 2-Piece, Series: 77WLF, 1 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3.86 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, Bronze Body, Brass Stem and Multi-Fill Seat Trim, Multi-Fill PTFE/EPDM, Domestic
The Lead Free APOLLOXPRESS® 77WLF ball valve is ideal for installation in potable water systems requiring NSF 61 or Lead Free approval. Now with Leak Before Press® feature and 250 psig maximum working pressure.
Specifications
Brand: Apollo™
Series: 77WLF
Type: 2-Piece
Body Material: Bronze
Domestic/Import: Domestic
End Style: Press
Nominal Size: 1 in
Pressure Rating: 250 psi
Temperature Rating: 0 To 250 deg F
Actuator Type: Lever Operated
Media: Water
Port Type: Full
Softgoods Material: Multi-Fill PTFE/EPDM
Trim Material: Brass Stem and Multi-Fill Seat
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 3.86 in
Top to Inlet Center: 2.2 in
Weight: 1.77 lbs
Item Features
- Adjustable stem packing nut
- CDA C27451 retainer
- Plated steel/insulated polyvinyl handle
- Complies with Federal Public Law 111-380, ANSI 3Rd Party approved and Listed
- Multi-fill PTFE stem packing and EPDM O-ring
- Fast, easy, economical installation
- Leak before Press® technology
- Blow-out proof stem
- Corrosion resistant materials
- 100% factory tested
- Silicone free
- Ridgid® press tool compatible
- Zinc plated steel nut
