Apollo 77FLF-100 Series Ball Valve

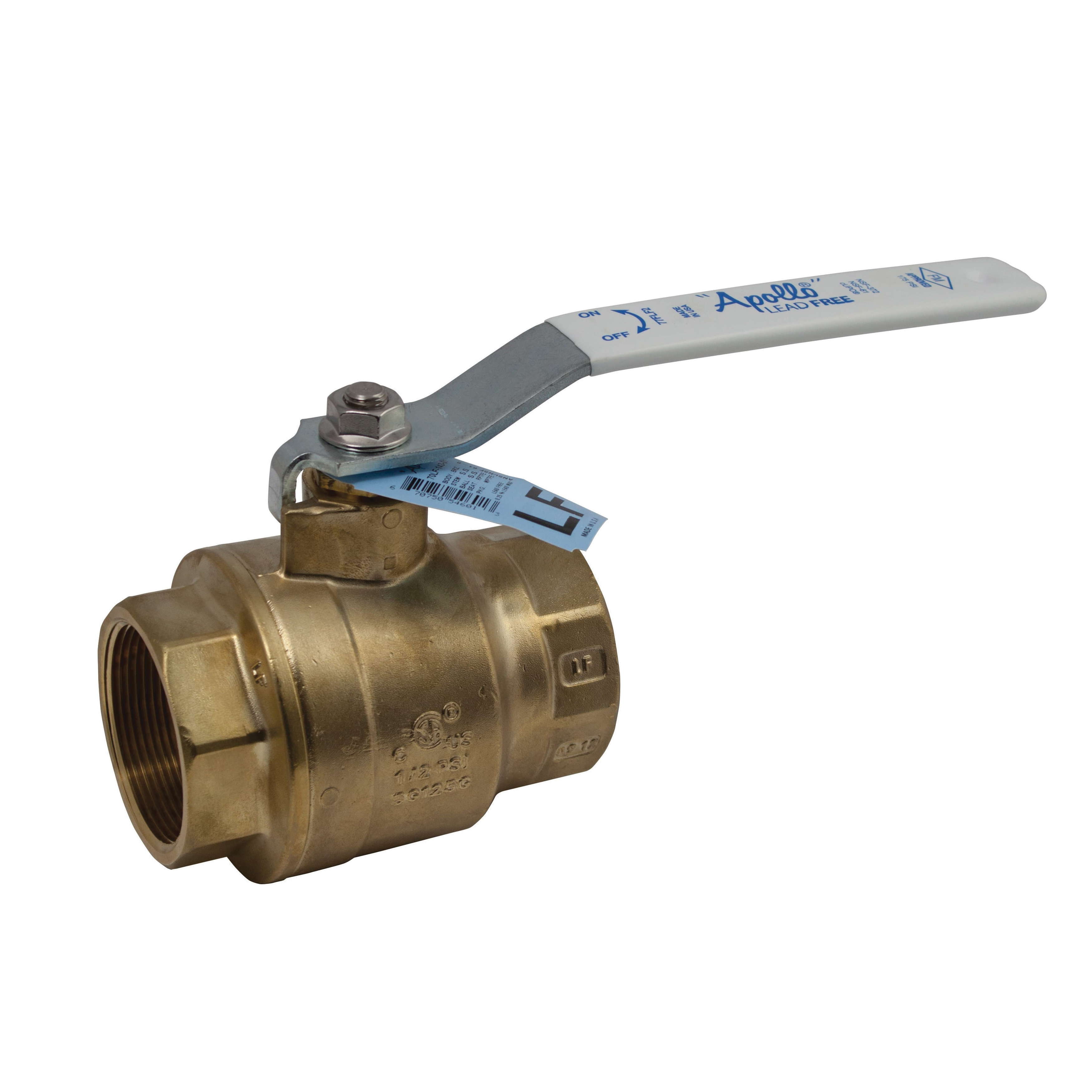

Apollo™ 77FLF10501 77FLF-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:172708

UPC:670750372186

MPN:77FLF-105-01

Price:
$47.55 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 77FLF-100, 1 in Nominal, FNPT, 600 psi CWP, 0 to 400 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, 3.2 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Forged Brass Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic

The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Apollo™ 77FLF10501 77FLF-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:172708

MPN:77FLF-105-01

UPC:670750372186

Price:
$47.55 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 77FLF-100, 1 in Nominal, FNPT, 600 psi CWP, 0 to 400 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, 3.2 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Forged Brass Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic

The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Specifications

BrandApollo™
Series77FLF-100
Type2-Piece
Body MaterialLead Free Brass
Domestic/ImportDomestic
End StyleFNPT
Nominal Size1 in
Pressure Rating600 psi CWP
Temperature Rating0 to 400 deg F
Actuator TypeLever Operated
Port TypeFull
Softgoods MaterialRPTFE
Trim MaterialBrass Stem and RPTFE Seat
Ball MaterialChrome Plated Brass
Inlet to Outlet Length3.2 in
Top to Inlet Center2.11 in
Weight1.29 lbs
Standards ApprovalsARRA Compliant,Annex G,IAPMO IGC-157,Federal Public Law 111-380,ANSI 3Rd Party Approved and Listed,MSS-SP-110,UNS C27451,UL YSDT/MHKZ/YQNZ/YRBX/YRPV,UL VQGU,NSF/ANSI 61-8,NSF/ANSI 372

Item Features

  • Heavy pattern forged design
  • Superior RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem
  • Dezincification resistant materials
  • 100% factory tested
  • Silicone free assembly
  • Vacuum service to 29 in Hg
  • ASTM B16-C36000 brass gland
  • UNS C27451 Lead free brass retainer
  • Plated steel handle with insulated polyvinyl grip
  • 150 psi steam working pressure
  • RPTFE stem packing
