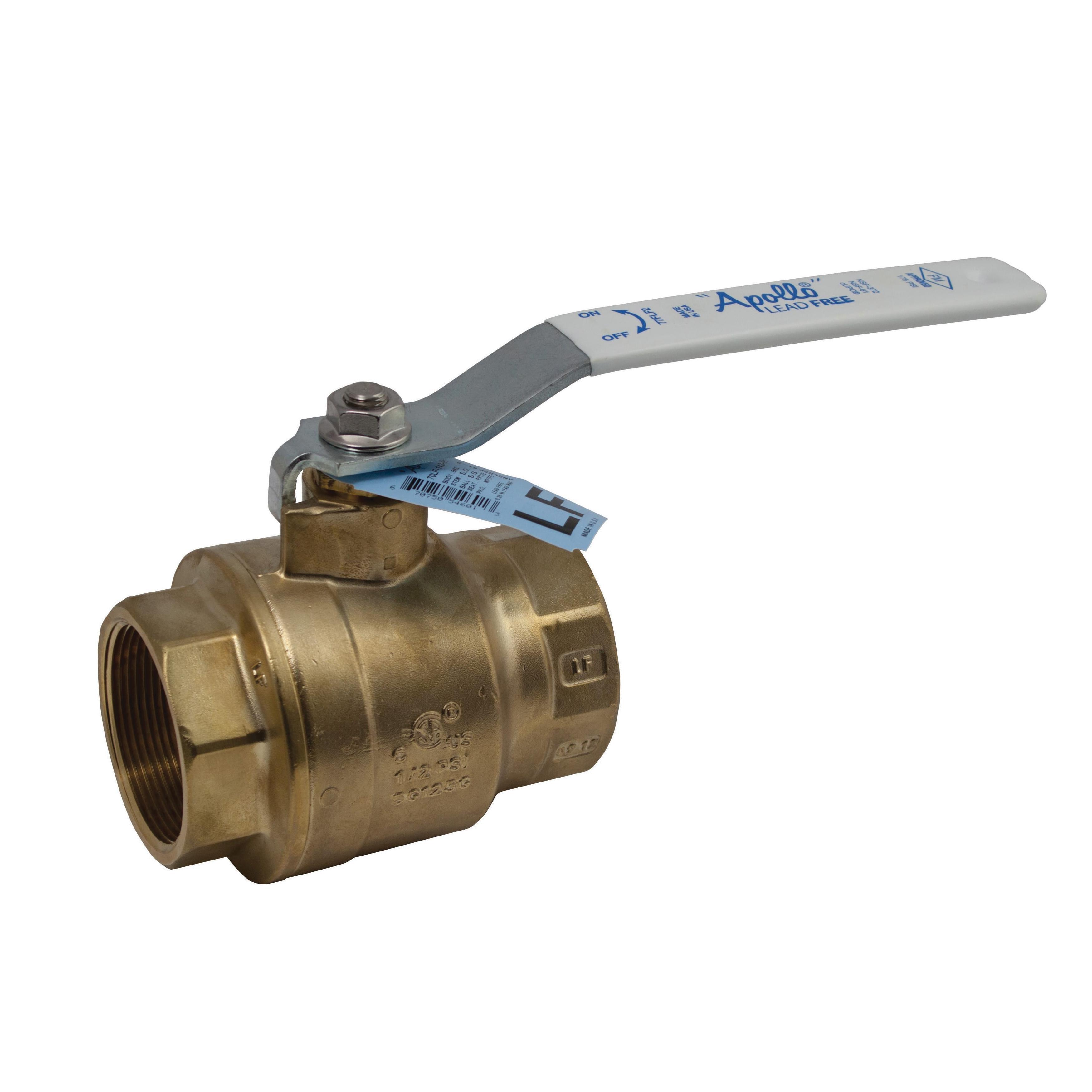

Apollo™ 77FLF10401 77FLF-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic
CBPN:172707
UPC:670750372162
MPN:77FLF-104-01
Price:
$33.88 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 77FLF-100, 3/4 in Nominal, FNPT, 600 psi CWP, 0 to 400 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic
The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
Apollo™ 77FLF10401 77FLF-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic
CBPN:172707
MPN:77FLF-104-01
UPC:670750372162
Price:
$33.88 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 77FLF-100, 3/4 in Nominal, FNPT, 600 psi CWP, 0 to 400 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic
The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
Specifications
Brand: Apollo™
Actuator Type: Lever Operated
Body Material: Lead Free Brass
End Style: FNPT
Nominal Size: 3/4 in
Series: 77FLF-100
Temperature Rating: 0 to 400 deg F
Type: 2-Piece
Domestic/Import: Domestic
Pressure Rating: 600 psi CWP
Port Type: Full
Softgoods Material: RPTFE
Trim Material: Brass Stem and RPTFE Seat
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2.51 in
Top to Inlet Center: 1.91 in
Weight: 0.76 lbs
Standards Approvals: ARRA Compliant,Annex G,IAPMO IGC-157,Federal Public Law 111-380,ANSI 3Rd Party Approved and Listed,MSS-SP-110,UNS C27451,UL YSDT/MHKZ/YQNZ/YRBX/YRPV,UL VQGU,NSF/ANSI 61-8,NSF/ANSI 372
Item Features
- Heavy pattern forged design
- Superior RPTFE seats and packing
- Adjustable stem packing
- Blow-out proof stem
- Dezincification resistant materials
- 100% factory tested
- Silicone free assembly
- Vacuum service to 29 in Hg
- ASTM B16-C36000 brass gland
- UNS C27451 Lead free brass retainer
- Plated steel handle with insulated polyvinyl grip
- 150 psi steam working pressure
- RPTFE stem packing
