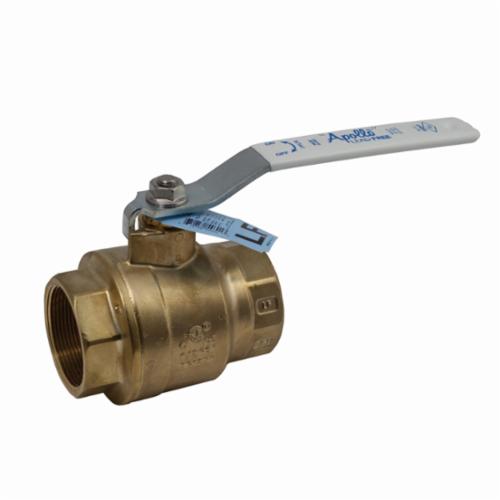

Apollo™ 77FLF10101 77FLF-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic
CBPN: 172695
UPC:670750208898
MPN:77FLF-101-01
Price:
$28.73 / EA
Prop 65:
DESCRIPTION
Apollo™ 77FLF10101, Ball Valve, 2-Piece, Series: 77FLF-100, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 1.62 in Inlet to Outlet Length, 1.61 in Top to Inlet Center, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
Apollo™ 77FLF10101 77FLF-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic
CBPN: 172695
MPN:77FLF-101-01
UPC:670750208898
Price:
$28.73 / EA
Prop 65:
DESCRIPTION
Apollo™ 77FLF10101, Ball Valve, 2-Piece, Series: 77FLF-100, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 1.62 in Inlet to Outlet Length, 1.61 in Top to Inlet Center, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
Specifications
Brand: Apollo™
Weight: 0.33 lbs
Nominal Size: 1/4 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Lead Free Brass
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 1.62 in
Manufacturer Name: Apollo Conbraco
Series: 77FLF-100
Temperature Rating: 0 to 400 deg F
Top to Inlet Center: 1.61 in
Trim Material: Brass Stem and RPTFE Seat
Type: 2-Piece
Application: Wide range of plumbing and heating applications, including potable water
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | Annex G | IAPMO IGC-157 | Federal Public Law 111-380 | ANSI 3Rd Party Approved and Listed | MSS-SP-110 | UNS C27451 | UL YSDT/MHKZ/YQNZ/YRBX/YRPV | UL VQGU | NSF/ANSI 61-8 | NSF/ANSI 372 | PROP65: Cancer and Reproductive Harm
Item Features
- Heavy pattern forged design
- Adjustable stem packing
- Blow-out proof stem
- Dezincification resistant materials
- 100% factory tested
- Silicone free assembly
- Vacuum service to 29 in Hg
- ASTM B16-C36000 brass gland
- UNS C27451 Lead free brass retainer
- Plated steel handle with insulated polyvinyl grip
- 150 psi steam working pressure
