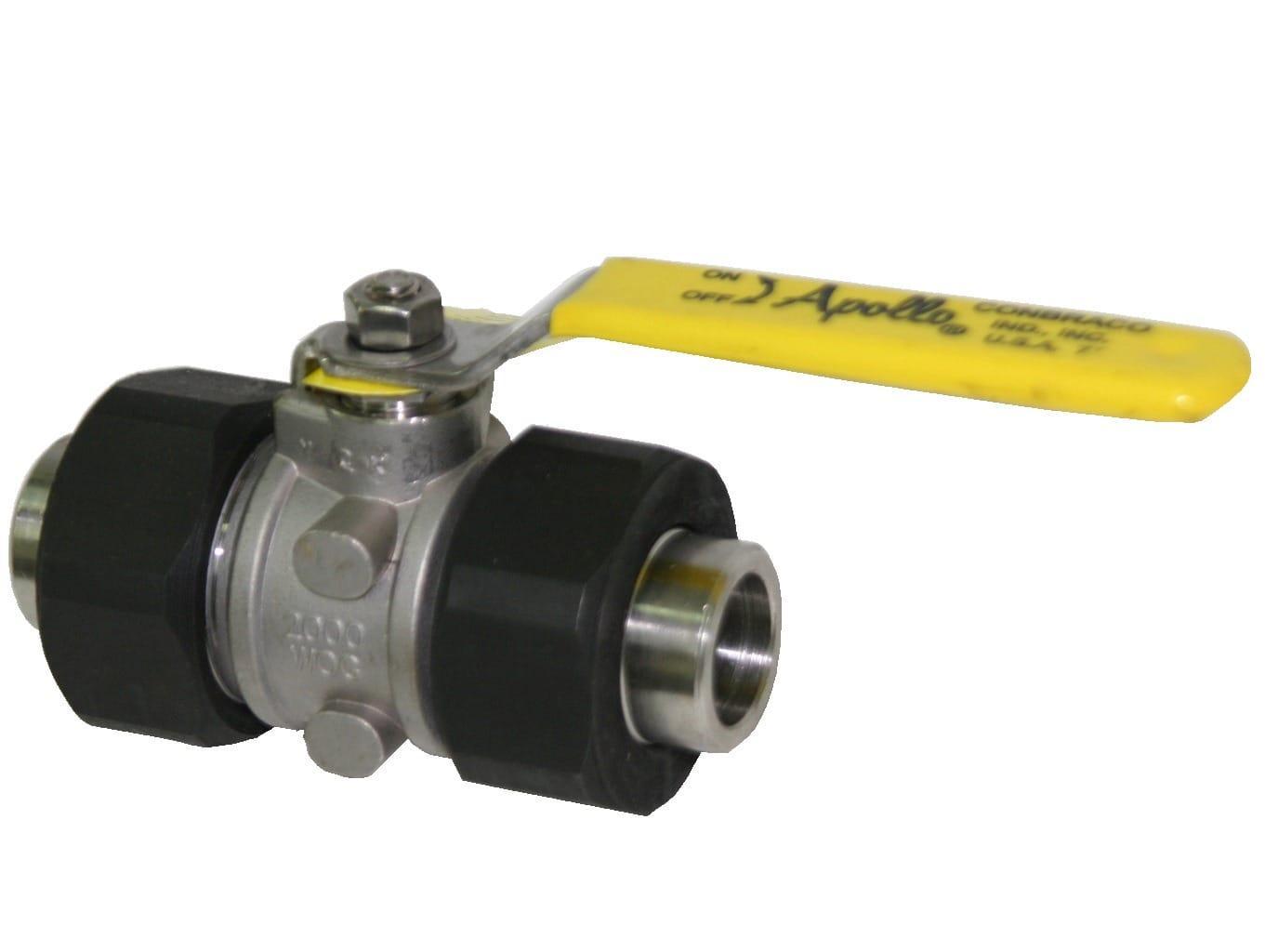

Apollo™ 76-405-27 76-400 Double Union Ball Valve, 1 in Nominal, Socket Weld End Style, Stainless Steel Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
CBPN: 245961
UPC:670750700743
MPN:76-405-27
Price:
$1099.42 / EA
Prop 65:
DESCRIPTION
Apollo™ Double Union Ball Valve, Series: 76-400, 1 in Nominal, Socket Weld, 2000 psig CWP, Standard Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 5.45 in Inlet to Outlet Length, 2-3/4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE, Domestic
Apollo™ 76-405-27 76-400 Double Union Ball Valve, 1 in Nominal, Socket Weld End Style, Stainless Steel Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
CBPN: 245961
MPN:76-405-27
UPC:670750700743
Price:
$1099.42 / EA
Prop 65:
DESCRIPTION
Apollo™ Double Union Ball Valve, Series: 76-400, 1 in Nominal, Socket Weld, 2000 psig CWP, Standard Port, Latch-Lock Lever Actuator, Stainless Steel Ball, 5.45 in Inlet to Outlet Length, 2-3/4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE, Domestic
Specifications
Brand: Apollo™
Weight: 5.98 lbs
Nominal Size: 1 in
End Style: Socket Weld
Pressure Rating: 2000 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/RPTFE
Actuator Type: Latch-Lock Lever
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 5.45 in
Manufacturer Name: Apollo Conbraco
Series: 76-400
Top to Inlet Center: 2-3/4 in
Trim Material: 316 Stainless Steel/RPTFE
Type: Union End
Includes: Adjustable Packing Gland, Stainless Steel Latch-Lock Lever, Nut
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 316 Ball/Retainer/Gland Nut/Stem | ASTM A351 CF8M Body | ASTM A276 316 Tailpiece | ASTM A08-CS Union Nut | ASTM A276 316 Seat Holder | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Heavy duty quarter-turn handles
- Blow-out proof stem design
- 150 psi saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock body rating
