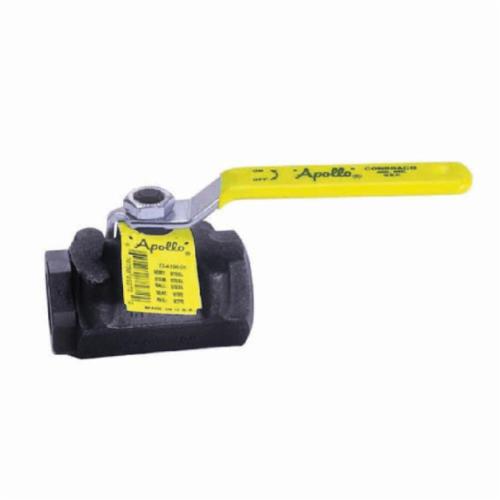

Apollo™ 73A-145-64 73A-140 2-Piece Ball Valve With Steam Trim, 1 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
CBPN: 39014
MPN:73A-145-64
Apollo™ 73A-145-64 has been discontinued by the manufacturer.
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 73A-140, 1 in Nominal, FNPT, 2000 psi, Standard Port, Media: Gas/Water, 0.87 in Orifice, Lever Operated Actuator, Carbon Steel Ball, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Carbon Steel Body, Carbon Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE, Domestic
Apollo™ 73A-145-64 73A-140 2-Piece Ball Valve With Steam Trim, 1 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
CBPN: 39014
MPN:73A-145-64
Apollo™ 73A-145-64 has been discontinued by the manufacturer.
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 73A-140, 1 in Nominal, FNPT, 2000 psi, Standard Port, Media: Gas/Water, 0.87 in Orifice, Lever Operated Actuator, Carbon Steel Ball, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Carbon Steel Body, Carbon Steel Stem and RPTFE Seat Trim, RPTFE/MPTFE, Domestic
Specifications
Brand: Apollo™
Weight: 2.2 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 2000 psi
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: RPTFE/MPTFE
Actuator Type: Lever Operated
Ball Material: Carbon Steel
Inlet to Outlet Length: 3.37 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 0.87 in
Series: 73A-140
Top to Inlet Center: 2-1/4 in
Trim Material: Carbon Steel Stem and RPTFE Seat
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: AAR E999032 | MSS SP-110
Item Features
- Raised handle stops
- Blow-out proof stem
- Zinc phosphate corrosion protection
- 2-ports/ways
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- RPTFE body seal and MPTFE stem packing
