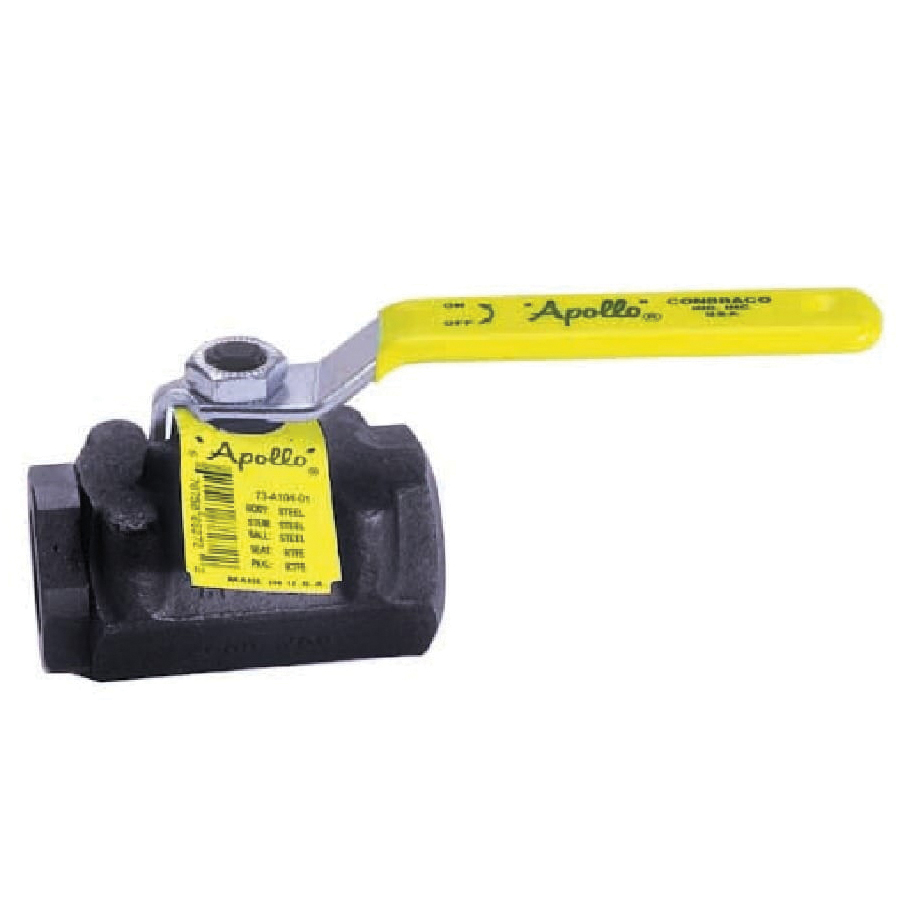

Apollo™ 73A14527A 73A-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
CBPN: 183547
UPC:670750262326
MPN:73A-145-27-A
Price:
$151.50 / EA
Prop 65:
DESCRIPTION
Apollo™ 73A14527A, Ball Valve, 2-Piece, Series: 73A-140, 1 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 3.4 in Inlet to Outlet Length, 2.18 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, MPTFE/RPTFE Softgoods, Domestic
Apollo™ 73A14527A 73A-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
CBPN: 183547
MPN:73A-145-27-A
UPC:670750262326
Price:
$151.50 / EA
Prop 65:
DESCRIPTION
Apollo™ 73A14527A, Ball Valve, 2-Piece, Series: 73A-140, 1 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 3.4 in Inlet to Outlet Length, 2.18 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, MPTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.2 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 2000 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: MPTFE/RPTFE
Actuator Type: Latch-Lock Lever
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.4 in
Manufacturer Name: Apollo Conbraco
Series: 73A-140
Top to Inlet Center: 2.18 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A105 Body | ASTM A276 Ball/Stem | AAR File No. E999032 | MSS SP-110 | NACE Listed | PROP65: Cancer and Reproductive Harm
Item Features
- 27 - stainless steel latch-lock lever and nut
- Raised handle stops
- Blow-out proof stem design
- Zinc phosphate corrosion protection
- Vacuum service to 29 in Hg
- 150 psig saturated steam
