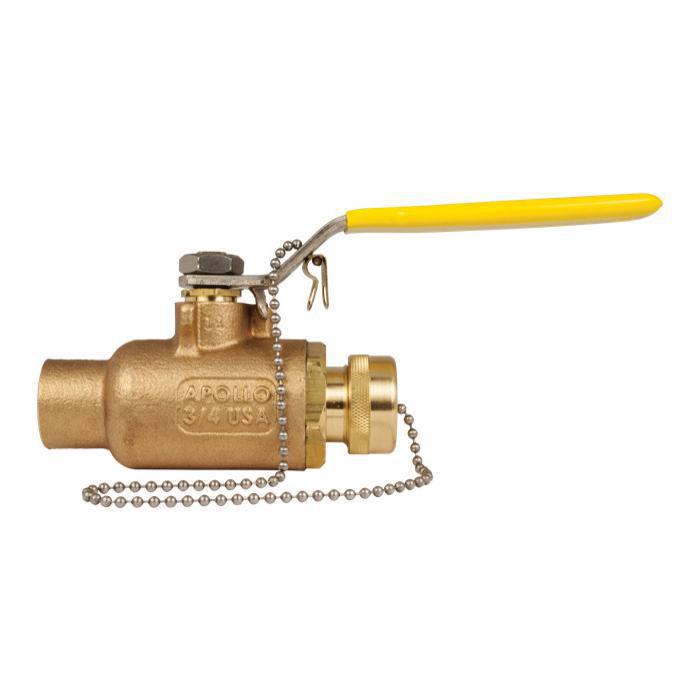

Apollo™ 70244HC 70-200-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder x NPSH End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic
CBPN: 39817
UPC:670750521867
MPN:70-244-HC
Price:
$132.97 / EA
Prop 65:
DESCRIPTION
Apollo™ 70244HC, Ball Valve, 2-Piece, Series: 70-200-HC, 3/4 in Nominal, Solder x NPSH End Style, 600 psi CWP Pressure, Standard Port, Lever Handle Actuator, 316 Stainless Steel Ball, 3.84 in Inlet to Outlet Length, 2.32 in Top to Inlet Center, Bronze Body, RPTFE/316 Stainless Steel Trim, MPTFE Softgoods, Domestic
The Apollo™ 70-200HC series is ideally suited for direct connection to hoses. Valve contains a securely attached cover with chain which prevents damage to hose threads.
Apollo™ 70244HC 70-200-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder x NPSH End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic
CBPN: 39817
MPN:70-244-HC
UPC:670750521867
Price:
$132.97 / EA
Prop 65:
DESCRIPTION
Apollo™ 70244HC, Ball Valve, 2-Piece, Series: 70-200-HC, 3/4 in Nominal, Solder x NPSH End Style, 600 psi CWP Pressure, Standard Port, Lever Handle Actuator, 316 Stainless Steel Ball, 3.84 in Inlet to Outlet Length, 2.32 in Top to Inlet Center, Bronze Body, RPTFE/316 Stainless Steel Trim, MPTFE Softgoods, Domestic
The Apollo™ 70-200HC series is ideally suited for direct connection to hoses. Valve contains a securely attached cover with chain which prevents damage to hose threads.
Specifications
Brand: Apollo™
Weight: 1.44 lbs
Nominal Size: 3/4 in
End Style: Solder x NPSH
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: MPTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.84 in
Manufacturer Name: Apollo Conbraco
Series: 70-200-HC
Top to Inlet Center: 2.32 in
Trim Material: RPTFE/316 Stainless Steel
Type: 2-Piece
Includes: Adjustable Packing Gland
Application: Direct Connection to hoses
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584 C84400 Body | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel lever and nut
- Blow-out proof stem
- Cap and chain protects hose thread
- Heavy brass cap is full pressure rated
- Stainless steel reversed handle
- Manufactured and 100% factory tested in the USA
- Vacuum service to 29 in Hg
- MPTFE stem packing
