Apollo™ 36LF10701

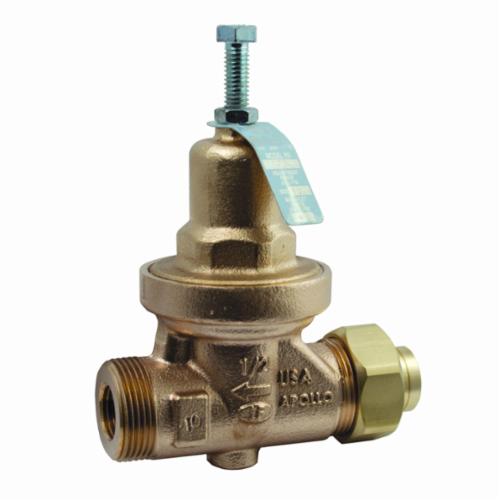

Apollo™ 36LF-107-01 Direct Acting Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psig Pressure, Bronze Body, Domestic

CBPN: 191006

UPC:670750518560

MPN:36LF10701

Price:
$792.56 / EA
Prop 65:

DESCRIPTION

Apollo™ 36LF10701, Pressure Reducing Valve, Direct Acting, Series: 36LF, 1-1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM Seat Disc/Polypropylene Seal/EPDM O-Ring Softgoods, 8-7/8 in H Dimensions, Domestic

Apollo® model PR-LF (36LF Series) pressure reducing valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a lead free bronze body and stainless steel strainer.

Apollo™ 36LF-107-01 Direct Acting Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psig Pressure, Bronze Body, Domestic

CBPN: 191006

MPN:36LF10701

UPC:670750518560

Price:
$792.56 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 36LF10701, Pressure Reducing Valve, Direct Acting, Series: 36LF, 1-1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM Seat Disc/Polypropylene Seal/EPDM O-Ring Softgoods, 8-7/8 in H Dimensions, Domestic

Apollo® model PR-LF (36LF Series) pressure reducing valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a lead free bronze body and stainless steel strainer.

Specifications

BrandApollo™
Weight10.45 lbs
Nominal Size1-1/2 in
End StyleFNPT Union x FNPT
Pressure Range25 to 75 psi
Body MaterialBronze
Dimensions8-7/8 in H
Inlet to Outlet Length7-7/8 in
Manufacturer NameApollo Conbraco
MediaWater
Series36LF
Softgoods MaterialEPDM Seat Disc/Polypropylene Seal/EPDM O-Ring
Temperature Rating33 to 180 deg F
Trim MaterialBrass
TypeDirect Acting
ApplicationBuilt for long reliable service with proven ASTM grade materials including a lead free bronze body and stainless steel strainer
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1003 | CSA B356 | C27450 Stem | C89836 Body | FDA Approved Seat Disc/O-Ring | IAPMO Certified | NSF/ANSI 372 Lead-Free | UPC Listed | PROP65: Cancer and Reproductive Harm

Item Features

  • Corrosion resistant bronze body and bonnet
  • 100% factory tested, preset to 50 psi (-01)
  • Control pressure ranges 10 to 35 psi, 25 to 75 psi (standard), 75 to 125 psi
  • Integral stainless steel strainer
  • Balanced piston design
  • Internal thermal expansion by pass
  • NPT, solder, PEX, CPVC, press connections
  • Optional pressure gauge or tapping
  • Maximum supply pressure up to 300 psig
