Apollo™ 36LF-1-06-0-3

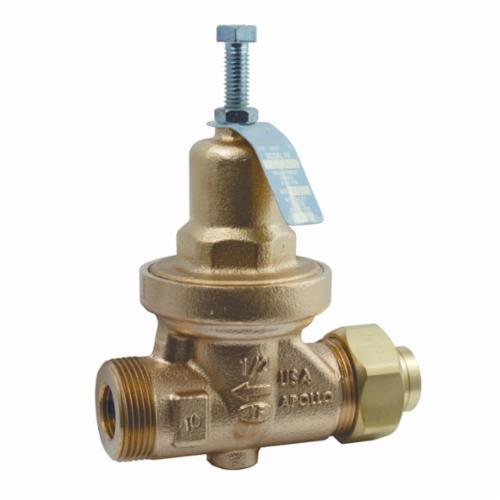

Apollo™ 36LF-1-06-0-3, PR-LF Pressure Reducing Valve, 1 in, Single Union NPT, 75 to 125 psig, Bronze Body, Domestic

CBPN:247059

UPC:670750975479

MPN:36LF-1-06-0-3

Price:
$511.21 / EA
Availability Information

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36LF, 1 in Nominal, Single Union NPT, 75 to 125 psig, 33 to 180 deg F, Media: Water, 6-3/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM O-Ring Softgoods, 6-7/8 in H x 3-3/8 in D, Domestic

Apollo® Model PR-LF (36LF Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a Lead Free bronze body and stainless steel strainer.

Apollo™ 36LF-1-06-0-3, PR-LF Pressure Reducing Valve, 1 in, Single Union NPT, 75 to 125 psig, Bronze Body, Domestic

CBPN:247059

MPN:36LF-1-06-0-3

UPC:670750975479

Price:
$511.21 / EA
Availability Information

Apollo Valve Logo

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36LF, 1 in Nominal, Single Union NPT, 75 to 125 psig, 33 to 180 deg F, Media: Water, 6-3/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM O-Ring Softgoods, 6-7/8 in H x 3-3/8 in D, Domestic

Apollo® Model PR-LF (36LF Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a Lead Free bronze body and stainless steel strainer.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleSingle Union NPT
Nominal Size1 in
Pressure Range75 to 125 psig
Series36LF
Temperature Rating33 to 180 deg F
Dimensions6-7/8 in H x 3-3/8 in D
MediaWater
Softgoods MaterialEPDM O-Ring
Trim MaterialBrass
Inlet to Outlet Length6-3/8 in
Weight10.2 lbs

Item Features

  • Corrosion resistant bronze body and bonnet
  • 100% factory tested, preset to 50 psi
  • FDA grade Buna with polyester
  • Integral stainless steel strainer
  • Balanced piston design
  • Internal thermal expansion by-pass
  • Multiple connection options
  • Optional pressure gauge or tapping
  • Maximum supply pressure up to 300 psig
  • Stainless steel spring
  • Bronze cover
