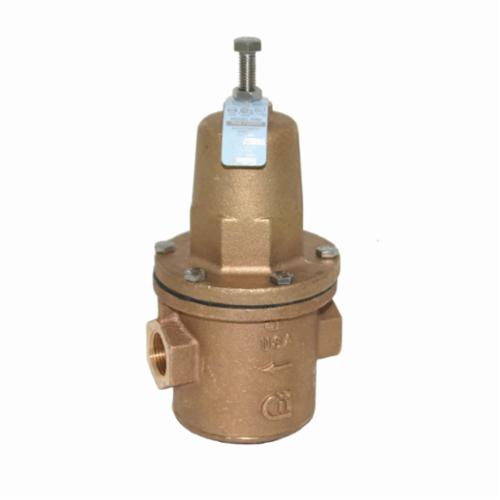

Apollo™ 36HLF-204-03 High Capacity Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 75 to 125 psig Pressure, Bronze Body, Domestic
CBPN: 208553
UPC:670750751509
MPN:36HLF20403
DESCRIPTION
Apollo™ 36HLF20403, Pressure Reducing Valve, High Capacity, Series: 36HLF, 3/4 in Nominal, FNPT End Style, 75 to 125 psi Pressure, 33 to 180 deg F, Media: Water, 4.12 in Inlet to Outlet Length, Bronze Body, Nitrile O-Ring Softgoods, 9-1/4 in H x 4 in D Dimensions, Domestic
The Apollo® PRH-LF Lead Free Pressure Reducing Valve (36HLF Series) is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free* bronze and stainless steel materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
Apollo™ 36HLF-204-03 High Capacity Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 75 to 125 psig Pressure, Bronze Body, Domestic
CBPN: 208553
MPN:36HLF20403
UPC:670750751509
DESCRIPTION
Apollo™ 36HLF20403, Pressure Reducing Valve, High Capacity, Series: 36HLF, 3/4 in Nominal, FNPT End Style, 75 to 125 psi Pressure, 33 to 180 deg F, Media: Water, 4.12 in Inlet to Outlet Length, Bronze Body, Nitrile O-Ring Softgoods, 9-1/4 in H x 4 in D Dimensions, Domestic
The Apollo® PRH-LF Lead Free Pressure Reducing Valve (36HLF Series) is designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM grade Lead Free* bronze and stainless steel materials. The PRH-LF provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.
Specifications
Item Features
- Dezincification resistant lead free bronze
- Sealed spring cage for vault installations
- Ultra-high flow capacity
- Internal thermal expansion by-pass
- Standard factory setting - 50 psi
- Three spring ranges cover 10 to 125 psi
- Stainless steel bolts and spring
- EPDM seat disc
- UNS C89836 lead free bronze yoke
- ASTM B584 bronze cap
- FDA approved Buna-N diaphragm with nylon
- FDA approved EPDM seat disc
- Stainless steel spring
- 400 psi supply
