Apollo™ 36H-209-01

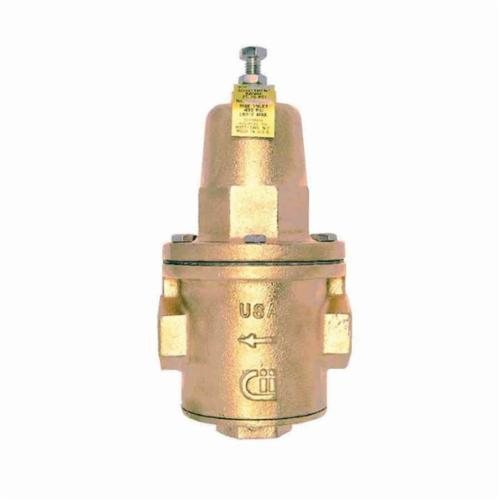

Apollo™ 36H-209-01, PRH High Capacity Pressure Reducing Valve, 2-1/2 in, FNPT, 25 to 75 psig, Bronze Body, Domestic

CBPN:247033

UPC:670750815508

MPN:36H-209-01

Price:
$1945.84 / ea
Availability Information

DESCRIPTION

Apollo™ Pressure Reducing Valve, High Capacity, Series: 36H, 2-1/2 in Nominal, FNPT, 25 to 75 psig, 33 to 180 deg F, Media: Water, 8.12 in Inlet to Outlet Length, Bronze Body, Nitrile O-Ring Softgoods, 16 in H x 7.63 in D, Domestic

Apollo® PRH (36H Series) Pressure Reducing Valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.

Apollo™ 36H-209-01, PRH High Capacity Pressure Reducing Valve, 2-1/2 in, FNPT, 25 to 75 psig, Bronze Body, Domestic

CBPN:247033

MPN:36H-209-01

UPC:670750815508

Price:
$1945.84 / ea
Availability Information

Apollo Valve Logo

DESCRIPTION

Apollo™ Pressure Reducing Valve, High Capacity, Series: 36H, 2-1/2 in Nominal, FNPT, 25 to 75 psig, 33 to 180 deg F, Media: Water, 8.12 in Inlet to Outlet Length, Bronze Body, Nitrile O-Ring Softgoods, 16 in H x 7.63 in D, Domestic

Apollo® PRH (36H Series) Pressure Reducing Valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleFNPT
Nominal Size2-1/2 in
Pressure Range25 to 75 psig
Series36H
Temperature Rating33 to 180 deg F
TypeHigh Capacity
Dimensions16 in H x 7.63 in D
MediaWater
Softgoods MaterialNitrile O-Ring
Inlet to Outlet Length8.12 in

Item Features

  • Sealed spring cage for vault installation
  • EPDM seat disc
  • Buna-N with nylon diaphragm
  • Ultra-high flow capacity
  • Internal thermal expansion by-pass
  • Local code approvals
  • Standard factory setting: 50 psi
  • Three spring ranges cover 10 to 125 psi
  • Stainless steel bolts and spring
  • In-line strainer option
  • Bronze bonnet/cap/yoke
