Apollo™ 36ELF-114-01T

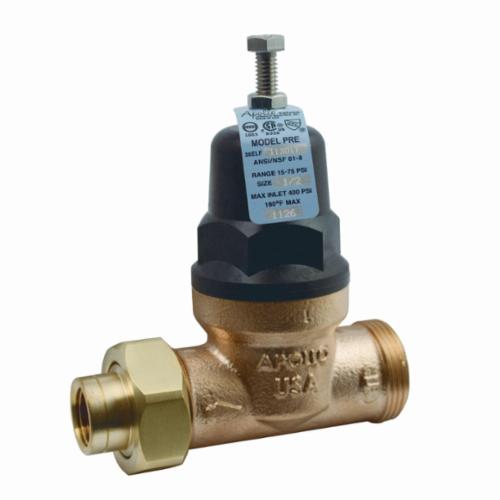

Apollo™ 36ELF-114-01T, PRE-PRLF Pressure Reducing Valve, 3/4 in, Single Union x FNPT, 15 to 75 psig, Bronze Body, Domestic

CBPN:199764

UPC:670750511394

MPN:36ELF-114-01T

Price:
$70.82 / ea
Availability Information

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36ELF, 3/4 in Nominal, Single Union x FNPT, 15 to 75 psig, 33 to 180 deg F, Media: Water, 5-1/2 in Inlet to Outlet Length, Bronze Body, EPDM O-Ring Softgoods, 6 in H x 2-3/4 in D, Domestic

The Apollo® Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Apollo™ 36ELF-114-01T, PRE-PRLF Pressure Reducing Valve, 3/4 in, Single Union x FNPT, 15 to 75 psig, Bronze Body, Domestic

CBPN:199764

MPN:36ELF-114-01T

UPC:670750511394

Price:
$70.82 / ea
Availability Information

Apollo Valve Logo

DESCRIPTION

Apollo™ Pressure Reducing Valve, Series: 36ELF, 3/4 in Nominal, Single Union x FNPT, 15 to 75 psig, 33 to 180 deg F, Media: Water, 5-1/2 in Inlet to Outlet Length, Bronze Body, EPDM O-Ring Softgoods, 6 in H x 2-3/4 in D, Domestic

The Apollo® Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

Specifications

BrandApollo™
Body MaterialBronze
Domestic/ImportDomestic
End StyleSingle Union x FNPT
Nominal Size3/4 in
Pressure Range15 to 75 psig
Series36ELF
Temperature Rating33 to 180 deg F
Dimensions6 in H x 2-3/4 in D
MediaWater
Softgoods MaterialEPDM O-Ring
Inlet to Outlet Length5-1/2 in

Item Features

  • Balanced piston design
  • Stainless steel adjusting screw/nut/screen
  • ASTM A228 spring steel spring
  • UNS C27451 brass union nut/tailpiece
  • Direct acting cartridge style regulator designed for maximum economy and efficiency
  • NSF® grade EPDM diaphragm and seat disc
  • Stainless steel adjusting screw and nut
  • Sealed cage for vault installation
  • Built-In thermal expansion by-pass
  • Large area integral stainless steel strainer
  • Modular seat disc and strainer cartridge
  • High flow/high efficiency design
  • Factory tested and preset at 60 psi
  • Noryl™ cap
