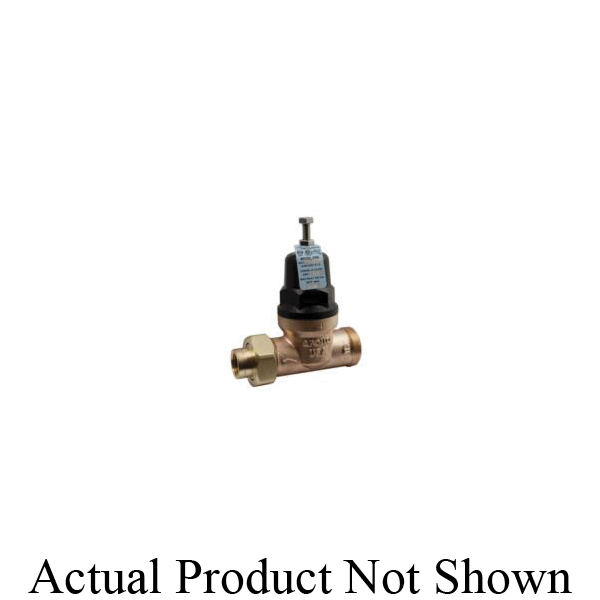

Apollo™ 36ELF11301T

Apollo™ 36ELF11301T 36ELF Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic

CBPN: 199771

UPC:670750511271

MPN:36ELF11301T

Price:
$108.93 / EA
Prop 65:

DESCRIPTION

Apollo™ 36ELF11301T, Pressure Reducing Valve, Series: 36ELF, 1/2 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, 5.53 in Inlet to Outlet Length, Bronze Body, Stainless Steel Trim, EPDM Seat Disc, O-Ring Softgoods, 2-3/4 in W x 6 in H Dimensions, Domestic

The Apollo™ lead free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance designed for easy in-line servicing with simple cartridge removal.

Apollo™ 36ELF11301T 36ELF Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic

CBPN: 199771

MPN:36ELF11301T

UPC:670750511271

Price:
$108.93 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 36ELF11301T, Pressure Reducing Valve, Series: 36ELF, 1/2 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, 5.53 in Inlet to Outlet Length, Bronze Body, Stainless Steel Trim, EPDM Seat Disc, O-Ring Softgoods, 2-3/4 in W x 6 in H Dimensions, Domestic

The Apollo™ lead free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance designed for easy in-line servicing with simple cartridge removal.

Specifications

BrandApollo™
Weight2.4 lbs
Nominal Size1/2 in
End StyleFNPT Union x FNPT
Pressure Range15 to 75 psi
Body MaterialBronze
Dimensions2-3/4 in W x 6 in H
Inlet to Outlet Length5.53 in
Manufacturer NameApollo Conbraco
Series36ELF
Softgoods MaterialEPDM Seat Disc, O-Ring
Temperature Rating33 to 180 deg F
Trim MaterialStainless Steel
ApplicationNon-Potable Applications
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B16 Brass Union Nut | ASTM A228 Stainless Steel Spring | ASSE 1003 | CSA B356 | IAPMO/UPC Listed | NSF/ANSI 372 Lead-Free | TL Certified | cCSAus Certified | NSF/ANSI 61 Water Quality | UNS C27451 Lead-Free Bronze Tailpiece | UNS 89836 Lead-Free Bronze Body | PROP65: Cancer and Reproductive Harm

Item Features

  • Balanced piston design
  • Stainless steel adjusting screw and nut
  • Sealed cage for vault installations
  • Built-in thermal expansion bypass
  • Large area integral stainless steel strainer
  • Modular seat disc and strainer cartridge
  • Control pressure ranges are 15 to 75 psi and 75 to 150 psi
  • Factory tested and preset at 60 psi
  • High flow/high efficiency design
  • With standard materials for non-potable applications
