Apollo™ 3610403

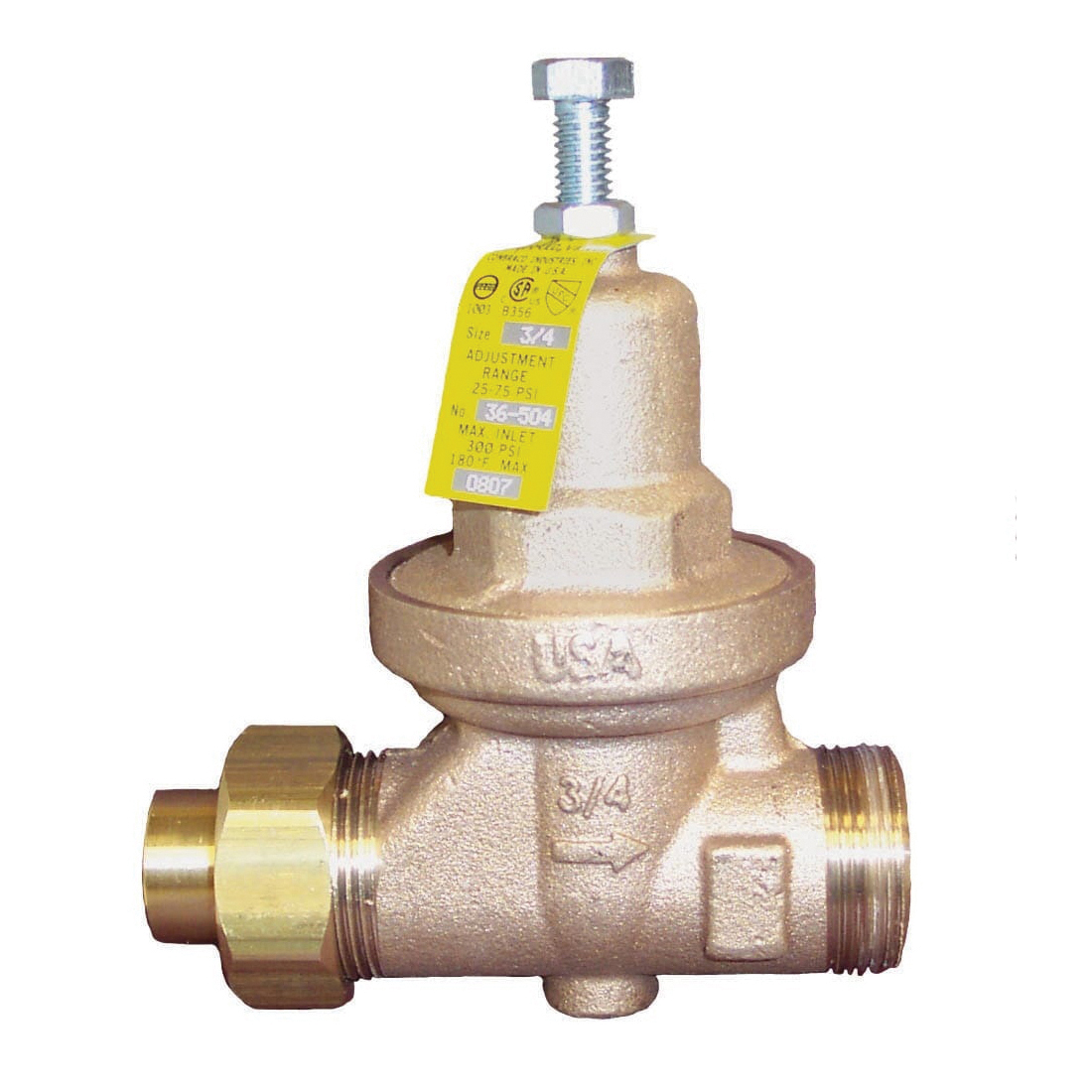

Apollo™ 3610403 36 Series Direct Acting Pressure Reducing Valve, 3/4 in Nominal, Single Union NPT End Style, 75 to 125 psig Pressure, Bronze Body, Domestic

CBPN:247006

UPC:670750562976

MPN:3610403

Price:
$255.99 / EA
Prop 65:

DESCRIPTION

Apollo™ Pressure Reducing Valve, Direct Acting, Series: 36 Series, 3/4 in Nominal, Single Union NPT, 75 to 125 psig, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H, Domestic

Apollo® model PR (36 Series) pressure reducing valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Apollo™ 3610403 36 Series Direct Acting Pressure Reducing Valve, 3/4 in Nominal, Single Union NPT End Style, 75 to 125 psig Pressure, Bronze Body, Domestic

CBPN:247006

MPN:3610403

UPC:670750562976

Price:
$255.99 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Pressure Reducing Valve, Direct Acting, Series: 36 Series, 3/4 in Nominal, Single Union NPT, 75 to 125 psig, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H, Domestic

Apollo® model PR (36 Series) pressure reducing valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Specifications

BrandApollo™
Series36 Series
TypeDirect Acting
Body MaterialBronze
Domestic/ImportDomestic
End StyleSingle Union NPT
Nominal Size3/4 in
Pressure Range75 to 125 psig
Temperature Rating33 to 180 deg F
Dimensions5-7/8 in H
MediaWater
Softgoods MaterialEPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring
Trim MaterialBrass
Inlet to Outlet Length5-5/8 in
Weight3.4 lbs
Standards ApprovalsASSE 1003,ASTM B584 Bronze Body/Cover,ASTM B16 Stem,CSA B356,FDA Approved,UPC Listed

Item Features

  • Corrosion resistant bronze body and bonnet
  • 100% factory tested, preset to 50 psi (-01)
  • Control pressure ranges 10 to 35 psi, 25 to 75 psi (standard), 75 to 125 psi
  • Integral stainless steel strainer
  • Balanced piston design
  • Internal thermal expansion by pass
  • Multiple connection options
  • Optional pressure gauge or tapping
  • Up to 300 psig maximum supply pressure
  • Bronze cover, FDA grade buna with polyester diaphragm, FDA grade EPDM seat disc, stainless steel spring
  • High and low pressure model options
  • Non-potable
