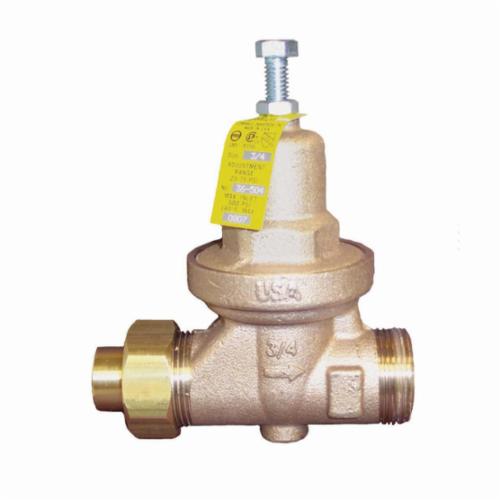

Apollo™ 3610301 36 Pressure Reducing Valve, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic
CBPN:183643
UPC:670750562877
MPN:3610301
Price:
$259.24 / EA
Prop 65:
DESCRIPTION
Apollo™, 3610301, Pressure Reducing Valve, Series: 36, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H x 2-3/4 in D Dimensions, Domestic
Apollo® Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
Apollo™ 3610301 36 Pressure Reducing Valve, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, Bronze Body, Domestic
CBPN:183643
MPN:3610301
UPC:670750562877
Price:
$259.24 / EA
Prop 65:
DESCRIPTION
Apollo™, 3610301, Pressure Reducing Valve, Series: 36, 1/2 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H x 2-3/4 in D Dimensions, Domestic
Apollo® Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
Specifications
Brand: Apollo™
Weight: 3.5lbs
Body Material: Bronze
End Style: Single Union NPT
Nominal Size: 1/2 in
Series: 36
Temperature Rating: 33 to 180 deg F
Pressure Range: 25 to 75 psi
Dimensions: 5-7/8 in H x 2-3/4 in D
Media: Water
Softgoods Material: EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring
Trim Material: EPDM/Brass
Inlet to Outlet Length: 5-5/8 in
Manufacturer Name: Apollo Conbraco
Application: Residential and Commercial Water Distribution Systems
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE 1003 | ASTM B584 Valve Body | CSA B356 | PROP65: Cancer and Reproductive Harm
Item Features
- Corrosion resistant bronze body and bonnet
- Integral stainless steel strainer
- Balanced piston design
- Internal thermal expansion by-pass
- Multiple connection options
- Optional pressure gauge or tapping
- Stainless steel spring
- Bronze cover
- 100% factory tested, preset to 50 psi
- EPDM seat disc
- Buna-N with polyester diaphragm
