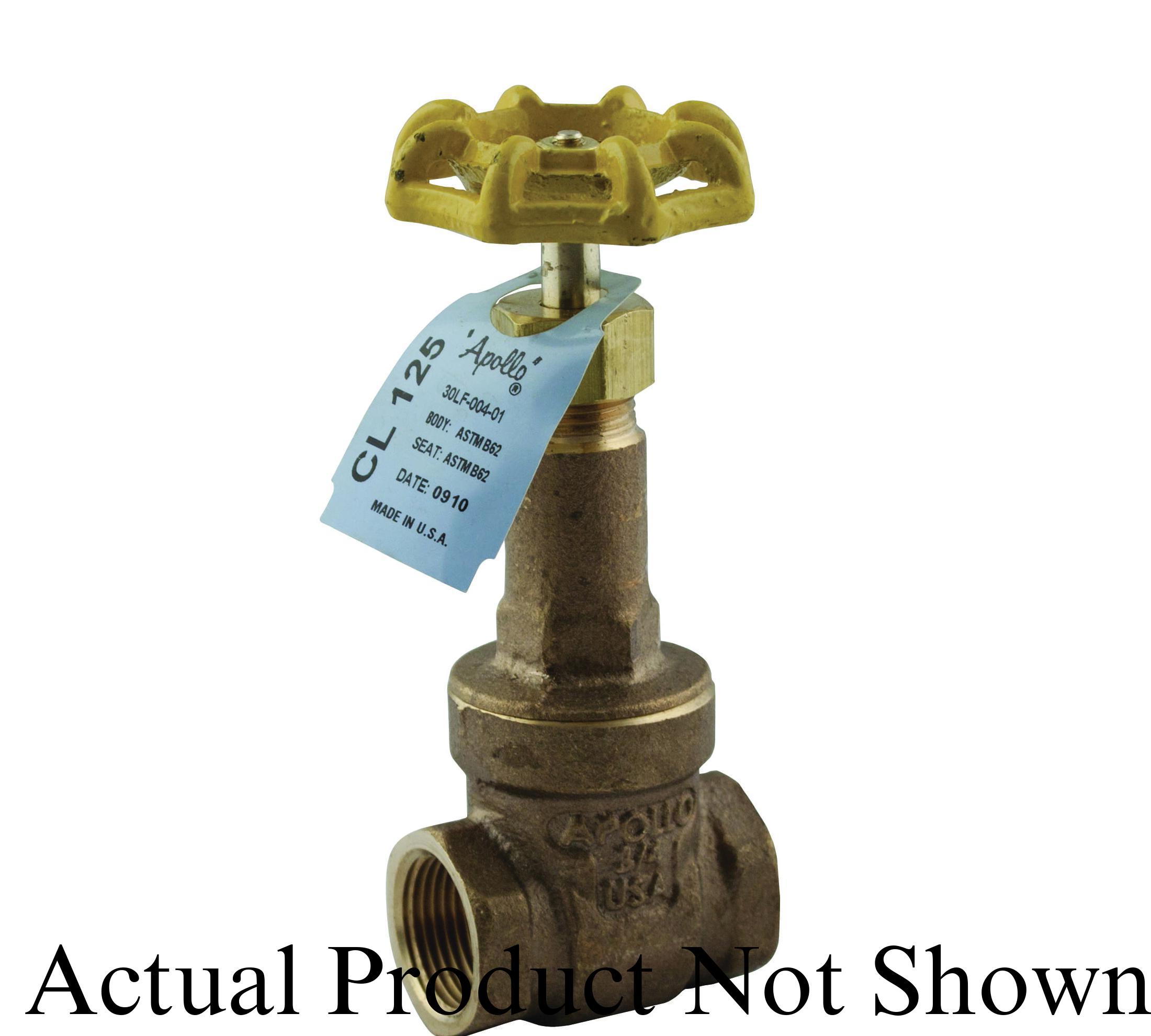

Apollo™ 30LF00501 30LF, 101T1LF Lead Free Rising Stem Gate Valve, 1 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN: 208637
UPC:670750619298
MPN:30LF00501
Price:
$182.94 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Lead Free Rising Stem, Series: 30LF, 1 in Nominal, FNPT End Style, 200/125 psi Pressure, 125 lb Pressure Class, -20 to 406 deg F, 72.3 gpm Flow Rate, Handwheel Actuator, Bronze Body, Grafoil® Packing Softgoods, 2.45 in L x 6.71 in H Dimensions, Domestic
The lead free Apollo™ model 101T-LF (30LF series) gate valve provides a made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality lead free materials.
Apollo™ 30LF00501 30LF, 101T1LF Lead Free Rising Stem Gate Valve, 1 in Nominal, FNPT End Style, 125 lb, Lead Free Bronze Body, Handwheel Actuator, Domestic
CBPN: 208637
MPN:30LF00501
UPC:670750619298
Price:
$182.94 / EA
Prop 65:
DESCRIPTION
Apollo™ Gate Valve, Lead Free Rising Stem, Series: 30LF, 1 in Nominal, FNPT End Style, 200/125 psi Pressure, 125 lb Pressure Class, -20 to 406 deg F, 72.3 gpm Flow Rate, Handwheel Actuator, Bronze Body, Grafoil® Packing Softgoods, 2.45 in L x 6.71 in H Dimensions, Domestic
The lead free Apollo™ model 101T-LF (30LF series) gate valve provides a made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality lead free materials.
Specifications
Brand: Apollo™
Weight: 2.16 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 125 lb
Body Material: Lead Free Bronze
Softgoods Material: Grafoil
Actuator Type: Handwheel
Dimensions: 6.71 in H x 2.45 in L
Flow Rate: 72.3 gpm
Manufacturer Name: Apollo Conbraco
Pressure Rating: 200 psi CWP
Series: 101T-LF
Temperature Rating: -20 to 406 deg F
Type: Lead Free Rising Stem
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | MSS SP-80 | NSF/ANSI 61-8 2010 | NSF 372 | ASME B1.20.1 | PROP65: Cancer and Reproductive Harm
Item Features
- Full port design
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection
- 100% factory tested
