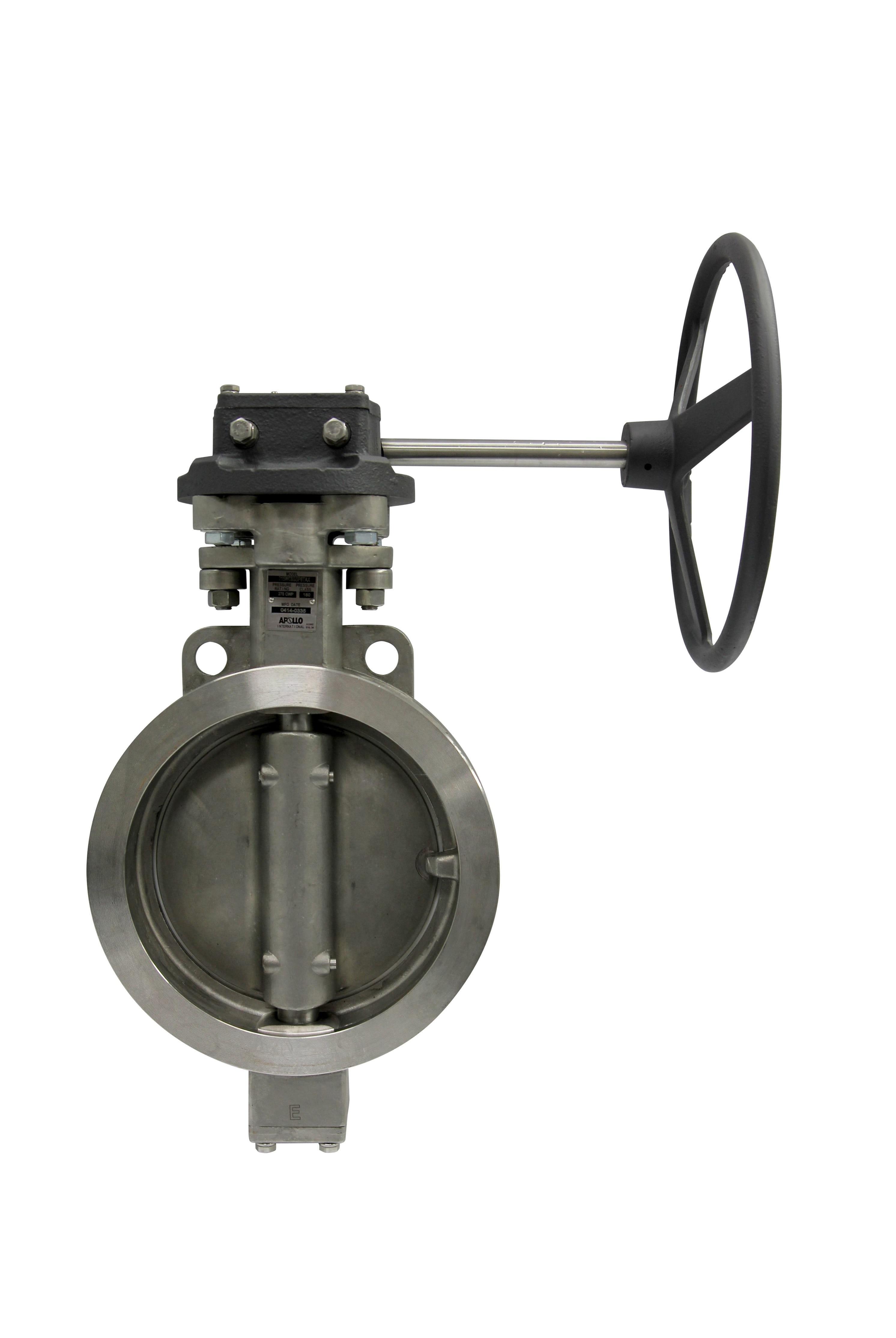

Apollo™ 260W10CSP2MA2

Apollo™ 260W10CSP2MA2 Wafer Style Butterfly Valve, 10 in Nominal, 600 lb, Carbon Steel Body, PTFE Softgoods, Domestic

CBPN:246345

UPC:670750537400

MPN:260W10CSP2MA2

Price:
$8352.54 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:

Apollo™ Butterfly Valve, Wafer Style, Series: 260W, 10 in Nominal, 600 lb, Media: Steam, Worm Gear Operated Actuator, 13.386 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/(Disc Pin) Stem & Pin Material, PTFE, Domestic

Apollo™ 260W10CSP2MA2 Wafer Style Butterfly Valve, 10 in Nominal, 600 lb, Carbon Steel Body, PTFE Softgoods, Domestic

CBPN:246345

MPN:260W10CSP2MA2

UPC:670750537400

Price:
$8352.54 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

Prop 65:
Apollo Valve Logo

Apollo™ Butterfly Valve, Wafer Style, Series: 260W, 10 in Nominal, 600 lb, Media: Steam, Worm Gear Operated Actuator, 13.386 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/(Disc Pin) Stem & Pin Material, PTFE, Domestic

Specifications

BrandApollo™
Body MaterialCarbon Steel
Domestic/ImportDomestic
Nominal Size10 in
Series260W
TypeWafer Style
Actuator TypeWorm Gear Operated
MediaSteam
Pressure Class600 lb
Softgoods MaterialPTFE
Disc Material316 Stainless Steel
Stem & Pin Material17-4PH Stainless Steel (Stem)/(Disc Pin)
Top to Inlet Center13.386 in
Weight284.31 lbs

Item Features

  • Standard Apollo™ high performance butterfly valves are rated for 29 in Hg vacuum
  • Seat retainer- Reliable multi-bolt retainer holds and supports the seat
  • Corrosion protection - Polyamide epoxy primer with high performance polyurethane topcoat is the standard finish for carbon steel valve bodies
  • Stem (blow-out proof) - 17-4 PH stainless steel stem with high strength, and good corrosion resistance, designed per API 609 standard
  • Anti-extrusion ring (under stem seals) - Prevents the extrusion of stem seals, maintaining optimum seal
  • Bearing (lower and upper) - Full length provides maximum stem support
  • Seat - An advanced free floating, pressure assisted, solid seat design provides an interference and pressure assisted seal
  • Tangential disc pins - 17-4 PH stainless steel disc pins are tangentially positioned, placing them in compression rather than shear
  • Thrust ring - Centers the disc, ensures tight shut-off and long service life, made of 316 stainless steel
  • PTFE end cap seal/stem packing
  • 316 stainless steel (metal seated)
  • Standard Apollo™ special service
  • Double offset high performance butterfly valve
  • ISO 5211 mounting flange - universal mounting dimensions simplify valve actuation
  • Rocker packing gland - Shaped packing gland compensates for uneven adjustment of gland nuts
  • Extended neck - Allows for 2 in of pipe insulation
  • Positive cast disc stop - Prevents seat damage from over-travel of the disc beyond the closed position
  • Jacking taps - Allows the use of seat retainer bolts to aid in retainer removal
