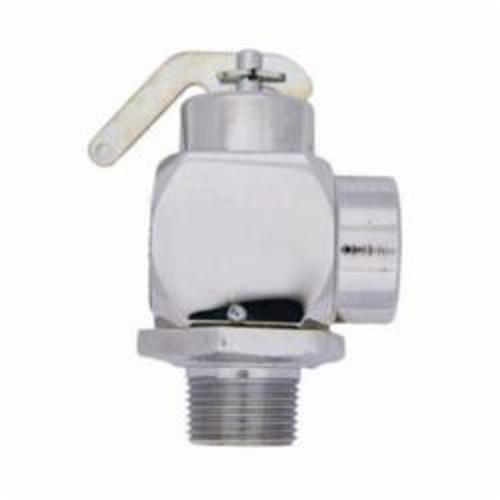

Apollo™ 10322P25 10-322 Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 25 psi Set Pressure, Brass Body, Domestic
CBPN:150249
UPC:670750109560
MPN:10322P25
Price:
$221.77 / EA
Prop 65:
DESCRIPTION
Apollo™, 10322P25, Safety Relief Valve, Series: 10-322, 3/4 in Nominal, MNPT x FNPT End Style, 25 psi Set Pressure, 325 deg F, Media: Air/Gas/Liquid/Steam, Brass Body, EPDM Seat Softgoods, Polished Chrome, 3-3/4 in H Dimensions, Domestic
ASME section VIII design certified safety valve to protect portable steam vessel applications such as autoclaves, sterilizers and pressure cookers against excess build-up. Made from proved ASTM grade brass with optional decorative chrome finish.
Apollo™ 10322P25 10-322 Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 25 psi Set Pressure, Brass Body, Domestic
CBPN:150249
MPN:10322P25
UPC:670750109560
Price:
$221.77 / EA
Prop 65:
DESCRIPTION
Apollo™, 10322P25, Safety Relief Valve, Series: 10-322, 3/4 in Nominal, MNPT x FNPT End Style, 25 psi Set Pressure, 325 deg F, Media: Air/Gas/Liquid/Steam, Brass Body, EPDM Seat Softgoods, Polished Chrome, 3-3/4 in H Dimensions, Domestic
ASME section VIII design certified safety valve to protect portable steam vessel applications such as autoclaves, sterilizers and pressure cookers against excess build-up. Made from proved ASTM grade brass with optional decorative chrome finish.
Specifications
Brand: Apollo™
Weight: 1.28lbs
Body Material: Brass
End Style: MNPT x FNPT
Nominal Size: 3/4 in
Series: 10-322
Temperature Rating: 325 deg F
Finish: Polished Chrome
Dimensions: 3-3/4 in H
Media: Air/Gas/Liquid/Steam
Set Pressure: 25 psi
Softgoods Material: EPDM Seat
Trim Material: Brass
Manufacturer Name: Apollo Conbraco
Application: Steam Carpet, Jewelry Cleaners, Autoclaves, Sterilizers, Commercial Pressure Cookers, Steam Jacketed Kettles, Dental Equipment, Coffee Makers and Similar Equipment
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME Section VIII Certified | ASTM B16 Body | CRN 0G8547.5C | CE Marked | NB Certified | Pressure Equipment Directive 2014/68/EU (PED) | PROP65: Cancer and Reproductive Harm
Item Features
- Corrosion resistant construction
- Stainless steel springs are standard
- Small physical size
- Discharge capacities to 725 lb/hr
- Soft seating for exceptional seat tightness
- Zinc plated steel handle
