Zoeller® 803-0001

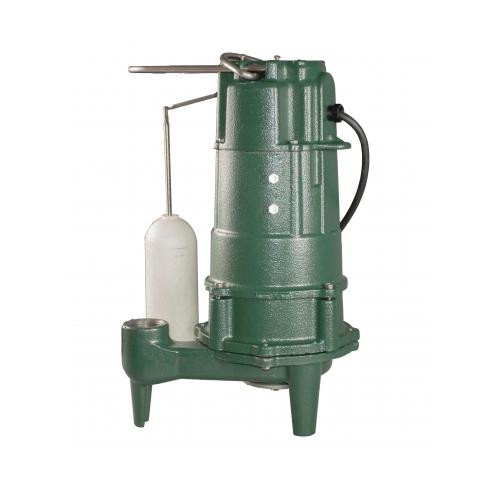

Zoeller® 803-0001 803 Grinder Pump, 35 gpm Max Flow, Automatic, 55 ft Max Head, 115 V, 1 Phase, 1/2 HP

CBPN: 283668

UPC:053514365080

MPN:803-0001

Price:
$1161.75 / ea

DESCRIPTION

Zoeller®, 803-0001, Grinder Pump, Series: 803, 35 gpm Maximum, Automatic/Non Automatic: Automatic, 1-1/4 in NPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 V, 7 to 11 A, 60 Hz Frequency, 1 ph, 3400 rpm Motor, 15 ft Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper and Lower Ball Bearing, Cast Iron, 17-1/4 in H x 8-29/32 in W x 13 in L Dimensions

Zoeller® 803-0001 803 Grinder Pump, 35 gpm Max Flow, Automatic, 55 ft Max Head, 115 V, 1 Phase, 1/2 HP

CBPN: 283668

MPN:803-0001

UPC:053514365080

Price:
$1161.75 / ea

Zoeller Pump Logo

DESCRIPTION

Zoeller®, 803-0001, Grinder Pump, Series: 803, 35 gpm Maximum, Automatic/Non Automatic: Automatic, 1-1/4 in NPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 V, 7 to 11 A, 60 Hz Frequency, 1 ph, 3400 rpm Motor, 15 ft Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper and Lower Ball Bearing, Cast Iron, 17-1/4 in H x 8-29/32 in W x 13 in L Dimensions

Specifications

BrandZoeller®
Weight65 lbs
Maximum Flow Rate35 gpm
Maximum Head55 ft
Voltage Rating115 V
Phase1
Amperage Rating7 to 11 A
Automatic/Non AutomaticAutomatic
Bearing TypeUpper and Lower Ball
Cord Type15 ft
Dimensions17-1/4 in H x 8-29/32 in W x 13 in L
Frequency Rating60 Hz
Horsepower1/2 hp
Impeller TypeNon-Clogging Vortex
Manufacturer NameZoeller Company
MaterialCast Iron
Motor Speed3400 rpm
Outlet Size1-1/4 in NPT
Series803
Temperature Rating130 deg F
IncludesVertical Float Switch
ApplicationResidential wastewater and Light commercial
Warranty3 Years
Standards and ApprovalscCSAus Certified | SSPMA Certified | UL listed

Item Features

  • The sewer sump pump is available in three different horsepower capacities, enabling you to match the power output to the applications requirements
  • This strong grinder pump delivers reliable results over substantial distances, providing maximum user flexibility
  • The low price point of this fractional horsepower grinder series ensures affordability and an excellent return on investment
  • This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications
  • Three independent cutting channels provide over 250000 cuts per minute
  • This feature enables the pump to cut through challenging materials while also providing excellent corrosion protection
  • Get the flexibility to select a manually operated or self-directed product based on your needs and applications
  • Our factory-tested grinder pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures
  • The Shark grinder pump series features patented technology that is unavailable from competing products and delivers one-of-a-kind performance
  • This single-direction grinder pump series comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
  • These high-quality grinder pump systems offer a host of advanced features providing numerous benefits for contractors and homeowners
  • Cast iron grinder series for difficult residential applications where ejectors struggle
  • These fractional-horsepower grinder pumps can handle an entire household of flushable materials
  • This Shark product line consists of three high-performing grinder pumps for sewer use
  • Plumbing contractors can utilize this cast iron grinder series for demanding residential applications
