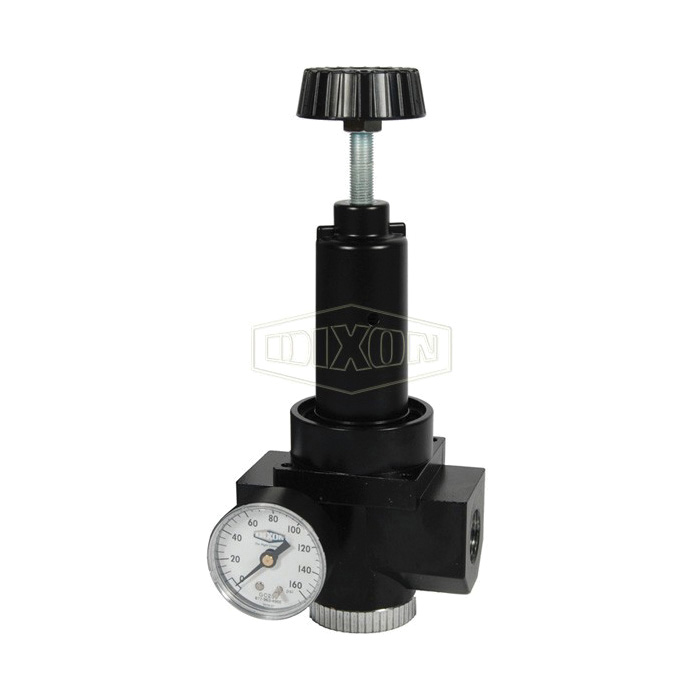

Wilkerson® by Dixon® R30-06RG Self-Relieving Standard High Flow Regulator With GC230 Gauge, 3/4 in NPT/BSPP-G, 481 scfm Flow Rate, 0 to 125 psig Pressure
CBPN: 16430
UPC:089109767151
MPN:R30-06RG
Price:
$265.80 / EA
DESCRIPTION
Wilkerson® by Dixon® High Flow Regulator, Self-Relieving Standard, Series: R30, 3/4 in NPT/BSPP-G, 481 scfm, 0 to 125 psig, 32 to 150 deg F, Zinc
Wilkerson® by Dixon® R30-06RG Self-Relieving Standard High Flow Regulator With GC230 Gauge, 3/4 in NPT/BSPP-G, 481 scfm Flow Rate, 0 to 125 psig Pressure
CBPN: 16430
MPN:R30-06RG
UPC:089109767151
Price:
$265.80 / EA
DESCRIPTION
Wilkerson® by Dixon® High Flow Regulator, Self-Relieving Standard, Series: R30, 3/4 in NPT/BSPP-G, 481 scfm, 0 to 125 psig, 32 to 150 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 5.97 lbs
Port Size: 3/4 in NPT/BSPP-G
Flow Rate: 481 scfm
Pressure Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: R30
Temperature Rating: 32 to 150 deg F
Type: Self-Relieving Standard
Application: For increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
Item Features
- Piston operated
- (1) 1/4 in NPT gauge port standard, can be used for additional outlet ports
- To increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
