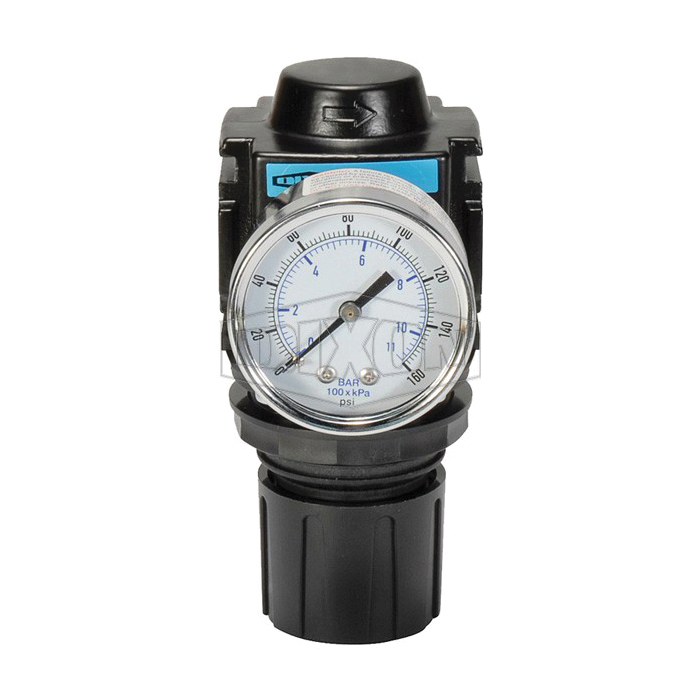

Wilkerson® by Dixon® R18-04RG 1 Series Self-Relieving Standard Compact Regulator With GC230 Gauge, 1/2 in NPT/BSPP-G, 97 scfm Flow Rate, 0 to 125 psig Adjustable Pressure
CBPN: 171595
UPC:089109886661
MPN:R18-04RG
Price:
$77.59 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Regulator, Self-Relieving Standard, Series: 1 Series R18, 1/2 in NPT/BSPP-G, 97 scfm, 0 to 125 psig Adjustable, 32 to 150 deg F, Zinc
Wilkerson® by Dixon® R18-04RG 1 Series Self-Relieving Standard Compact Regulator With GC230 Gauge, 1/2 in NPT/BSPP-G, 97 scfm Flow Rate, 0 to 125 psig Adjustable Pressure
CBPN: 171595
MPN:R18-04RG
UPC:089109886661
Price:
$77.59 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Regulator, Self-Relieving Standard, Series: 1 Series R18, 1/2 in NPT/BSPP-G, 97 scfm, 0 to 125 psig Adjustable, 32 to 150 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.54 lbs
Port Size: 1/2 in NPT/BSPP-G
Flow Rate: 97 scfm
Pressure Range: 0 to 125 psig Adjustable
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: 1 Series R18
Temperature Rating: 32 to 150 deg F
Type: Self-Relieving Standard
Item Features
- (2) 1/4 in NPT gauge ports located on the front and rear faces of the body
- These ports may be used as additional regulated ports or for pressure gauges
- To increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
