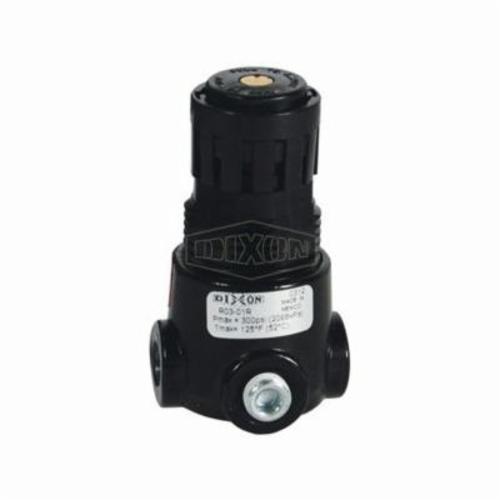

Wilkerson® by Dixon® R03-01R Self-Relieving Standard Miniature Regulator Without Gauge, 1/8 in NPT, 13 scfm Flow Rate, 0 to 300 psig/2 to 125 psi Adjustable Secondary Pressure
CBPN:129039
MPN:R03-01R
Price:
$27.60 / EA
DESCRIPTION
Wilkerson® by Dixon® Miniature Regulator, Self-Relieving Standard, Series: R03, 1/8 in NPT, 13 scfm, 0 to 300 psig/2 to 125 psi Adjustable Secondary, 32 to 125 deg F, Zinc
Wilkerson® by Dixon® R03-01R Self-Relieving Standard Miniature Regulator Without Gauge, 1/8 in NPT, 13 scfm Flow Rate, 0 to 300 psig/2 to 125 psi Adjustable Secondary Pressure
CBPN:129039
MPN:R03-01R
Price:
$27.60 / EA
DESCRIPTION
Wilkerson® by Dixon® Miniature Regulator, Self-Relieving Standard, Series: R03, 1/8 in NPT, 13 scfm, 0 to 300 psig/2 to 125 psi Adjustable Secondary, 32 to 125 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 0.43lbs
Flow Rate: 13 scfm
Material: Zinc
Series: R03
Temperature Rating: 32 to 125 deg F
Type: Self-Relieving Standard
Port Size: 1/8 in NPT
Pressure Range: 0 to 300 psig/2 to 125 psi Adjustable Secondary
Manufacturer Name: Dixon Valve & Coupling
Warranty: Limited
Item Features
- Balanced valve design
- Non-rising push/pull locking adjustment knob
- (2) 1/8 in NPT gauge ports standard, can be used for additional outlet
