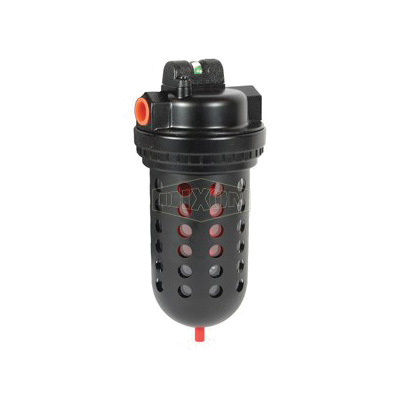

Wilkerson® by Dixon® M30-08A Jumbo Modular Coalescing Filter With Bowl Guard, 1 in NPT/BSPP-G Port, 150 psig Pressure Range, 203 scfm Flow Rate, 0.01 Micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN: 252315
MPN:M30-08A
Price:
$593.80 / EA
DESCRIPTION
Wilkerson® by Dixon® Jumbo Modular Coalescing Filter, Series: M30, 1 in NPT/BSPP-G, 203 scfm, 0.01 Micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, 10.8 in Overall Length, Zinc
Wilkerson® by Dixon® M30-08A Jumbo Modular Coalescing Filter With Bowl Guard, 1 in NPT/BSPP-G Port, 150 psig Pressure Range, 203 scfm Flow Rate, 0.01 Micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN: 252315
MPN:M30-08A
Price:
$593.80 / EA
DESCRIPTION
Wilkerson® by Dixon® Jumbo Modular Coalescing Filter, Series: M30, 1 in NPT/BSPP-G, 203 scfm, 0.01 Micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, 10.8 in Overall Length, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 5.78 lbs
Port Size: 1 in NPT/BSPP-G
Flow Rate: 203 scfm
Filter Rating: 0.01 micron
Pressure Range: 150 psig
Temperature Rating: 32 to 125 deg F
Bowl Material: Polycarbonate
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Overall Length: 10.8 in
Series: M30
Application: For the removal of extremely fine oil mists, oil aerosols and microscopic particles
Standards and Approvals: ISO Class 1
Item Features
- Automatic drain
- 1 qt bowl
- 0.01 micron type C element
