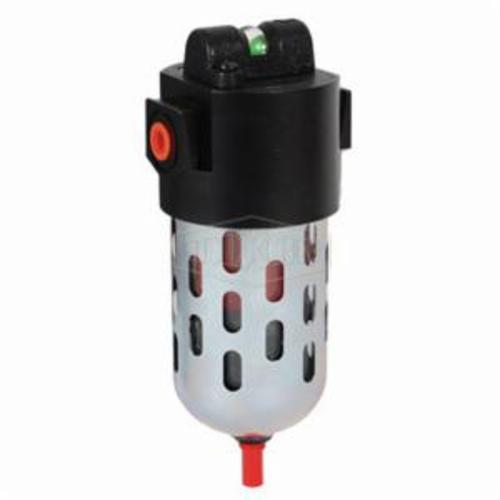

Wilkerson® by Dixon® M26-03A Standard Modular Coalescing Filter With Bowl Guard, 3/8 in NPT/BSPP-G Port, 150 psig Pressure Range, 65.5 scfm Flow Rate, 0.01 Micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN: 252313
MPN:M26-03A
Price:
$335.49 / EA
DESCRIPTION
Wilkerson® by Dixon® Standard Modular Coalescing Filter, Series: M26, 3/8 in NPT/BSPP-G, 65.5 scfm, 0.01 Micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, 8.2 in Overall Length, Zinc
Wilkerson® by Dixon® M26-03A Standard Modular Coalescing Filter With Bowl Guard, 3/8 in NPT/BSPP-G Port, 150 psig Pressure Range, 65.5 scfm Flow Rate, 0.01 Micron, 32 to 125 deg F, Polycarbonate Bowl
CBPN: 252313
MPN:M26-03A
Price:
$335.49 / EA
DESCRIPTION
Wilkerson® by Dixon® Standard Modular Coalescing Filter, Series: M26, 3/8 in NPT/BSPP-G, 65.5 scfm, 0.01 Micron, 150 psig, 32 to 125 deg F, Polycarbonate Bowl, 8.2 in Overall Length, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 2.585 lbs
Port Size: 3/8 in NPT/BSPP-G
Flow Rate: 65.5 scfm
Filter Rating: 0.01 micron
Pressure Range: 150 psig
Temperature Rating: 32 to 125 deg F
Bowl Material: Polycarbonate
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Overall Length: 8.2 in
Series: M26
Application: For the removal of extremely fine oil mists, oil aerosols and microscopic particles
Warranty: Limited
Standards and Approvals: ISO Class 1
Item Features
- Automatic drain
- 0.01 micron type C element
- Differential pressure indicator changes from green to red with pressure loss
- 10 oz bowl
- Can be installed in modular system
