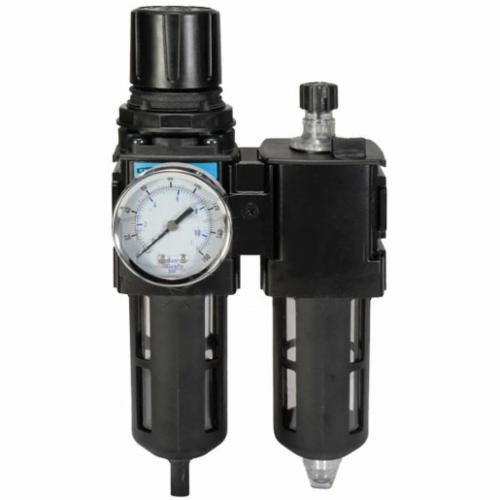

Wilkerson® by Dixon® D18-04M Combination Unit With Manual Drain and Guard, 1/2 in Port, 150 scfm Flow Rate, Polycarbonate Bowl
CBPN: 252428
MPN:D18-04M
Price:
$277.15 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Series: D18, 1/2 in Port, 150 scfm, Polycarbonate Bowl, 0 to 125 psi Adjustment, Zinc
Wilkerson® by Dixon® D18-04M Combination Unit With Manual Drain and Guard, 1/2 in Port, 150 scfm Flow Rate, Polycarbonate Bowl
CBPN: 252428
MPN:D18-04M
Price:
$277.15 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Series: D18, 1/2 in Port, 150 scfm, Polycarbonate Bowl, 0 to 125 psi Adjustment, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 2.98 lbs
Port Size: 1/2 in
Flow Rate: 150 scfm
Bowl Material: Polycarbonate
Adjustment Range: 0 to 125 psi
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: D18
Country of Origin: US
Standards and Approvals: ISO Certified
Item Features
- Transparent bowl and guard
- Light weight, ready-to-mount assembly comes standard with pressure gauge and modular T-bracket/joiner assembly
- Components integrated into single unit
- Modern design and appearance
- Quick-disconnect bowl/bowl guard
- Regulator is self-relieving, with a 0 to 125 psi adjusting range and supplied with a gauge
- High flow capacity
- ABS body cap
- Nylon bonnet and acetal knob
- Nitrile/zinc diaphragm assembly
- Nitrile seal
- Polycarbonate sight dome
- Polyamide (nylon) sight gauge
- Steel main regulating springs and stainless steel valve springs
- Brass/nitrile valve assembly
