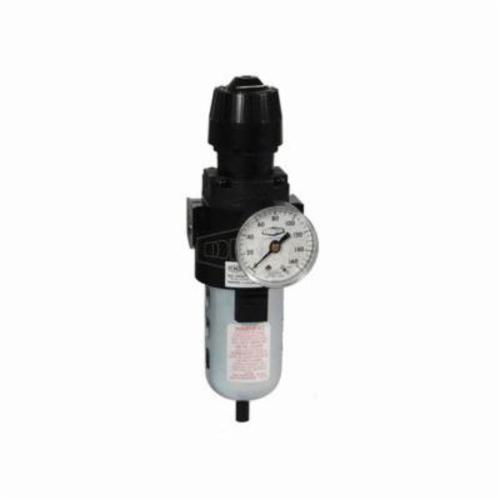

Wilkerson® by Dixon® CB6-02AG Self-Relieving Standard Compact Filter/Regulator With GC230 Gauge and Bowl Guard, 1/4 in NPT/BSPP-G Port, 64 scfm Flow Rate, 150 psig Pressure, Polycarbonate Bowl
CBPN: 238238
UPC:089109886517
MPN:CB6-02AG
Price:
$261.57 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving Standard, Series: CB6, 1/4 in NPT/BSPP-G, 64 scfm, 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Wilkerson® by Dixon® CB6-02AG Self-Relieving Standard Compact Filter/Regulator With GC230 Gauge and Bowl Guard, 1/4 in NPT/BSPP-G Port, 64 scfm Flow Rate, 150 psig Pressure, Polycarbonate Bowl
CBPN: 238238
MPN:CB6-02AG
UPC:089109886517
Price:
$261.57 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving Standard, Series: CB6, 1/4 in NPT/BSPP-G, 64 scfm, 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 2.465 lbs
Port Size: 1/4 in NPT/BSPP-G
Flow Rate: 64 scfm
Pressure Range: 150 psig
Bowl Material: Polycarbonate
Adjustment Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: CB6
Type: Self-Relieving Standard
Warranty: Limited
Item Features
- Automatic drain
- Diaphragm operated
- Two 1/4 in gauge ports located on the front and rear faces of the body, these ports may be used as additional regulated ports or for pressure gauge
- Plug unused port
- 5 micron reusable element
- 5 oz bowl
- Over-under units are space savers and provide for installation in tight areas
- One common inlet/outlet for both filter and regulator saves on piping costs
