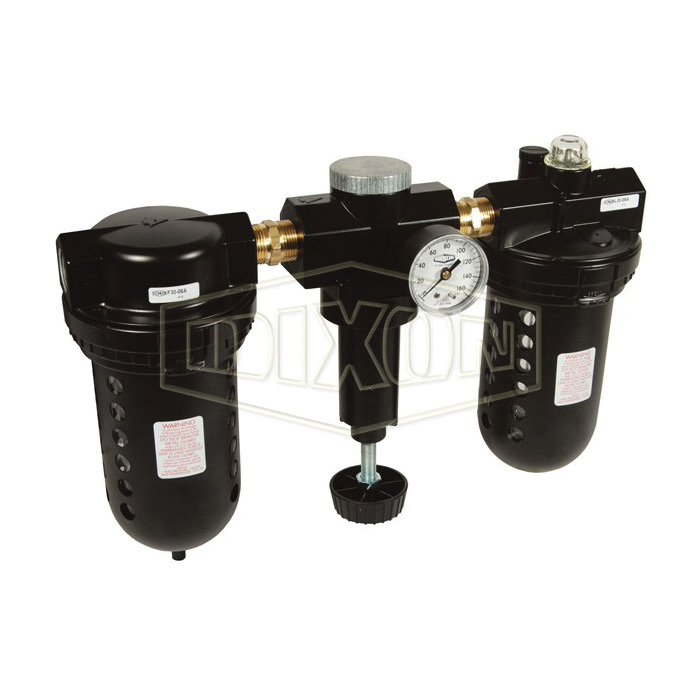

Wilkerson® by Dixon® C31-08A Jumbo Combination Unit With Bowl Guard, 1 in NPT Port, 374 scfm Flow Rate, Polycarbonate Bowl, 0 to 150 psig Pressure
CBPN: 252328
UPC:089109887132
MPN:C31-08A
Price:
$855.33 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Jumbo, Series: C31, 1 in NPT, 374 scfm, 0 to 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Wilkerson® by Dixon® C31-08A Jumbo Combination Unit With Bowl Guard, 1 in NPT Port, 374 scfm Flow Rate, Polycarbonate Bowl, 0 to 150 psig Pressure
CBPN: 252328
MPN:C31-08A
UPC:089109887132
Price:
$855.33 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Jumbo, Series: C31, 1 in NPT, 374 scfm, 0 to 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 16.76 lbs
Port Size: 1 in NPT
Flow Rate: 374 scfm
Bowl Material: Polycarbonate
Pressure Range: 0 to 150 psig
Adjustment Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: C31
Type: Jumbo
Includes: (2) Brass Hex Nipples and (1) GC230 Gauge
Warranty: Limited
Item Features
- Automatic drain
- High flow capacity
- Large bowl reservoir
- F30 series filter has a 5 micron element and a 1 qt bowl
- R30 series regulator is self-relieving with a 0 to 125 psi adjusting range and is supplied with a GC230 gauge
- L30 series lubricator has a 26 oz bowl an adjustable oil feed and a full-view sight dome
