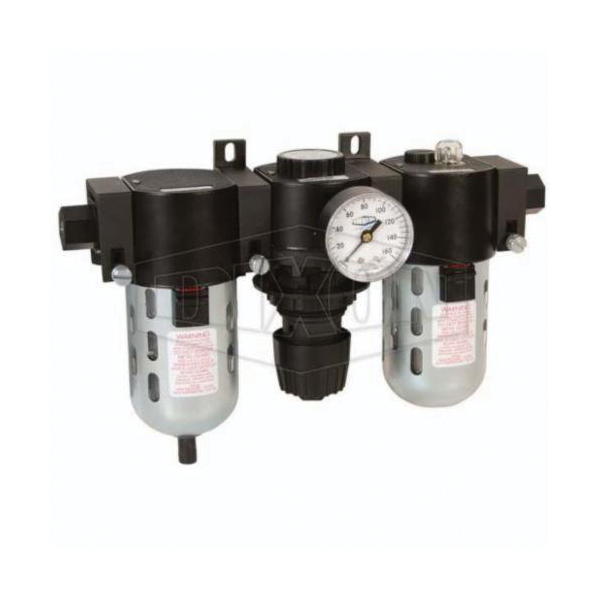

Wilkerson® by Dixon® C26-03A Standard Combination Unit With Guard, 3/8 in NPT Port, 60 scfm Flow Rate, Polycarbonate Bowl, 0 to 150 psig Pressure
CBPN: 252362
MPN:C26-03A
Price:
$695.84 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Standard, Series: C26, 3/8 in NPT, 60 scfm, 0 to 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Wilkerson® by Dixon® C26-03A Standard Combination Unit With Guard, 3/8 in NPT Port, 60 scfm Flow Rate, Polycarbonate Bowl, 0 to 150 psig Pressure
CBPN: 252362
MPN:C26-03A
Price:
$695.84 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Standard, Series: C26, 3/8 in NPT, 60 scfm, 0 to 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 8.678 lbs
Port Size: 3/8 in NPT
Flow Rate: 60 scfm
Bowl Material: Polycarbonate
Pressure Range: 0 to 150 psig
Adjustment Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: C26
Type: Standard
Includes: (2) Modular Sleeves, (2) Mounting Brackets (Sleeve and Bracket), (2) End Blocks and (1) GC230 Gauge
Warranty: Limited
Item Features
- Automatic drain
- F26 series filter has a 5 micron element and a 10 oz bowl
- F26 series regulator is self-relieving with a 0 to 125 psi adjusting range and is supplied with a GC230 gauge
- L26 series lubricator has a 10 oz bowl an adjustable oil feed and a full-view sight dome
