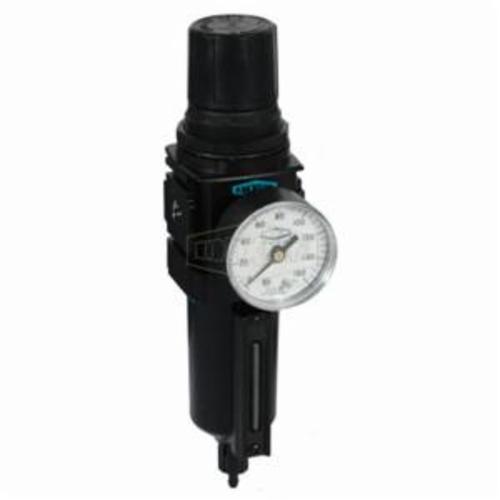

Wilkerson® by Dixon® B18-04AGMB Self-Relieving Compact Filter/Regulator With GC230 Gauge and Sight Glass, 1/2 in NPT/BSPP-G Port, 121 scfm Flow Rate, 250 psig Pressure, Aluminum Bowl
CBPN:185233
UPC:089109886425
MPN:B18-04AGMB
Price:
$176.51 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving, Series: B18, 1/2 in NPT/BSPP-G, 121 scfm, 250 psig, Aluminum Bowl, 10 to 250 psig, Zinc
Wilkerson® by Dixon® B18-04AGMB Self-Relieving Compact Filter/Regulator With GC230 Gauge and Sight Glass, 1/2 in NPT/BSPP-G Port, 121 scfm Flow Rate, 250 psig Pressure, Aluminum Bowl
CBPN:185233
MPN:B18-04AGMB
UPC:089109886425
Price:
$176.51 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving, Series: B18, 1/2 in NPT/BSPP-G, 121 scfm, 250 psig, Aluminum Bowl, 10 to 250 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.76lbs
Flow Rate: 121 scfm
Material: Zinc
Series: B18
Type: Self-Relieving
Port Size: 1/2 in NPT/BSPP-G
Pressure Range: 250 psig
Bowl Material: Aluminum
Adjustment Range: 10 to 250 psig
Manufacturer Name: Dixon Valve & Coupling
Warranty: Limited
Item Features
- Automatic drain
- To increase regulated pressure, pull adjusting knob and turn clockwise
- To reduce pressure, turn knob counter clockwise
- To lock knob, push down
- Spring-loaded diaphragm
- Two 1/4 in gauge ports located on the front and rear faces of the body, these ports may be used as additional regulated ports or for pressure gauges and plugs unused ports
- 5 micron element
- 4 oz bowl
- Over-under units are space savers and provide for installation in tight areas
- One common inlet/outlet for both filter and regulator saves on piping costs
