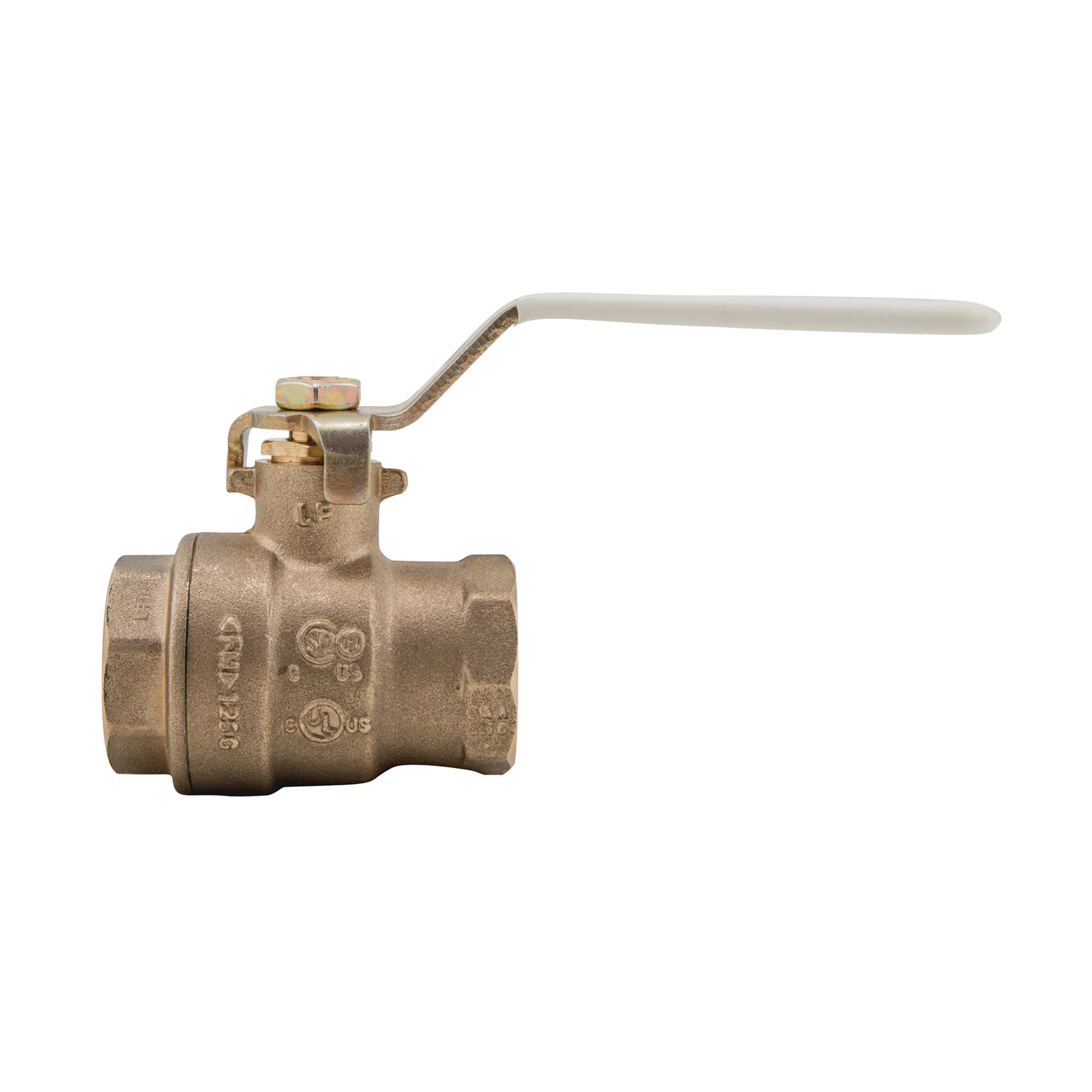

WATTS® 88005598 LFFBV-3C-M1 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Lead Free Brass Body, Full Port, FKM/PTFE Softgoods, Import
CBPN:242656
UPC:098268163742
MPN:88005598
Price:
$9.24 / EA
Prop 65:
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3C-M1, 3/8 in Nominal, FNPT End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 1/2 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 2 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Copper Silicon Alloy Body, Brass/PTFE Trim, FKM/PTFE Softgoods, Import
This 3/8 in 2-piece full port ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. This valve features a lead free brass body and adapter, female threaded end connections, adjustable packing gland, Chrome Plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is -40 to 400 deg F (-40 to 204 deg C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP. Certified NSF-61/ANSI 8, UL listed, and FM approved.
WATTS® 88005598 LFFBV-3C-M1 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Lead Free Brass Body, Full Port, FKM/PTFE Softgoods, Import
CBPN:242656
MPN:88005598
UPC:098268163742
Price:
$9.24 / EA
Prop 65:
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3C-M1, 3/8 in Nominal, FNPT End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 1/2 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 2 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Copper Silicon Alloy Body, Brass/PTFE Trim, FKM/PTFE Softgoods, Import
This 3/8 in 2-piece full port ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. This valve features a lead free brass body and adapter, female threaded end connections, adjustable packing gland, Chrome Plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is -40 to 400 deg F (-40 to 204 deg C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP. Certified NSF-61/ANSI 8, UL listed, and FM approved.
Specifications
Brand: WATTS®
Weight: 0.41lbs
Actuator Type: Lever Handle
Body Material: Lead Free Brass
End Style: FNPT
Nominal Size: 3/8 in
Series: LFFBV-3C-M1
Temperature Rating: -40 to 400 deg F
Type: 2-Piece
Pressure Rating: 150 psi WSP/600 psi WOG
Media: Gas/Liquids
Orifice Size: 1/2 in
Port Type: Full
Softgoods Material: FKM/PTFE
Trim Material: Brass/PTFE
Ball Material: Polished Chrome Brass
Inlet to Outlet Length: 2 in
Manufacturer Name: Watts Water Technologies
Top to Inlet Center: 1-13/16 in
Application: Commercial and Industrial Applications
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ASME B16.33/B16.44 | cCSAus Certified | CSA Certified | FM Approved | MSS-SP-110 | NSF ANSI 61/8 | UL Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Features
- Lead free brass body and adapter
- Machined Chrome Plated lead free brass ball
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Virgin PTFE seat/thrust washer/stem packing
- PTFE seal
- Brass stem
