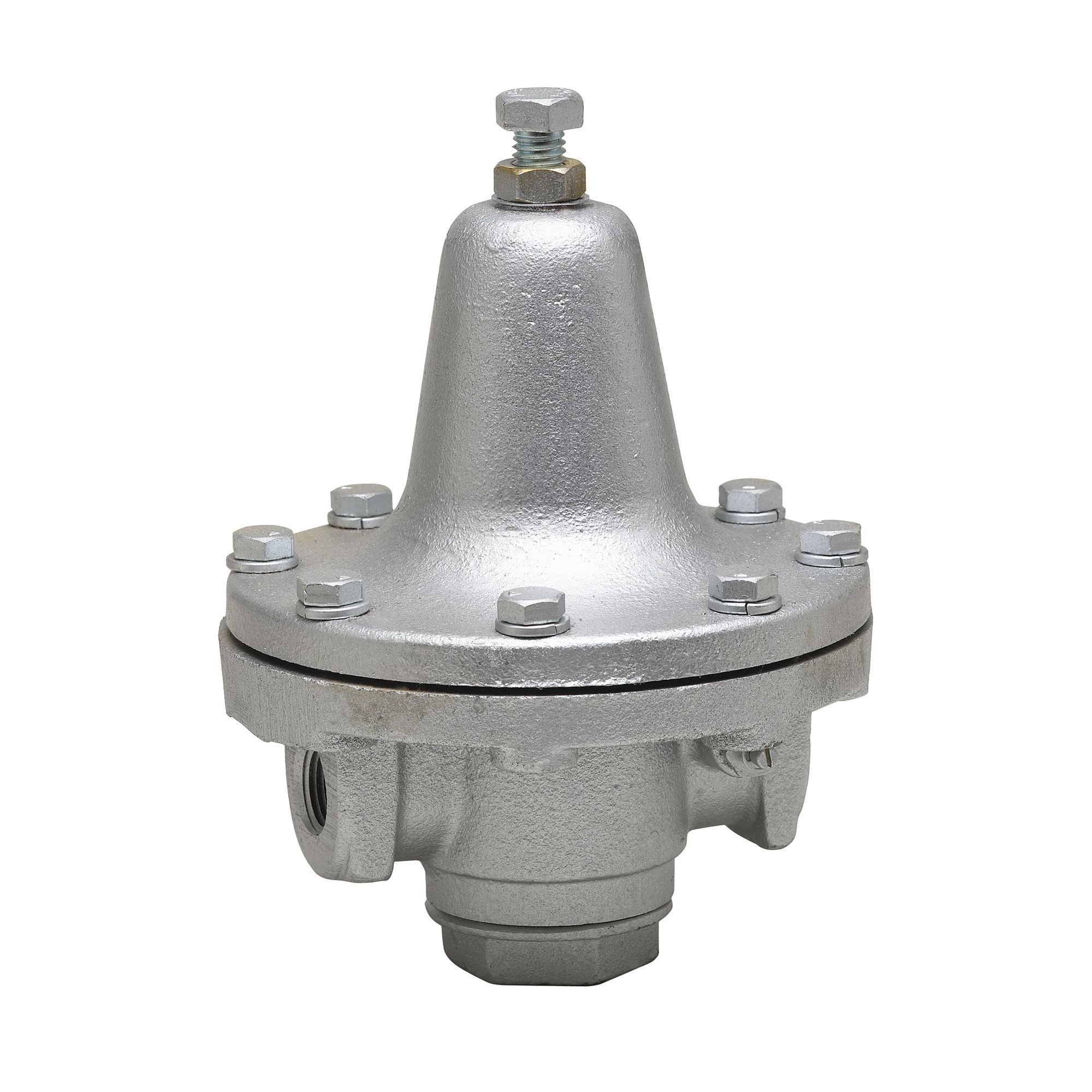

WATTS® 0830945 152A-010030 Process Steam Pressure Regulator, 1 in Nominal, FNPT End Style, 10-30 psi Pressure Range, 400 deg F, Domestic
CBPN: 51960
UPC:098268095951
MPN:0830945
DESCRIPTION
WATTS® Process Steam Pressure Regulator, Series: 152A-010030, 1 in Nominal, FNPT, 200 psi, 400 deg F, Iron Body, Media: Liquid/Steam/Air, Stainless Steel Trim, 7-1/2 in W, Domestic
Series 152A Process Steam Pressure Regulators are used in commercial, industrial, and institutional applications to regulate steam pressure in autoclaves, steam tables/irons, vulcanizes and large capacity process services. It is highly sensitive to reduced pressure changes. It consists of an iron body construction with NPT threaded female inlet and outlet connections, stainless steel strainer, laminated metal diaphragm, and sensitivity adjustment feature for critical flow. Series 152A offers full volume with minimum pressure drop and in-line serviceability. It is ideal for use on sterilizers, process lines, testing fixtures, and oil lines. Tight seating Model 152A-T available for dead end and liquid services. Maximum Supply Pressure: Up to 200 psi (13.8 bar).
WATTS® 0830945 152A-010030 Process Steam Pressure Regulator, 1 in Nominal, FNPT End Style, 10-30 psi Pressure Range, 400 deg F, Domestic
CBPN: 51960
MPN:0830945
UPC:098268095951
DESCRIPTION
WATTS® Process Steam Pressure Regulator, Series: 152A-010030, 1 in Nominal, FNPT, 200 psi, 400 deg F, Iron Body, Media: Liquid/Steam/Air, Stainless Steel Trim, 7-1/2 in W, Domestic
Series 152A Process Steam Pressure Regulators are used in commercial, industrial, and institutional applications to regulate steam pressure in autoclaves, steam tables/irons, vulcanizes and large capacity process services. It is highly sensitive to reduced pressure changes. It consists of an iron body construction with NPT threaded female inlet and outlet connections, stainless steel strainer, laminated metal diaphragm, and sensitivity adjustment feature for critical flow. Series 152A offers full volume with minimum pressure drop and in-line serviceability. It is ideal for use on sterilizers, process lines, testing fixtures, and oil lines. Tight seating Model 152A-T available for dead end and liquid services. Maximum Supply Pressure: Up to 200 psi (13.8 bar).
Specifications
Item Features
- Stainless steel disc
- Serviceable in line
- Highly sensitive response to reduced pressure changes, with ability to maintain full volume without appreciable reduced pressure drop
- Sensitivity adjuster eliminates vibrating that can arise due to critical flow requirements
- Iron body with stainless steel strainer screen, disc and stem guide
- 10 to 30 psi adjustable
