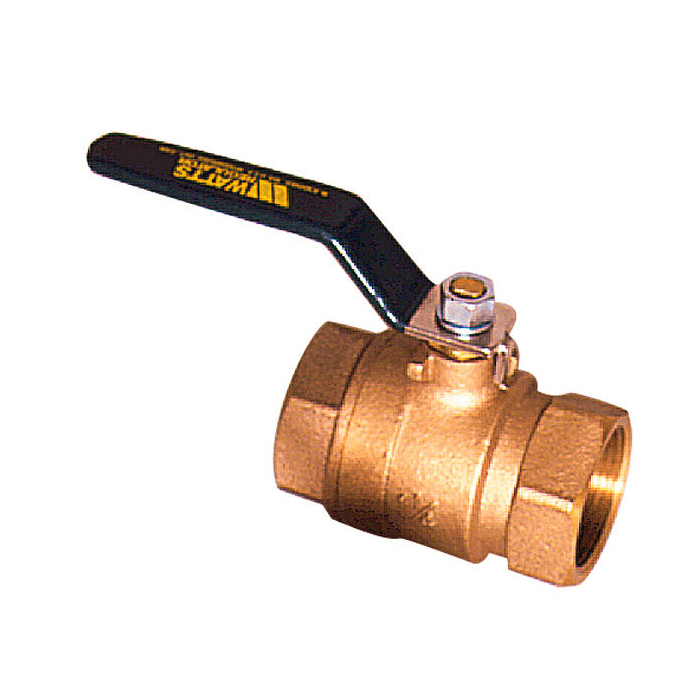

WATTS® 0792507 LFFBV 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Full Port, Virgin® PTFE Softgoods, Import
CBPN: 266877
UPC:098268500417
MPN:0792507
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV, 3/4 in Nominal, FNPT End Style, 600 psi WOG Pressure, 0 to 350 deg F, 30 gpm Flow Rate, Full Port, Media: Gas/Liquids, 3/4 in Orifice, T-Handle Actuator, Chrome Plated Brass Ball, 2-9/16 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Bronze Body, Brass/Virgin® PTFE Trim, Virgin® PTFE Softgoods, Import
This 3/4 in lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin® PTFE seats and seals, a bottom loaded blowout proof stem, and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality WATTS® product. The temperature range is 0 to 350 deg F WOG non-shock at 100 deg F WSP.
WATTS® 0792507 LFFBV 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Full Port, Virgin® PTFE Softgoods, Import
CBPN: 266877
MPN:0792507
UPC:098268500417
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV, 3/4 in Nominal, FNPT End Style, 600 psi WOG Pressure, 0 to 350 deg F, 30 gpm Flow Rate, Full Port, Media: Gas/Liquids, 3/4 in Orifice, T-Handle Actuator, Chrome Plated Brass Ball, 2-9/16 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Bronze Body, Brass/Virgin® PTFE Trim, Virgin® PTFE Softgoods, Import
This 3/4 in lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin® PTFE seats and seals, a bottom loaded blowout proof stem, and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality WATTS® product. The temperature range is 0 to 350 deg F WOG non-shock at 100 deg F WSP.
Specifications
Item Features
- Full port for minimal pressure drop
- Bottom loaded blowout proof stem
- Minimal pressure drop due to full size ports
- Vinyl insulator on heavy duty zinc plated carbon steel handles
- Fast quarter-turn open or close operation
- Excellent for throttling and balancing application of non-abrasive fluids where minimum flow is 20 to 100% of valve capacity
- Low operating torque
- Virgin® PTFE adjustable stem packing gland/thrust washer
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Brass stem shaft/Virgin® PTFE seat
