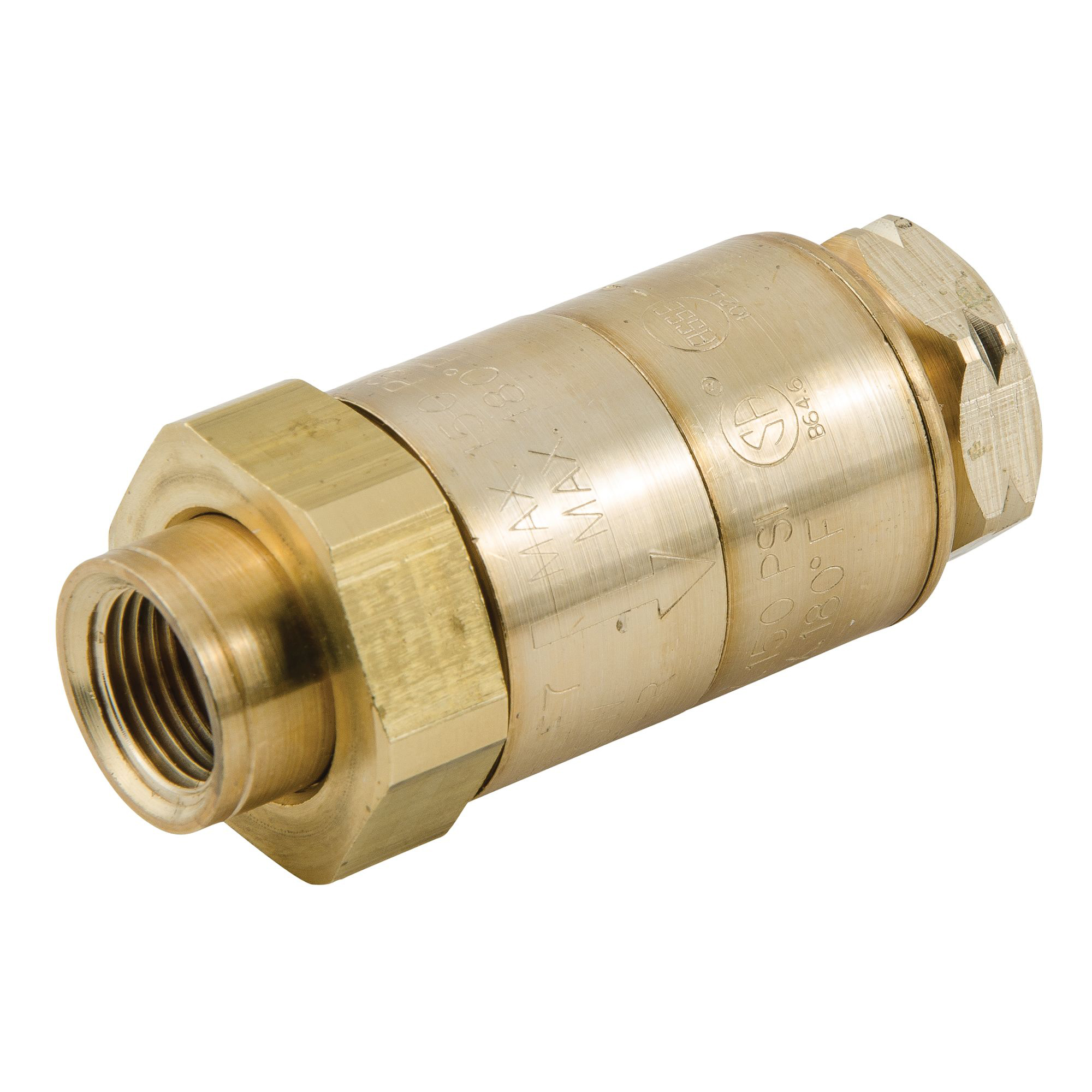

WATTS® 0792076 Dual Check Valve, 3/8 in Nominal, FNPT End Style, Low Lead Compliance: Yes, Cast Lead Free Brass Body, Import
CBPN:174475
UPC:098268434637
MPN:0792076
Price:
$158.95 / EA
Prop 65:
DESCRIPTION
WATTS® Dual Check Valve, 3/8 in Nominal, FNPT, 150 psi, 33 to 180 deg F, Low Lead Compliance: Yes, Media: Water, 2-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, Silicone Disc/Stainless Steel Spring Trim, Buna-N® Seal, 1-1/4 in H, Import
Series LF7 Lead Free Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a Lead Free cast copper silicon alloy body construction, with two plastic replaceable check valves, and stainless steel springs. Series LF7 is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69 kpa) Maximum Working Pressure: 150psi (10 bar).
WATTS® 0792076 Dual Check Valve, 3/8 in Nominal, FNPT End Style, Low Lead Compliance: Yes, Cast Lead Free Brass Body, Import
CBPN:174475
MPN:0792076
UPC:098268434637
Price:
$158.95 / EA
Prop 65:
DESCRIPTION
WATTS® Dual Check Valve, 3/8 in Nominal, FNPT, 150 psi, 33 to 180 deg F, Low Lead Compliance: Yes, Media: Water, 2-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, Silicone Disc/Stainless Steel Spring Trim, Buna-N® Seal, 1-1/4 in H, Import
Series LF7 Lead Free Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a Lead Free cast copper silicon alloy body construction, with two plastic replaceable check valves, and stainless steel springs. Series LF7 is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69 kpa) Maximum Working Pressure: 150psi (10 bar).
Specifications
Brand: WATTS®
Weight: 0.69lbs
Body Material: Lead Free Brass
End Style: FNPT
Nominal Size: 3/8 in
Series: LF7
Temperature Rating: 33 to 180 deg F
Pressure Rating: 150 psi
Dimensions: 1-1/4 in H
Media: Water
Low Lead Compliance: Yes
Softgoods Material: Buna-N® Seal
Trim Material: Silicone Disc/Stainless Steel Spring
Inlet to Outlet Length: 2-7/8 in
Manufacturer Name: Watts Water Technologies
Application: Light Commercial and Residential
Warranty: 1 year Limited
Domestic/Import: Import
Country of Origin: MX
Standards and Approvals: ARRA 2009,ASSE 1024,BAA 1933,CSA B64.6,FM Approved,NSF Approved,UL Listed,ULC Listed,USC Certified ,
Item Features
- No special tools are required for servicing
- Short lay length
- Can be installed in the vertical or horizontal position
- Can be installed in many piping configurations and with a wide range of meter horns, copper setters and meter boxes
