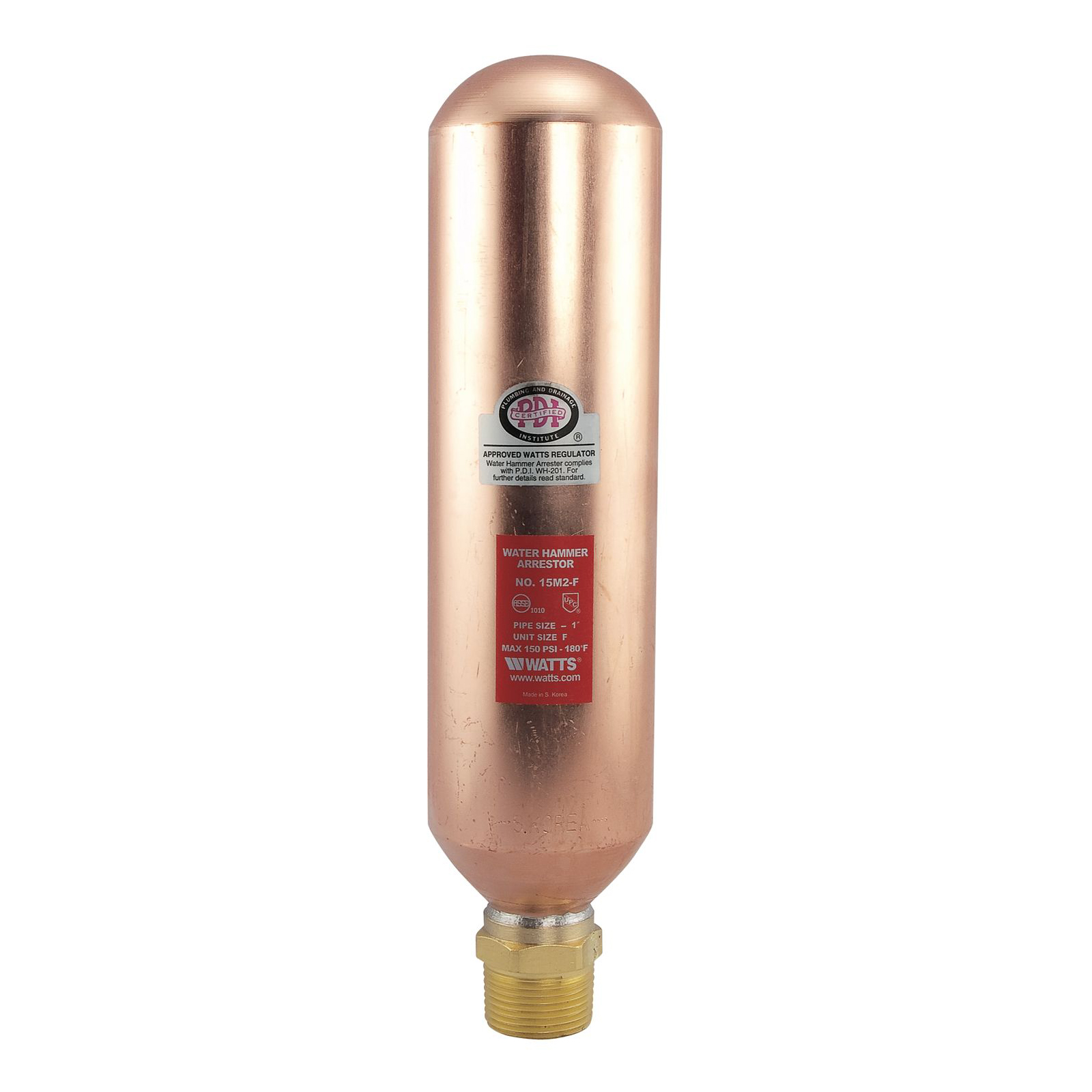

WATTS® 0750165 LF15 Water Hammer Arrester, 1 in Nominal, Thread End Style, 150 psi Pressure, 155 to 330 Fixture Unit, Import
CBPN:160014
UPC:098268526172
MPN:0750165
Price:
$321.77 / EA
Prop 65:
DESCRIPTION
WATTS® Water Hammer Arrester, Series: LF15, 1 in Nominal, Thread End Style, 150 psi Pressure, 155 to 330 Fixture Unit, 33 to 180 deg F, Copper Body, EPDM O-Ring Softgoods, 11-5/32 in L x 2-5/8 in H Dimensions, Domestic/Import: Import
This 1 in, unit size F lead free water hammer Arrester is used in commercial and industrial applications to control water pressure shock and prevent water hammer conditions. It consists of a copper body with a lead free brass NPT hex adapter, EPDM seals and O-rings, polypropylene piston and cap. It is factory air charged at 60 psi and is permanently capped and epoxy sealed to absorb the shock and is not rechargeable. It may be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle and is ideal for commercial dishwashers, washing machine and quick-closing faucets applications. It is designed to operate on all domestic and commercial lines at 150 psi working pressure. This water hammer Arrester, size F is used to cover the required PDI listed 155 to 330 fixture units.
WATTS® 0750165 LF15 Water Hammer Arrester, 1 in Nominal, Thread End Style, 150 psi Pressure, 155 to 330 Fixture Unit, Import
CBPN:160014
MPN:0750165
UPC:098268526172
Price:
$321.77 / EA
Prop 65:
DESCRIPTION
WATTS® Water Hammer Arrester, Series: LF15, 1 in Nominal, Thread End Style, 150 psi Pressure, 155 to 330 Fixture Unit, 33 to 180 deg F, Copper Body, EPDM O-Ring Softgoods, 11-5/32 in L x 2-5/8 in H Dimensions, Domestic/Import: Import
This 1 in, unit size F lead free water hammer Arrester is used in commercial and industrial applications to control water pressure shock and prevent water hammer conditions. It consists of a copper body with a lead free brass NPT hex adapter, EPDM seals and O-rings, polypropylene piston and cap. It is factory air charged at 60 psi and is permanently capped and epoxy sealed to absorb the shock and is not rechargeable. It may be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle and is ideal for commercial dishwashers, washing machine and quick-closing faucets applications. It is designed to operate on all domestic and commercial lines at 150 psi working pressure. This water hammer Arrester, size F is used to cover the required PDI listed 155 to 330 fixture units.
Specifications
Brand: WATTS®
Body Material: Copper
End Style: Thread
Nominal Size: 1 in
Series: LF15
Temperature Rating: 33 to 180 deg F
Pressure Rating: 150 psi
Dimensions: 11-5/32 in L x 2-5/8 in H
Softgoods Material: EPDM O-Ring
Fixture Unit Capacity: 155 to 330
Manufacturer Name: Watts Water Technologies
Application: Commercial Applications
Warranty: 1 year
Domestic/Import: Import
Country of Origin: KR
Standards and Approvals: ANSI A112.26.1M | ASSE 1010 | IAPMO Listed | NSF Approved | PDI WH-201 | US Green Building Council Member | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm For more information go to www.P65Warnings.ca.gov
Item Features
- Lead free brass NPT hex adapter for easy installation
- Factory air charged at 60 psi and is not rechargeable in the field
- May be installed in concealed locations without access panels
- Solder end connection for easy installation
- May be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle
- Maintenance free and piston is the only moving part
- 60 psi air pre-load
- Factory air charged and permanently sealed
- Polypropylene piston
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
