WATTS® 0750162

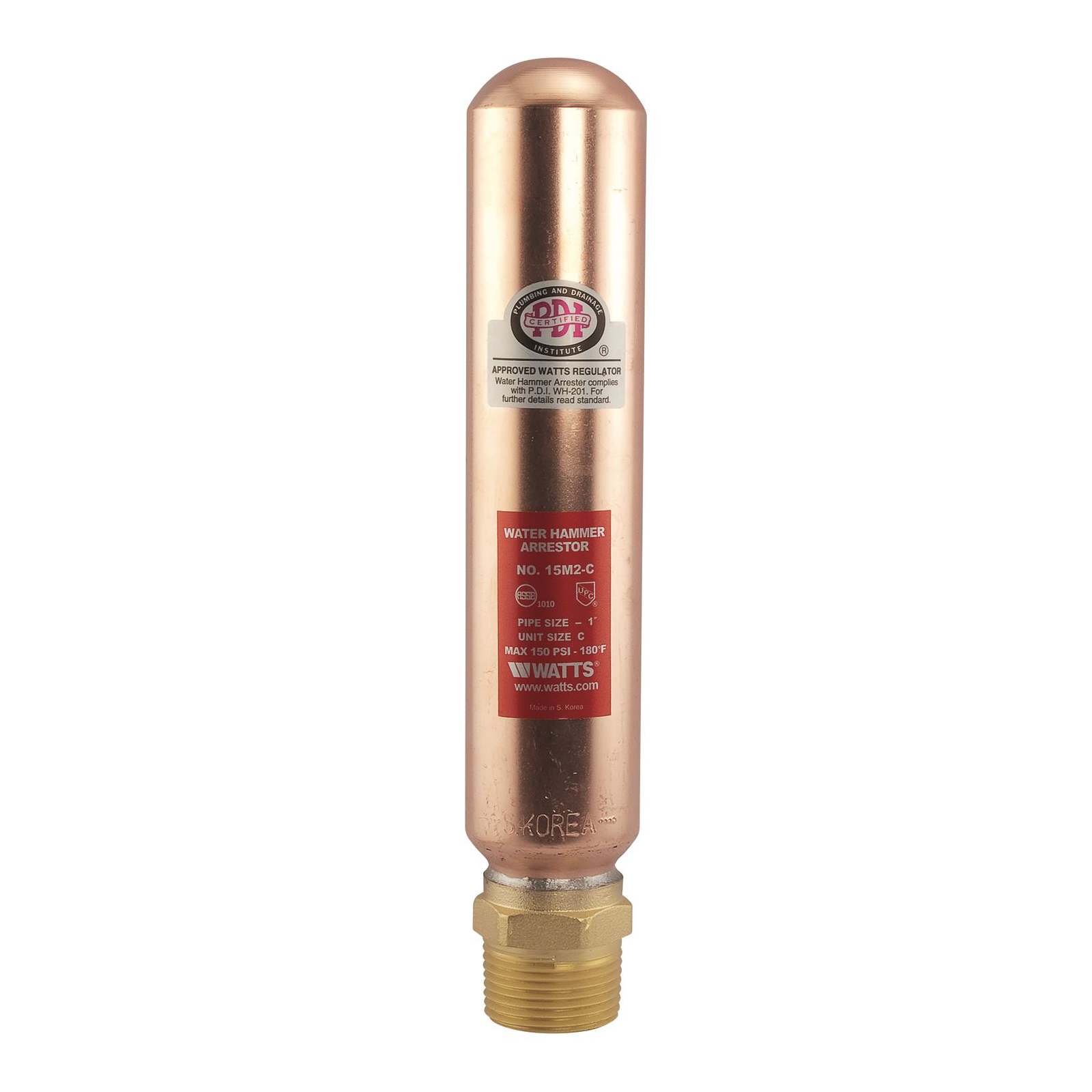

WATTS® 0750162 LF15M2 Water Hammer Arrester, 1 in Nominal, NPT End Style, 150 psi Pressure, 33 to 60 Fixture Unit, Import

CBPN:188536

UPC:098268526141

MPN:0750162

Price:
$106.41 / EA
Prop 65:

DESCRIPTION

WATTS® Water Hammer Arrester, Series: LF15M2, 1 in Nominal, NPT, 150 psi, 33 to 60 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-13/16 in L, Import

The noise from banging pipes is caused by shocks of high speed water flowing in the piping system when a fixture is suddenly closed. Sudden stoppage of the water (a non-compressible liquid) flowing at a given pressure and velocity causes a surge or spike of water and is called water hammer. When this occurs, a pressure wave travels back through the piping until it finds a point of relief. The LF15M2 and LF15M2S Water Hammer Arresters are designed to eliminate this effect. The LF15M2 and LF15M2S features Lead Free* construction to comply with Lead Free* requirements.

WATTS® 0750162 LF15M2 Water Hammer Arrester, 1 in Nominal, NPT End Style, 150 psi Pressure, 33 to 60 Fixture Unit, Import

CBPN:188536

MPN:0750162

UPC:098268526141

Price:
$106.41 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Water Hammer Arrester, Series: LF15M2, 1 in Nominal, NPT, 150 psi, 33 to 60 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-13/16 in L, Import

The noise from banging pipes is caused by shocks of high speed water flowing in the piping system when a fixture is suddenly closed. Sudden stoppage of the water (a non-compressible liquid) flowing at a given pressure and velocity causes a surge or spike of water and is called water hammer. When this occurs, a pressure wave travels back through the piping until it finds a point of relief. The LF15M2 and LF15M2S Water Hammer Arresters are designed to eliminate this effect. The LF15M2 and LF15M2S features Lead Free* construction to comply with Lead Free* requirements.

Specifications

BrandWATTS®
Body MaterialCopper
End StyleNPT
Nominal Size1 in
SeriesLF15M2
Temperature Rating33 to 180 deg F
Pressure Rating150 psi
Dimensions8-13/16 in L
Softgoods MaterialEPDM O-Ring
Fixture Unit Capacity33 to 60
Manufacturer NameWatts Water Technologies
ApplicationCommercial Applications
WarrantyLimited
Domestic/ImportImport
Country of OriginKR
Standards and ApprovalsANSI A112.26.1M | ASSE 1010 | cUPC Listed | IAPMO Listed | PDI WH-201 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • NPT solid hex brass adapter or solder end connection for easy installation
  • Approved for installation with no access panel required
  • May be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle
  • PDI Listed (PDI WH201)
  • Maintenance free piston is the only moving part
  • Factory air charged at 60 psi (4.2 bar)and is not rechargeable in the field and permanently sealed
  • Polypropylene piston
  • Lead free brass NPT hex adapter for easy installation

Standards

ANSI A112.26.1M|ASSE 1010|cUPC Listed|IAPMO Listed|PDI WH-201|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
