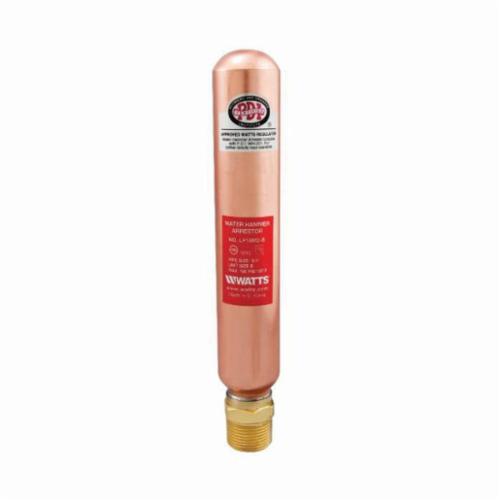

WATTS® 0750150 LF15M2 Water Hammer Arrester, 1/2 in Nominal, NPT End Style, 150 psi Pressure, 1 to 11 Fixture Unit, Import
CBPN:270382
UPC:098268499384
MPN:0750150
Price:
$44.96 / EA
DESCRIPTION
WATTS® Water Hammer Arrester, Series: LF15M2, 1/2 in Nominal, NPT, 150 psi, 1 to 11 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-1/4 in L, Import
The noise from banging pipes is caused by shocks of high speed water flowing in the piping system when a fixture is suddenly closed. Sudden stoppage of the water (a non-compressible liquid) flowing at a given pressure and velocity causes a surge or spike of water and is called water hammer. When this occurs, a pressure wave travels back through the piping until it finds a point of relief. The LF15M2 and LF15M2S Water Hammer Arresters are designed to eliminate this effect. The LF15M2 and LF15M2S features Lead Free* construction to comply with Lead Free* requirements.
WATTS® 0750150 LF15M2 Water Hammer Arrester, 1/2 in Nominal, NPT End Style, 150 psi Pressure, 1 to 11 Fixture Unit, Import
CBPN:270382
MPN:0750150
UPC:098268499384
Price:
$44.96 / EA
DESCRIPTION
WATTS® Water Hammer Arrester, Series: LF15M2, 1/2 in Nominal, NPT, 150 psi, 1 to 11 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-1/4 in L, Import
The noise from banging pipes is caused by shocks of high speed water flowing in the piping system when a fixture is suddenly closed. Sudden stoppage of the water (a non-compressible liquid) flowing at a given pressure and velocity causes a surge or spike of water and is called water hammer. When this occurs, a pressure wave travels back through the piping until it finds a point of relief. The LF15M2 and LF15M2S Water Hammer Arresters are designed to eliminate this effect. The LF15M2 and LF15M2S features Lead Free* construction to comply with Lead Free* requirements.
Specifications
Brand: WATTS®
Body Material: Copper
End Style: NPT
Nominal Size: 1/2 in
Series: LF15M2
Temperature Rating: 33 to 180 deg F
Pressure Rating: 150 psi
Dimensions: 8-1/4 in L
Softgoods Material: EPDM O-Ring
Fixture Unit Capacity: 1 to 11
Manufacturer Name: Watts Water Technologies
Application: Commercial Applications
Warranty: Limited
Domestic/Import: Import
Country of Origin: KR
Standards and Approvals: ANSI A112.26.1M | ASSE 1010 | cUPC Listed | IAPMO Listed | PDI WH-201
Item Features
- Lead-free solder end connection for easy installation
- NPT solid hex brass adapter or solder end connection for easy installation
- Approved for installation with no access panel required
- May be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle
- PDI Listed (PDI WH201)
- Maintenance free piston is the only moving part
- Air preload is 60 psi
- Factory air charged at 60 psi (4.2 bar) and is not rechargeable in the field
- Polypropylene piston
- Lead free brass threaded adapter
