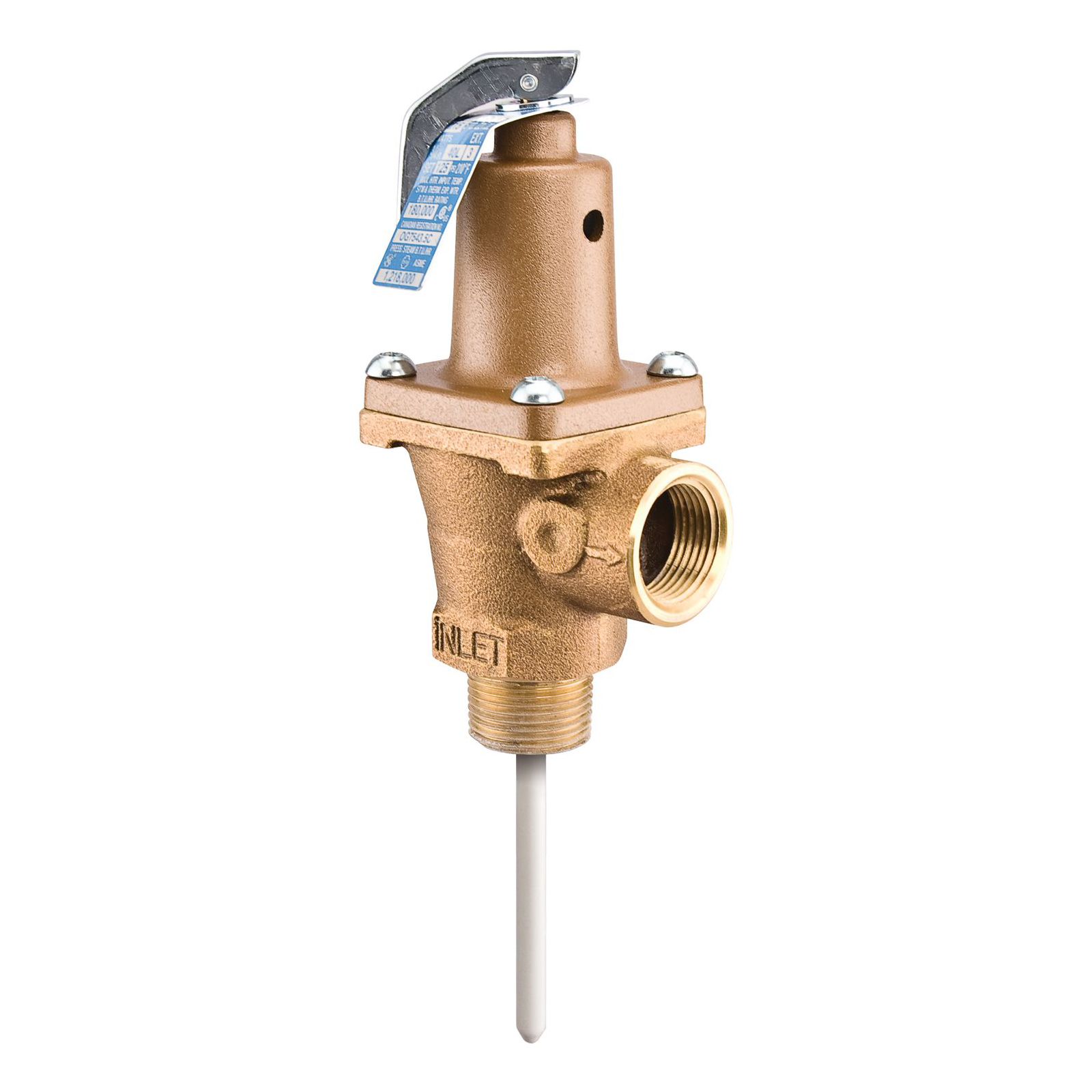

WATTS® 0556013 LF40L Automatic Reseating Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 125 psi Set Pressure, Brass Body, Domestic
CBPN: 190795
UPC:098268432480
MPN:0556013
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40L, 3/4 in Nominal, MNPT x FNPT, 125 psi Set Pressure, 210 deg F, Media: Water, Brass Body, 2-5/8 in W x 5-5/8 in H, Domestic
Series LF40L, LF40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a Lead Free* brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model LF40L has a short thermostat for installation directly in available tank tapings. Model LF40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series LF40L, LF40XL valves are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
WATTS® 0556013 LF40L Automatic Reseating Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 125 psi Set Pressure, Brass Body, Domestic
CBPN: 190795
MPN:0556013
UPC:098268432480
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40L, 3/4 in Nominal, MNPT x FNPT, 125 psi Set Pressure, 210 deg F, Media: Water, Brass Body, 2-5/8 in W x 5-5/8 in H, Domestic
Series LF40L, LF40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a Lead Free* brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model LF40L has a short thermostat for installation directly in available tank tapings. Model LF40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series LF40L, LF40XL valves are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Specifications
Standards
ANSI Z21.22|ASME Section IV|CSA Certified|MIL-V-136-12D|SA® Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- Lead free cast brass construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- Series 3/4 in LF40, LF140 and 1 in LF40 feature a unique thermostat with a special thermo-bonded coating
- Series 1 in LF140 are furnished with stainless steel thermostat tube
- Inquire with governing authorities for local installation requirements
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
