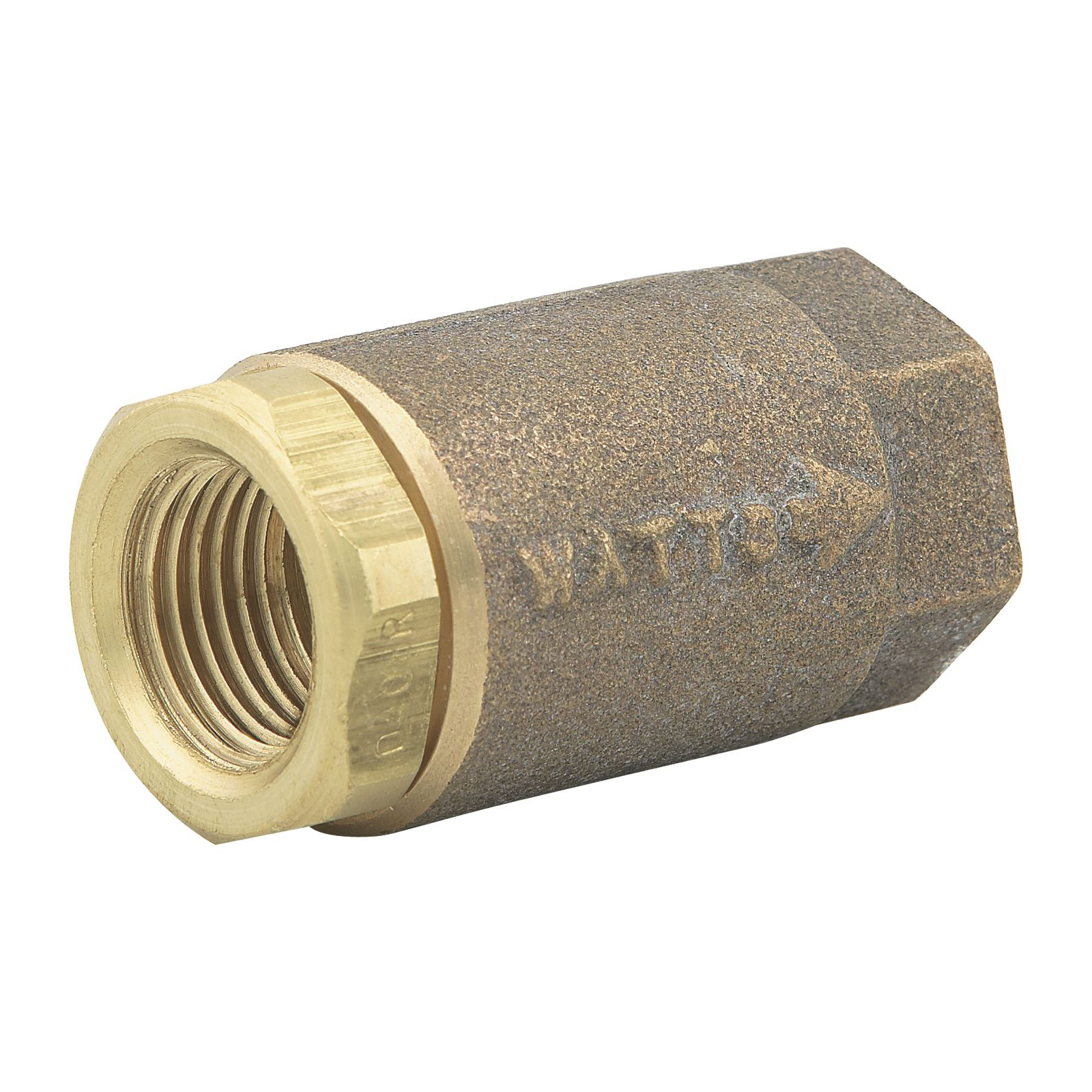

WATTS® Maxi-Flo® 0555177 Silent Check Valve, 1 in Nominal, FNPT End Style, Low Lead Compliance: Yes, Cast Copper Silicon Alloy Body, Domestic
CBPN: 167101
UPC:098268432879
MPN:0555177
Price:
$212.46 / EA
Prop 65:
DESCRIPTION
WATTS® Maxi-Flo® Silent Check Valve, 1 in Nominal, FNPT, 400 psi, -20 to 100 deg F, Low Lead Compliance: Yes, 3-1/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, PTFE Seat/Stainless Steel Spring Trim, Nitrile O-Ring, 2 in H, Domestic
Lead Free Brass Maxi-Flo® Check Valves feature a Lead Free cast copper silicon alloy body with NPT female threaded connections. These silent check valves have a low pressure drop and can be installed in a horizontal or vertical position. Maximum Pressure: 400psi (27.6 bar).
WATTS® Maxi-Flo® 0555177 Silent Check Valve, 1 in Nominal, FNPT End Style, Low Lead Compliance: Yes, Cast Copper Silicon Alloy Body, Domestic
CBPN: 167101
MPN:0555177
UPC:098268432879
Price:
$212.46 / EA
Prop 65:
DESCRIPTION
WATTS® Maxi-Flo® Silent Check Valve, 1 in Nominal, FNPT, 400 psi, -20 to 100 deg F, Low Lead Compliance: Yes, 3-1/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, PTFE Seat/Stainless Steel Spring Trim, Nitrile O-Ring, 2 in H, Domestic
Lead Free Brass Maxi-Flo® Check Valves feature a Lead Free cast copper silicon alloy body with NPT female threaded connections. These silent check valves have a low pressure drop and can be installed in a horizontal or vertical position. Maximum Pressure: 400psi (27.6 bar).
Specifications
Brand: WATTS®
Weight: 1.31 lbs
Nominal Size: 1 in
End Style: FNPT
Low Lead Compliance: Yes
Body Material: Cast Copper Silicon Alloy
Dimensions: 2 in H
Inlet to Outlet Length: 3-1/8 in
Manufacturer Name: Watts Water Technologies
Pressure Rating: 400 psi
Series: LF600
Softgoods Material: Nitrile O-Ring
Temperature Rating: -20 to 100 deg F
Trim Material: PTFE Seat/Stainless Steel Spring
Application: Commercial, Residential, Industrial and Solar
Warranty: 1 year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE Listed | FM Approved | NSF Approved | UL Listed | ULC Listed | USC Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Conical lead free check for full fluid flow
- Install in horizontal or vertical position with upward flow
- Low pressure drop equivalent to a swing check
- Stainless steel guide rod and spring
- 15 psi WSP pressure rating
