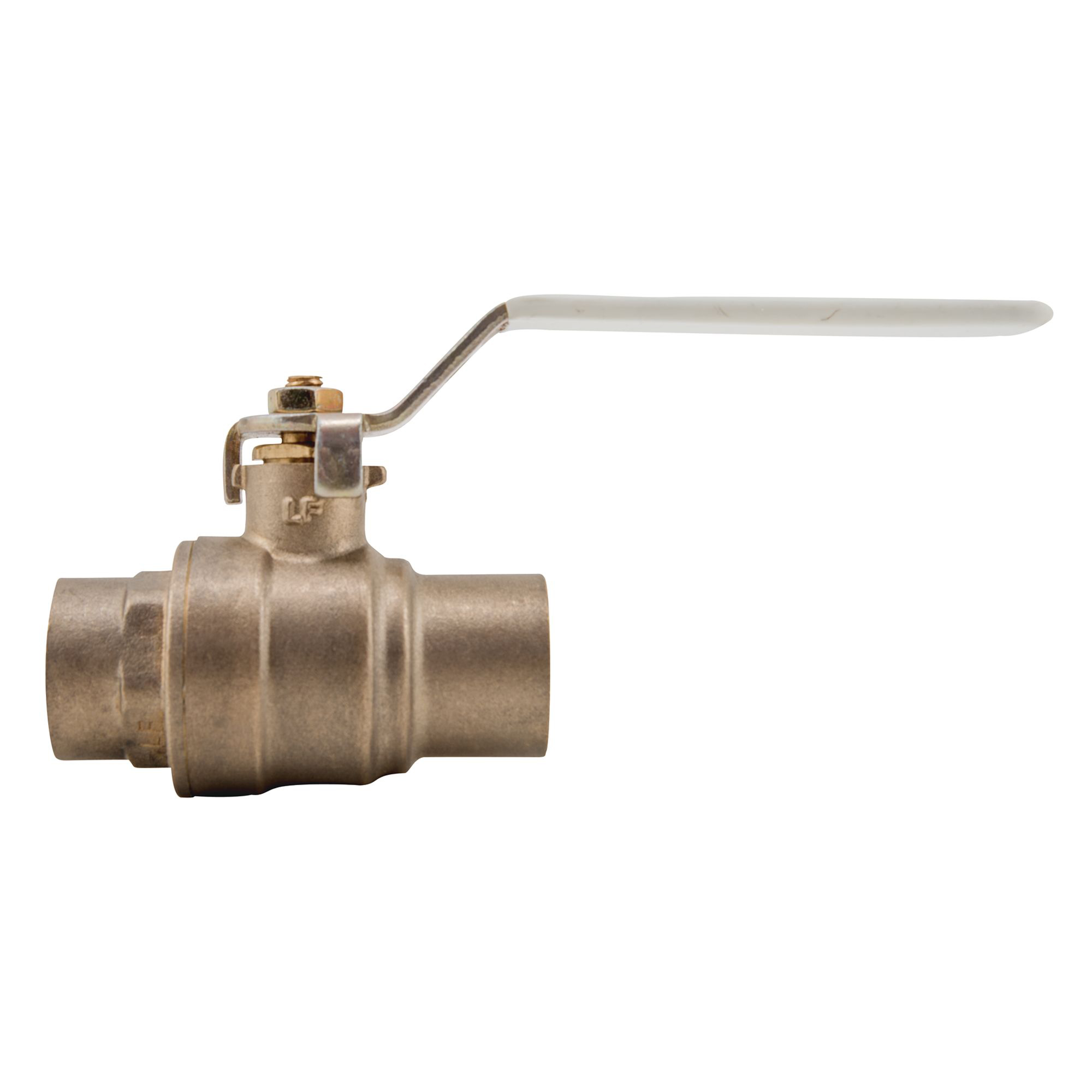

WATTS® 0555132 2-Piece Ball Valve, 1-1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, PTFE Softgoods, Import
CBPN: 202057
UPC:098268806120
MPN:0555132
DESCRIPTION
WATTS® Ball Valve, 2-Piece, 1-1/2 in Nominal, Solder, 600 psi WOG, -40 to 400 deg F, Full Port, 1-7/16 in Orifice, Brass Ball, 4-3/16 in Inlet to Outlet Length, 3 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE, Polished Chrome, Import
This 1-1/2 in 2-piece full port lead free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blow-out proof stem, virgin PTFE seat, thrust washer and adjustable stem packing seal, chrome plated lead free brass ball, lead free brass adapter and steel handle.
WATTS® 0555132 2-Piece Ball Valve, 1-1/2 in Nominal, Solder End Style, Lead Free Brass Body, Full Port, PTFE Softgoods, Import
CBPN: 202057
MPN:0555132
UPC:098268806120
DESCRIPTION
WATTS® Ball Valve, 2-Piece, 1-1/2 in Nominal, Solder, 600 psi WOG, -40 to 400 deg F, Full Port, 1-7/16 in Orifice, Brass Ball, 4-3/16 in Inlet to Outlet Length, 3 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE, Polished Chrome, Import
This 1-1/2 in 2-piece full port lead free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blow-out proof stem, virgin PTFE seat, thrust washer and adjustable stem packing seal, chrome plated lead free brass ball, lead free brass adapter and steel handle.
Specifications
Item Features
- Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
- Fluorocarbon elastomer stem O-Ring prevents stem leaks
- Adjustable stem packing gland provides longer service life
- Bottom loaded, blow-out proof stem
- 150 psi steam working pressure
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Chrome plated brass ball
- PTFE stem packing
