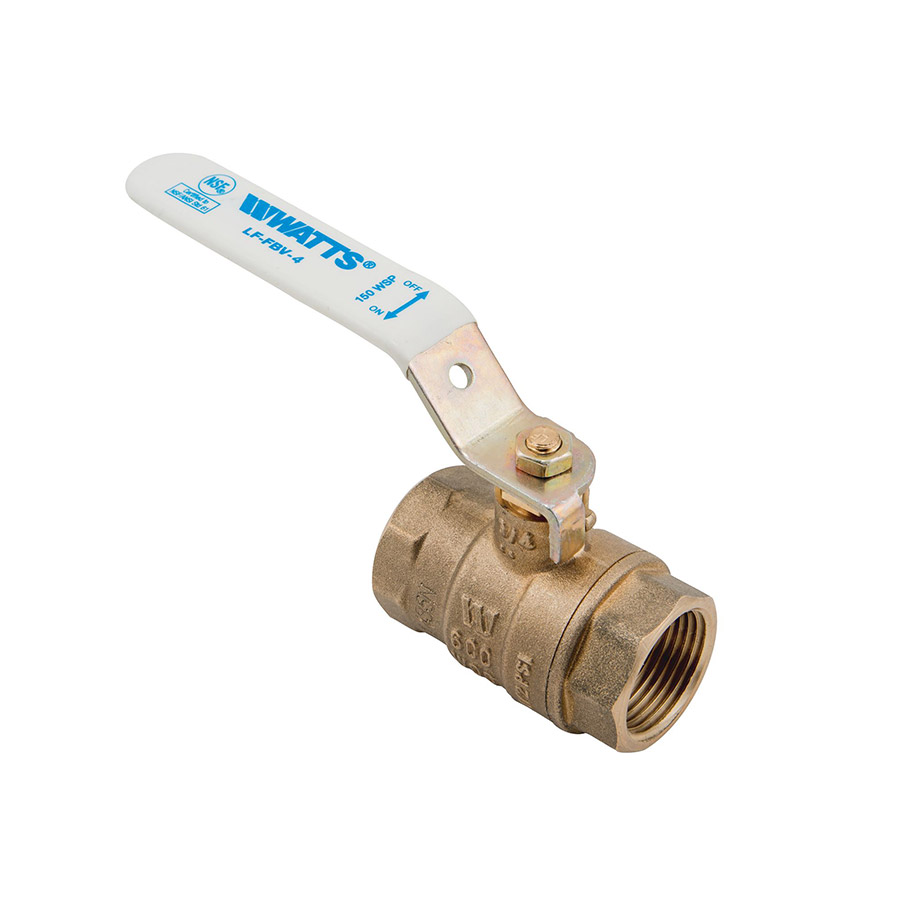

WATTS® 0555118 LFFBV-4 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, PTFE/FKM Softgoods, Import
CBPN: 214502
UPC:098268805444
MPN:0555118
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-4, 1/4 in Nominal, FNPT End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 7/16 in Orifice, Chrome Plated Brass Ball, 1-3/4 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Forged Copper Silicon Alloy Body, Machined Brass Stem and PTFE Seat Trim, PTFE/FKM Softgoods, Import
Series LFFBV-4, LFFBVS-4 2-Piece, Full Port, Brass Ball Valves are suitable for a full range of liquids and gases in residential and commercial applications. These valves feature an adjustable packing for longer service life, a bottom loaded blow-out proof stem for safety, a fluorocarbon elastomer stem O-ring to prevent stem leaking at installation, and are rated to 600psi WOG/150psi WSP 1/4in. - 2in. (8 - 50mm) and 400psi WOG/125psi WSP 2 1/2in. - 3in. (65- 80mm). The LFFBV-4, LFFBVS-4 features Lead Free construction to comply with Lead Free installation requirements.
WATTS® 0555118 LFFBV-4 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port, PTFE/FKM Softgoods, Import
CBPN: 214502
MPN:0555118
UPC:098268805444
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-4, 1/4 in Nominal, FNPT End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 7/16 in Orifice, Chrome Plated Brass Ball, 1-3/4 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Forged Copper Silicon Alloy Body, Machined Brass Stem and PTFE Seat Trim, PTFE/FKM Softgoods, Import
Series LFFBV-4, LFFBVS-4 2-Piece, Full Port, Brass Ball Valves are suitable for a full range of liquids and gases in residential and commercial applications. These valves feature an adjustable packing for longer service life, a bottom loaded blow-out proof stem for safety, a fluorocarbon elastomer stem O-ring to prevent stem leaking at installation, and are rated to 600psi WOG/150psi WSP 1/4in. - 2in. (8 - 50mm) and 400psi WOG/125psi WSP 2 1/2in. - 3in. (65- 80mm). The LFFBV-4, LFFBVS-4 features Lead Free construction to comply with Lead Free installation requirements.
Specifications
Item Features
- Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
- Fluorocarbon elastomer stem O-Ring prevents stem leaks
- Adjustable stem packing gland provides longer service life
- Bottom loaded blow-out proof stem
- Machined chrome plated Lead free brass ball
- Complies with MSS-SP-110
- Brass Packing nut
- Zinc plated carbon steel handle assembly
- Forged Lead free copper silicon alloy
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- This valve is designed to be soft soldered into lines without disassembly, using a low temperature solder to 420 deg f
- High temperature solders may damage the seat material
- PTFE stem packing and FKM O-ring
