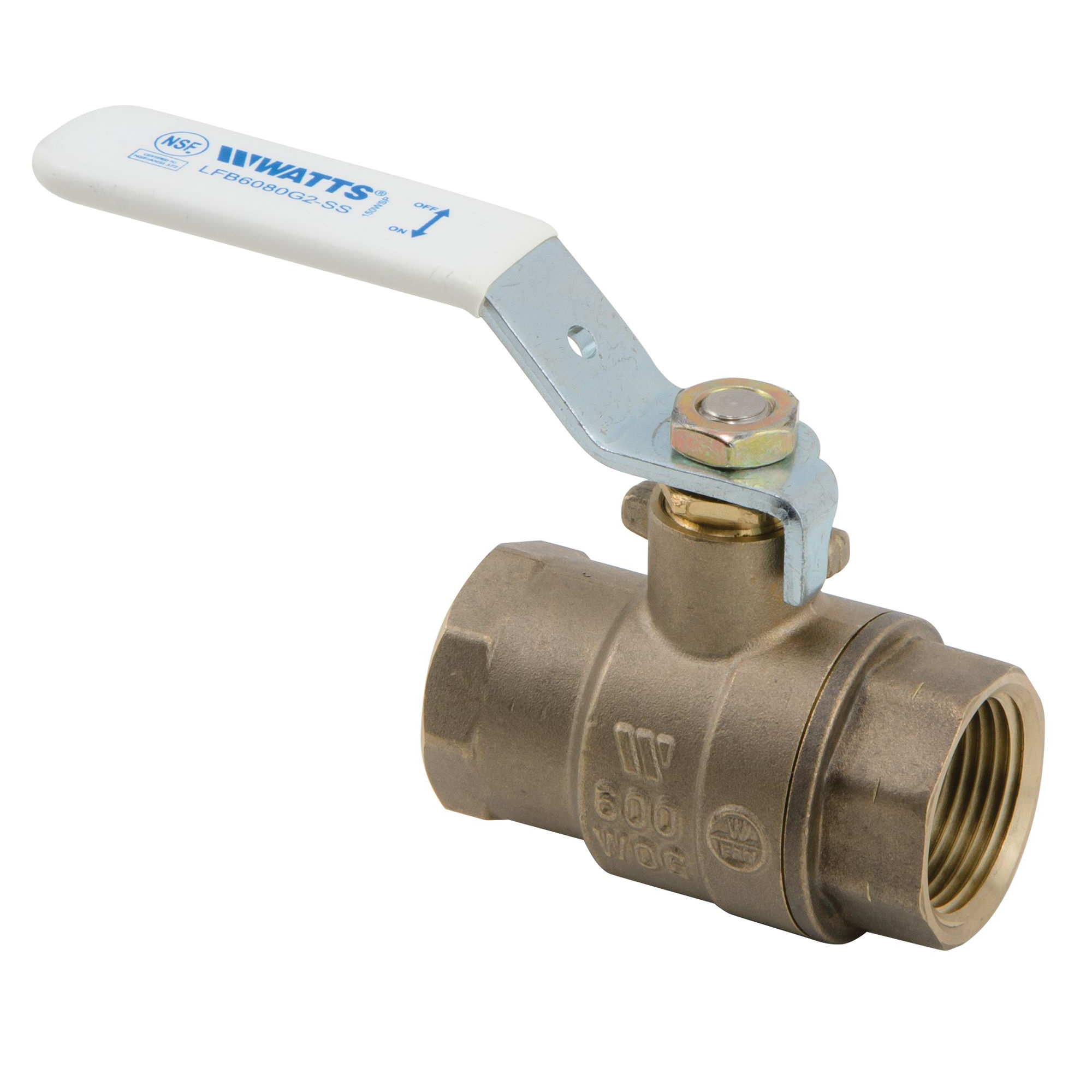

WATTS® 0450121 LFB6080G2 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Forged Bronze Body, Full Port, Virgin® PTFE/FKM Softgoods, Domestic
CBPN: 195265
UPC:098268763980
MPN:0450121
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFB6080G2, 1-1/2 in Nominal, FNPT, 600 psi WOG/150 psi WSP, 0 to 400 deg F, Full Port, Media: Liquid/Gas/Water, 1-1/2 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3-11/16 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Forged Bronze Body, 316 Stainless Steel/Virgin® PTFE Trim, Virgin® PTFE/FKM, Domestic
This 1-1/2 in lead free 2-piece full port ball valve with stainless steel ball and stem and NPT threaded end connections is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop, while the stainless steel ball and stem provide lasting service. It consists of Durafill® (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, and adjustable stem packing. This ball valve is rated for 600 WOG/150 WSP.
WATTS® 0450121 LFB6080G2 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Forged Bronze Body, Full Port, Virgin® PTFE/FKM Softgoods, Domestic
CBPN: 195265
MPN:0450121
UPC:098268763980
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFB6080G2, 1-1/2 in Nominal, FNPT, 600 psi WOG/150 psi WSP, 0 to 400 deg F, Full Port, Media: Liquid/Gas/Water, 1-1/2 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3-11/16 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Forged Bronze Body, 316 Stainless Steel/Virgin® PTFE Trim, Virgin® PTFE/FKM, Domestic
This 1-1/2 in lead free 2-piece full port ball valve with stainless steel ball and stem and NPT threaded end connections is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop, while the stainless steel ball and stem provide lasting service. It consists of Durafill® (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, and adjustable stem packing. This ball valve is rated for 600 WOG/150 WSP.
Specifications
Standards
BAA Compliant|NSF/ANSI 61-G|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govItem Features
- Minimal pressure drop due to large ports
- Blowout proof, pressure retaining stem
- White handles for easy lead free identification
- 100% Factory tested in USA
- Virgin® PTFE adjustable stem packing gland/thrust washer/FKM O-Ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 316 stainless steel stem shaft/Virgin® PTFE seat
