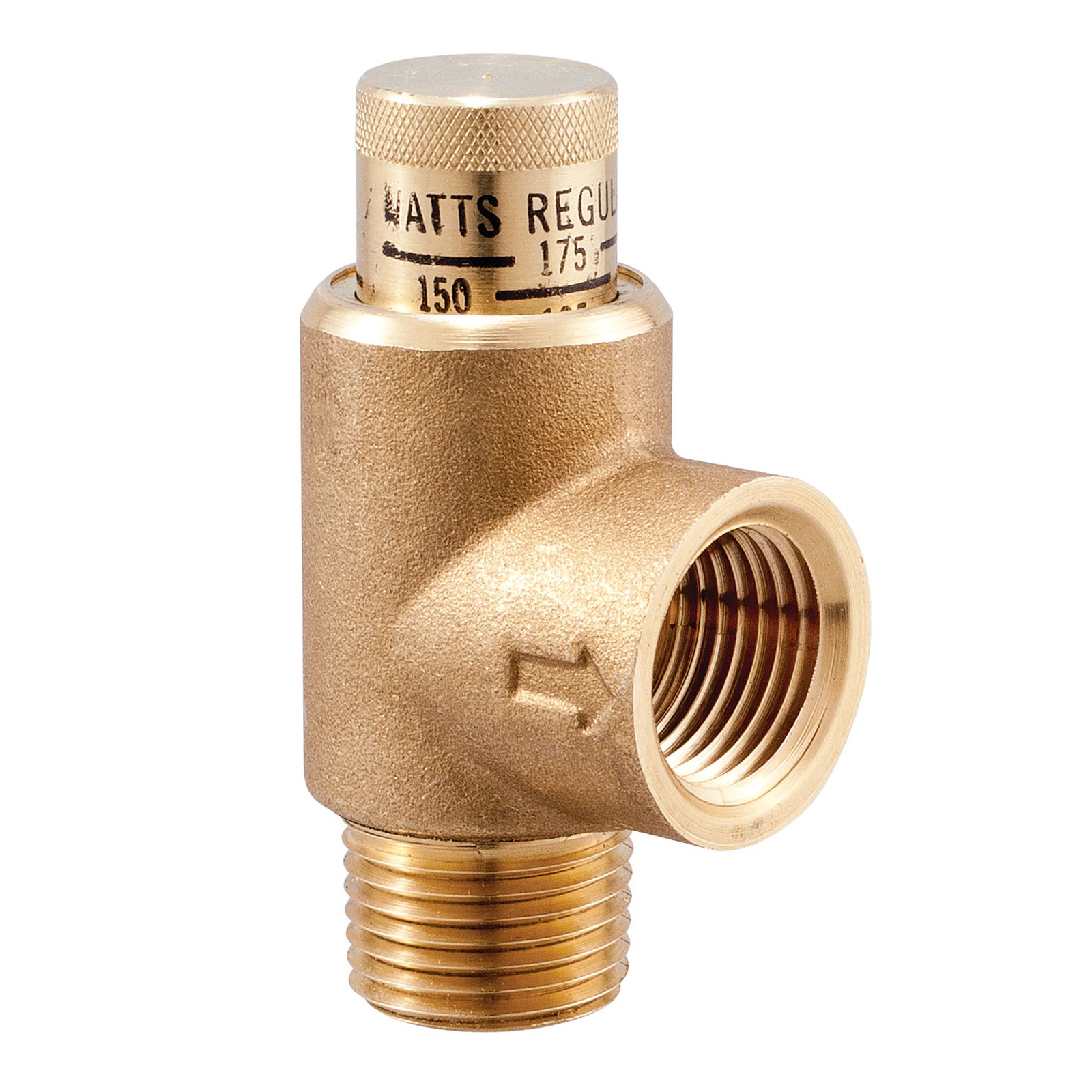

WATTS® 0372273 530 Calibrated Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 100-300 psi Adjustable Set Pressure, Brass Body, Domestic
CBPN: 265336
UPC:098268582482
MPN:0372273
DESCRIPTION
WATTS® Pressure Relief Valve, Calibrated, Series: 530, 3/4 in Nominal, MNPT x FNPT End Style, 100-300 psi Adjustable Set Pressure, 180 deg F, Brass Body, Buna-N® O-Ring Softgoods, 1-5/8 in W x 3 in H Dimensions, Domestic/Import: Domestic
This 3/4 in calibrated pressure relief valve is used in commercial, residential and industrial applications to protect against excessive pressure in systems containing water, oil, or air. It consists of a bronze body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, brass bonnet, Buna-N disc, and Buna-N O-ring. It has a calibrated adjustment feature for setting the valve to the required relief pressure, and is ideal for by-pass thermal expansion pressure relief (not ASME approved). It is for use in fire protection systems. The maximum pressure is 300 PSI (20.67 bar). The adjustable pressure range is 100 to 300 PSI (3.45 to 12.06 bar).
WATTS® 0372273 530 Calibrated Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 100-300 psi Adjustable Set Pressure, Brass Body, Domestic
CBPN: 265336
MPN:0372273
UPC:098268582482
DESCRIPTION
WATTS® Pressure Relief Valve, Calibrated, Series: 530, 3/4 in Nominal, MNPT x FNPT End Style, 100-300 psi Adjustable Set Pressure, 180 deg F, Brass Body, Buna-N® O-Ring Softgoods, 1-5/8 in W x 3 in H Dimensions, Domestic/Import: Domestic
This 3/4 in calibrated pressure relief valve is used in commercial, residential and industrial applications to protect against excessive pressure in systems containing water, oil, or air. It consists of a bronze body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, brass bonnet, Buna-N disc, and Buna-N O-ring. It has a calibrated adjustment feature for setting the valve to the required relief pressure, and is ideal for by-pass thermal expansion pressure relief (not ASME approved). It is for use in fire protection systems. The maximum pressure is 300 PSI (20.67 bar). The adjustable pressure range is 100 to 300 PSI (3.45 to 12.06 bar).
Specifications
Standards
ASSE Listed|FM Approved|NSF Approved|UL Listed|ULC Listed|USC Certified|WQA Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- Designed for protection against excessive pressure build up
- 50 to 175 psi adjustable pressure
- Calibrated adjustment feature for setting valve to relief pressure required
- All stainless steel spring
