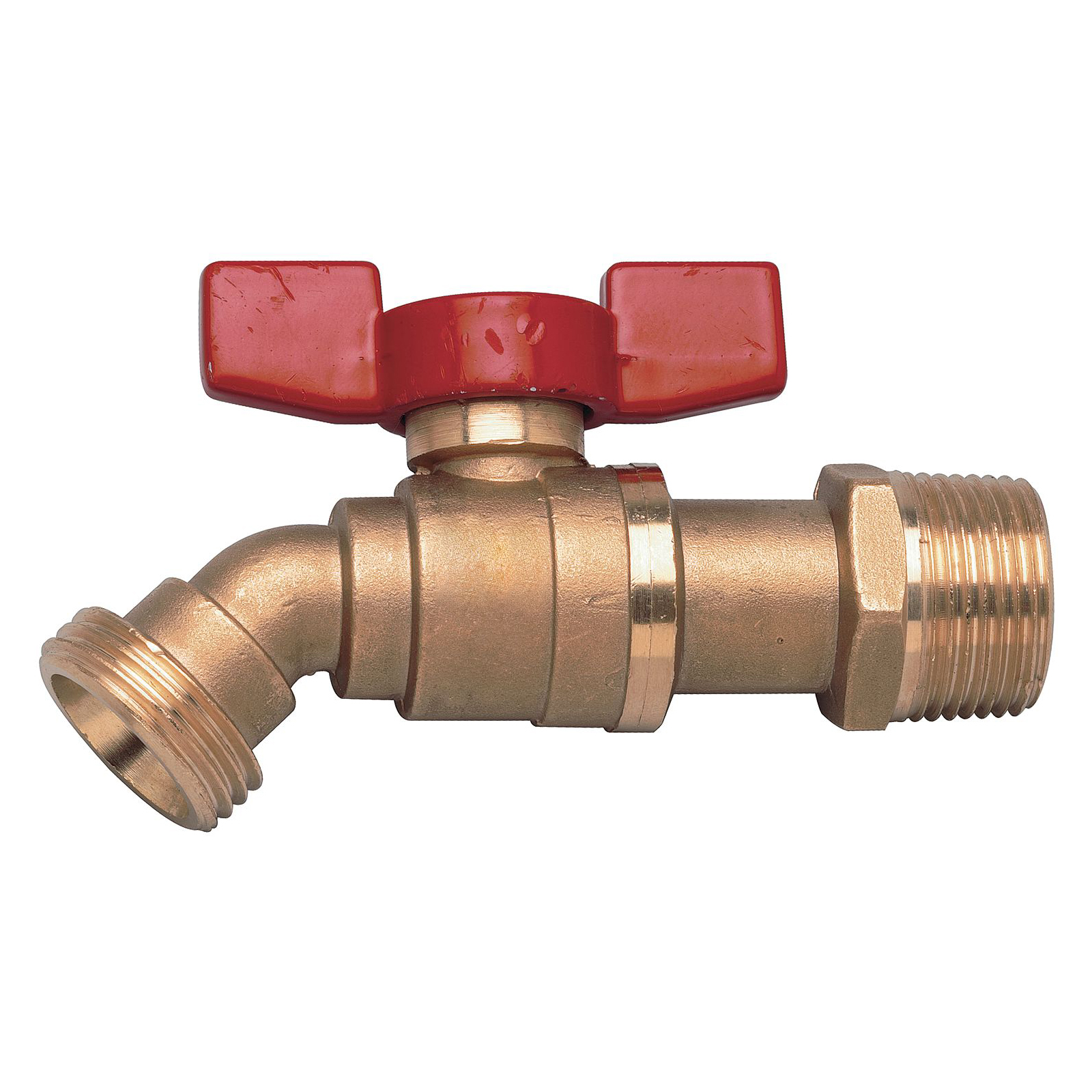

WATTS® 0123632 LFBD-QT Series Quarter-Turn Boiler Drain, 3/4 in Nominal, Male IPS x Hose End Style, 200 psi Pressure, Forged Brass Body, Import
CBPN:177788
UPC:098268701531
MPN:0123632
Price:
$10.53 / EA
Prop 65:
DESCRIPTION
WATTS® Boiler Drain, Quarter-Turn, Series: LFBD-QT Series, 3/4 in Nominal, Male IPS x Hose End Style, 200 psi Pressure, 250 deg F, T-Handle Actuator, 4-1/8 in Inlet to Outlet Length, 2-7/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
Series LFBD-QT quarter-turn boiler drains offer an innovative alternative to old-fashion multi-turn type boiler drains. These drains were developed to provide the speed and convenience of quarter-turn ball valve performance for boiler drain or sill cock applications. For durability and extended length service, Series LFBD-QT uses a rugged forged brass body, adjustable PTFE stem packing and rugged aluminum tee handles. For added utility, the 1/2in. (15mm) model features a dual-pattern combination threaded and solder end by 3/4in. (20mm) hose connection. The 3/4in. (20mm) model is available in either solder or threaded ends. The LFBD-QT features Lead Free* construction to comply with Lead Free* installation requirements.
WATTS® 0123632 LFBD-QT Series Quarter-Turn Boiler Drain, 3/4 in Nominal, Male IPS x Hose End Style, 200 psi Pressure, Forged Brass Body, Import
CBPN:177788
MPN:0123632
UPC:098268701531
Price:
$10.53 / EA
Prop 65:
DESCRIPTION
WATTS® Boiler Drain, Quarter-Turn, Series: LFBD-QT Series, 3/4 in Nominal, Male IPS x Hose End Style, 200 psi Pressure, 250 deg F, T-Handle Actuator, 4-1/8 in Inlet to Outlet Length, 2-7/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
Series LFBD-QT quarter-turn boiler drains offer an innovative alternative to old-fashion multi-turn type boiler drains. These drains were developed to provide the speed and convenience of quarter-turn ball valve performance for boiler drain or sill cock applications. For durability and extended length service, Series LFBD-QT uses a rugged forged brass body, adjustable PTFE stem packing and rugged aluminum tee handles. For added utility, the 1/2in. (15mm) model features a dual-pattern combination threaded and solder end by 3/4in. (20mm) hose connection. The 3/4in. (20mm) model is available in either solder or threaded ends. The LFBD-QT features Lead Free* construction to comply with Lead Free* installation requirements.
Specifications
Brand: WATTS®
Actuator Type: T-Handle
Body Material: Forged Brass
End Style: Male IPS x Hose
Nominal Size: 3/4 in
Series: LFBD-QT Series
Temperature Rating: 250 deg F
Type: Quarter-Turn
Pressure Rating: 200 psi
Softgoods Material: PTFE
Inlet to Outlet Length: 4-1/8 in
Manufacturer Name: Watts Water Technologies
Top to Inlet Center: 2-7/16 in
Application: For boiler drain or sill cock applications
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Angle pattern
- Dual inlet connection
- Hose thread outlet
- Quarter-turn ball valve design
- Positive shut off
- Rugged aluminum tee-handle design
- Adjustable PTFE stem packing
- Aluminum tee handle
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Uses a rugged forged brass body
