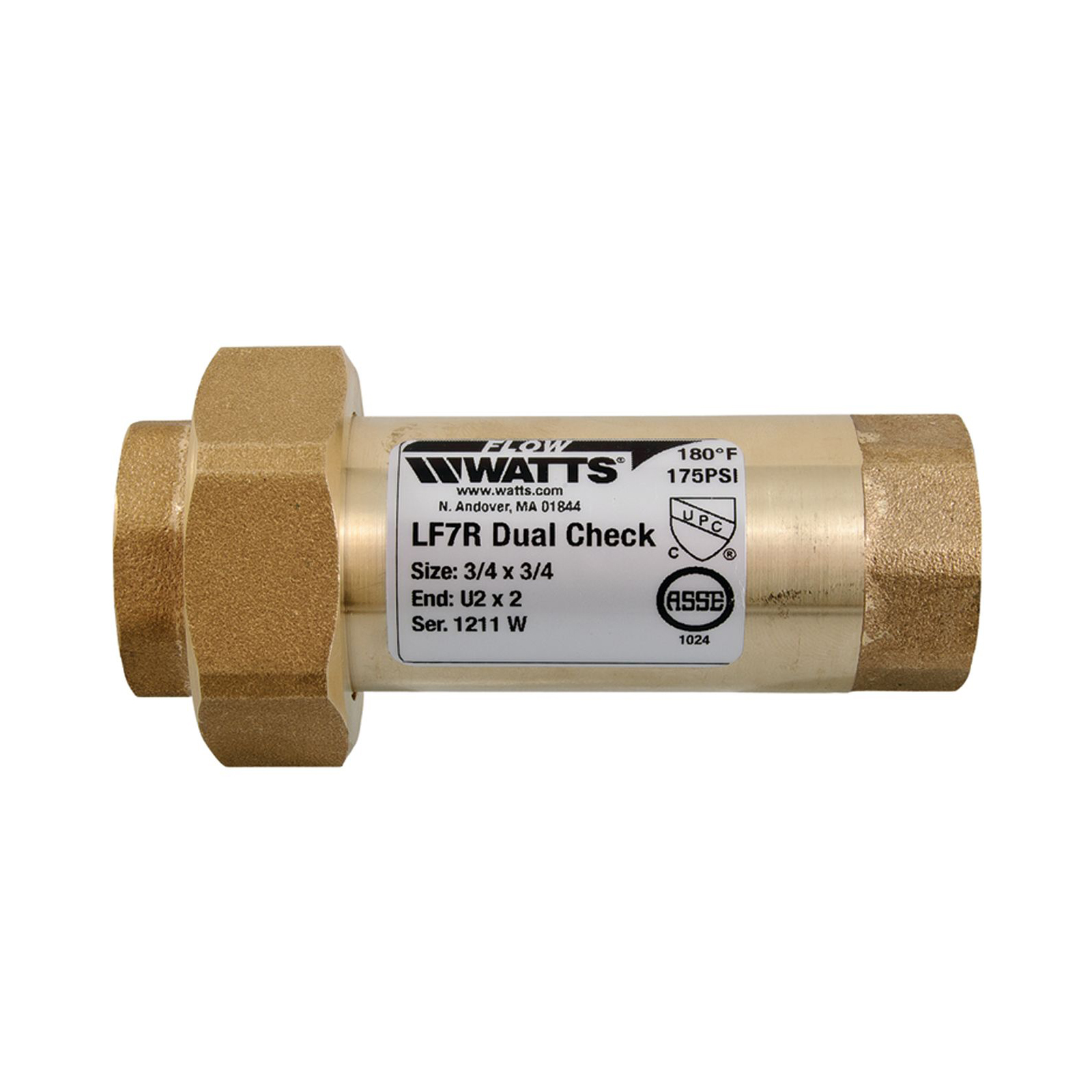

WATTS® 0072204 LF7RU2-2 Dual Check Valve, 3/4 in Nominal, FNPT End Style, Low Lead Compliance: Yes, Copper Silicon Alloy Body, Domestic
CBPN:172439
UPC:098268533583
MPN:0072204
Price:
$67.14 / EA
Prop 65:
DESCRIPTION
WATTS® Dual Check Valve, Series: LF7RU2-2, 3/4 in Nominal, FNPT, 175 psi, 33 to 180 deg F, Low Lead Compliance: Yes, Media: Water, 3-5/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Stainless Steel Spring/Santoprene Disc Trim, EPDM Seal, 1-7/8 in H, Domestic
Series LF7R Lead Free* Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a Lead Free* cast copper silicon alloy body construction, with two compact replaceable plastic check modules, and stainless steel springs. Series LF7R is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69 kpa) Maximum Working Pressure: 175psi (12 bar).
WATTS® 0072204 LF7RU2-2 Dual Check Valve, 3/4 in Nominal, FNPT End Style, Low Lead Compliance: Yes, Copper Silicon Alloy Body, Domestic
CBPN:172439
MPN:0072204
UPC:098268533583
Price:
$67.14 / EA
Prop 65:
DESCRIPTION
WATTS® Dual Check Valve, Series: LF7RU2-2, 3/4 in Nominal, FNPT, 175 psi, 33 to 180 deg F, Low Lead Compliance: Yes, Media: Water, 3-5/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Stainless Steel Spring/Santoprene Disc Trim, EPDM Seal, 1-7/8 in H, Domestic
Series LF7R Lead Free* Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a Lead Free* cast copper silicon alloy body construction, with two compact replaceable plastic check modules, and stainless steel springs. Series LF7R is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69 kpa) Maximum Working Pressure: 175psi (12 bar).
Specifications
Brand: WATTS®
Body Material: Copper Silicon Alloy
End Style: FNPT
Nominal Size: 3/4 in
Series: LF7R, LF7RU2-2
Temperature Rating: 33 to 180 deg F
Pressure Rating: 175 psi
Dimensions: 1-7/8 in H
Media: Water
Low Lead Compliance: Yes
Softgoods Material: EPDM Seal
Trim Material: Stainless Steel Spring/Santoprene Disc
Inlet to Outlet Length: 3-5/8 in
Manufacturer Name: Watts Water Technologies
Application: Light Commercial and Residential
Warranty: 1 year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI/ASSE 1024 | cCSAus B64.6 | NSF Approved | cUPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Lead-free brass body for durability
- Compact design
- Can be installed in the vertical or horizontal position
