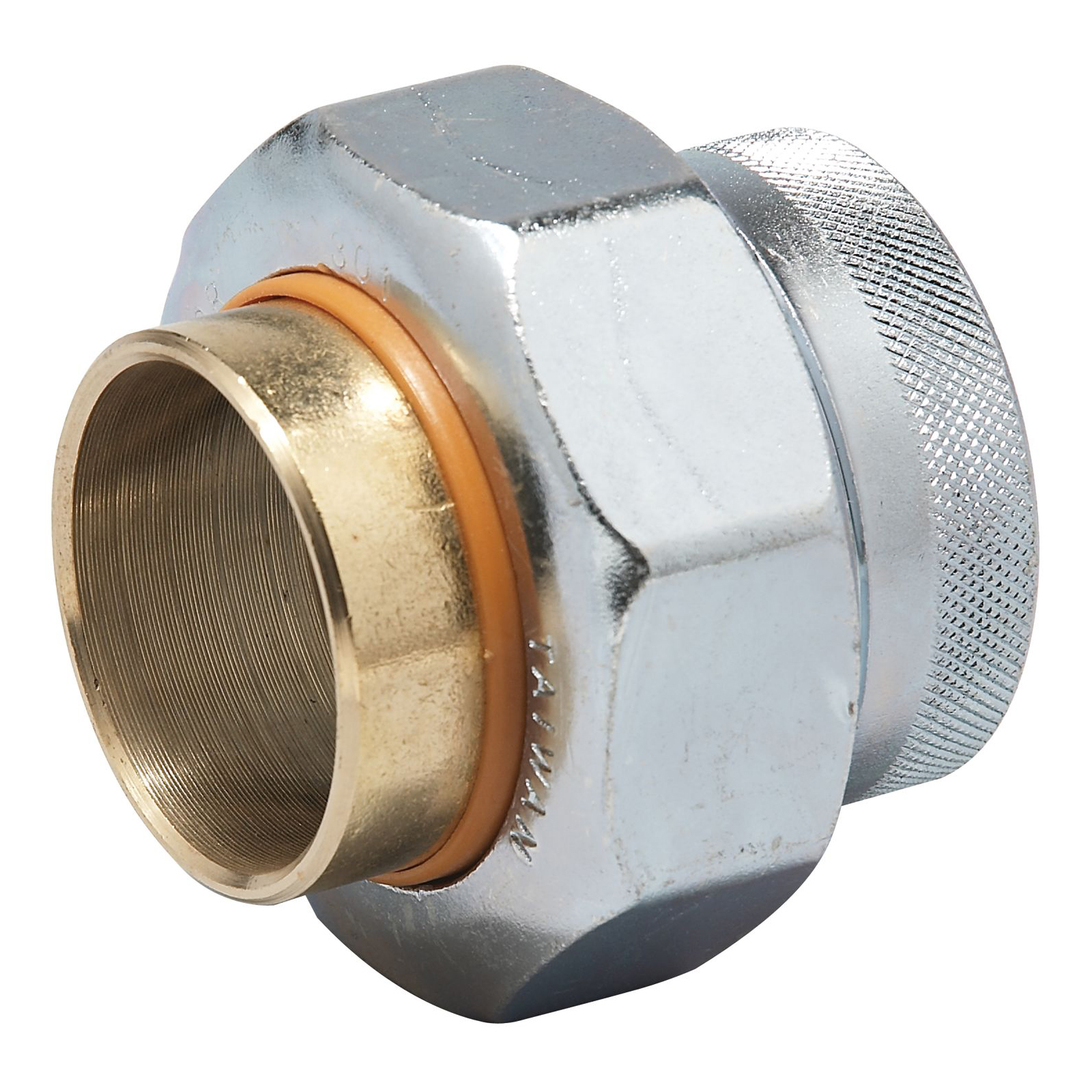

WATTS® 0009865 Dielectric Union, 3/4 in Nominal, FNPT x Solder End Style, Brass, Domestic
CBPN:25568
UPC:098268430202
MPN:0009865
Price:
$23.73 / EA
Prop 65:
DESCRIPTION
WATTS® Dielectric Union, 3/4 in Nominal, FNPT x Solder, 1-5/8 in Hex, 2-1/8 in Length, 250 psi, Brass, 180 deg F, Domestic
Series LF3001A Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
WATTS® 0009865 Dielectric Union, 3/4 in Nominal, FNPT x Solder End Style, Brass, Domestic
CBPN:25568
MPN:0009865
UPC:098268430202
Price:
$23.73 / EA
Prop 65:
DESCRIPTION
WATTS® Dielectric Union, 3/4 in Nominal, FNPT x Solder, 1-5/8 in Hex, 2-1/8 in Length, 250 psi, Brass, 180 deg F, Domestic
Series LF3001A Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
Specifications
Brand: WATTS®
Weight: 0.42lbs
End Style: FNPT x Solder
Length: 2-1/8 in
Material: Brass
Nominal Size: 3/4 in
Series: LF3001A
Temperature Rating: 180 deg F
Pressure Rating: 250 psi
Hex Size: 1-5/8 in
Manufacturer Name: Watts Water Technologies
Application: Hot Water Storage Tanks, Water and Air Conditioners, Processing Tanks, Steam, Gas and Water Piping
Warranty: 1 year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA 2009 | BAA 1933 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Meets federal specifications for tensile strength and thread end connections
- Female iron pipe thread to solder connection
- Designed and manufactured to the highest quality standards
- Factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Steel adapter and nut
- Polysulfone insulator
- Buna-N gasket
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
